Left Front Valve Block Function Test

Connect a jumper wire ECU between ECU connector terminals No. 2, 16 and 35. See Figure . Depress brake pedal. Left front wheel should be locked up. Turn ignition on. Left front wheel should rotate. If wheel does not rotate, replace hydraulic modulator. Turn ignition off.

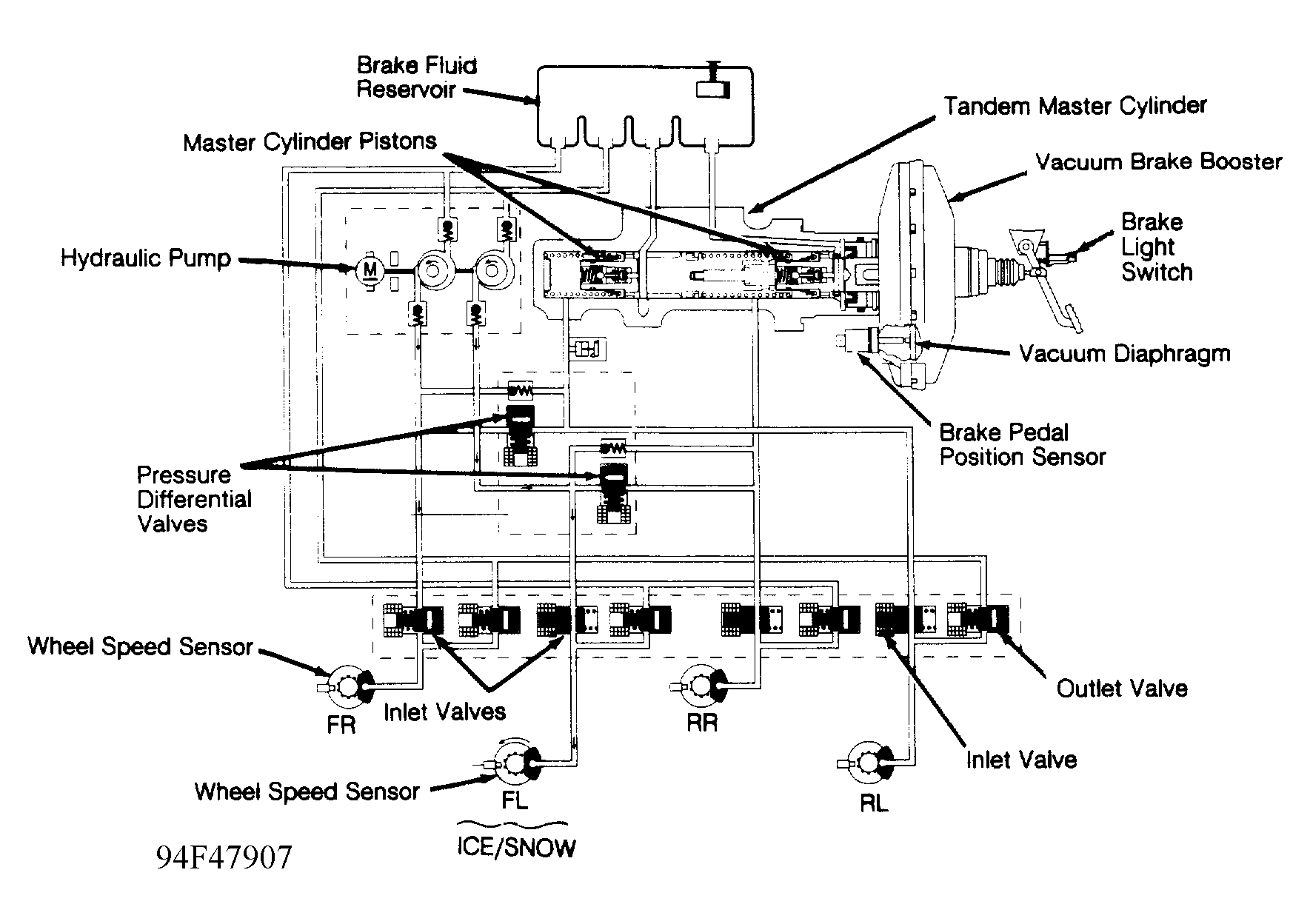

Fig 1: Schematic Of ABS & Traction Control (V6)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
