Surface Variation
Cylinder Head, Checking For Distortion

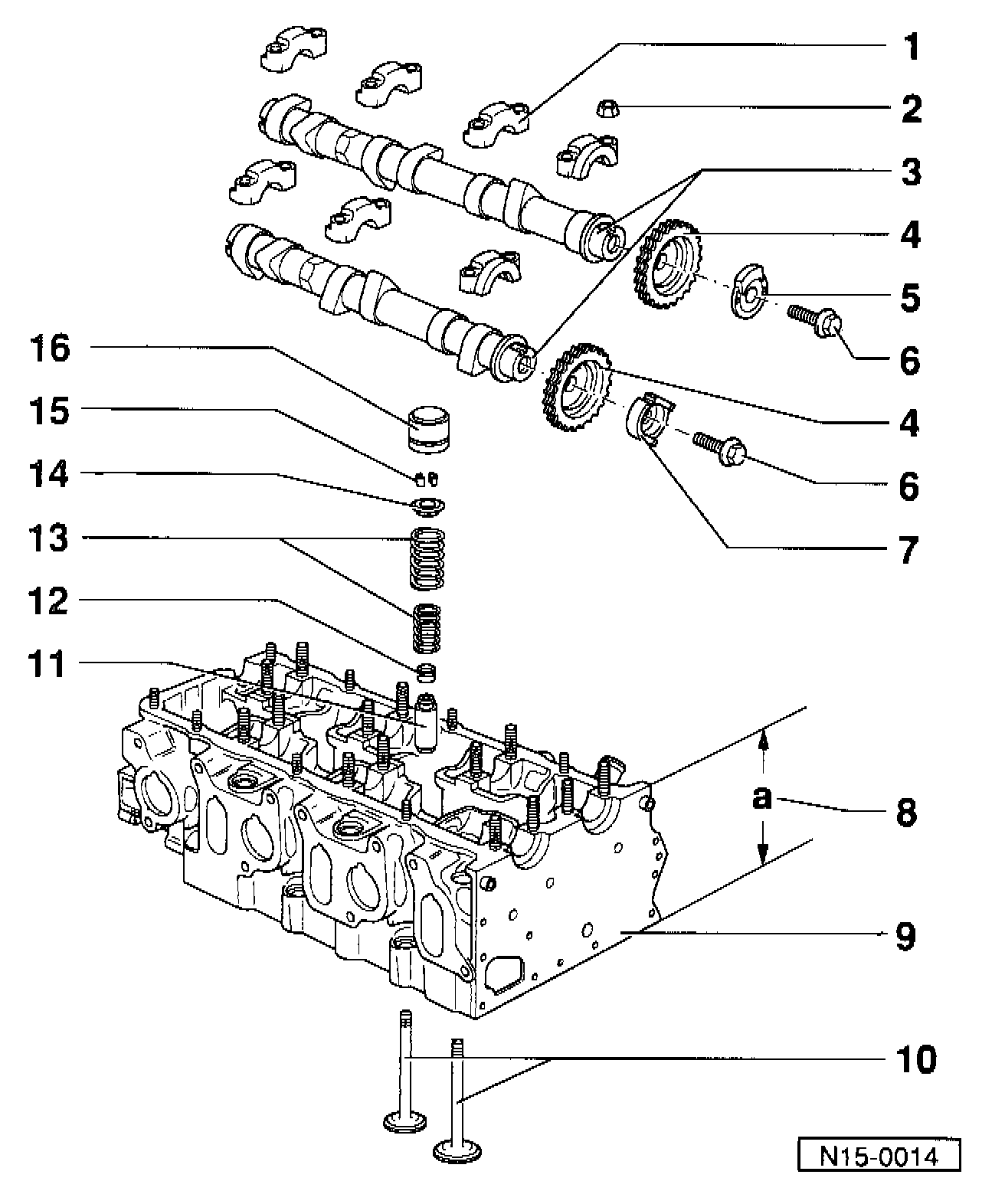

Fig. 1:
- Max. permissible distortion 0.1 mm
8 - Cylinder head minimum height
Minimum height: 139.5 mm
Cylinder Head, Checking For Distortion
- Max. permissible distortion 0.1 mm
8 - Cylinder head minimum height
Minimum height: 139.5 mm
