Ignition System: Locations

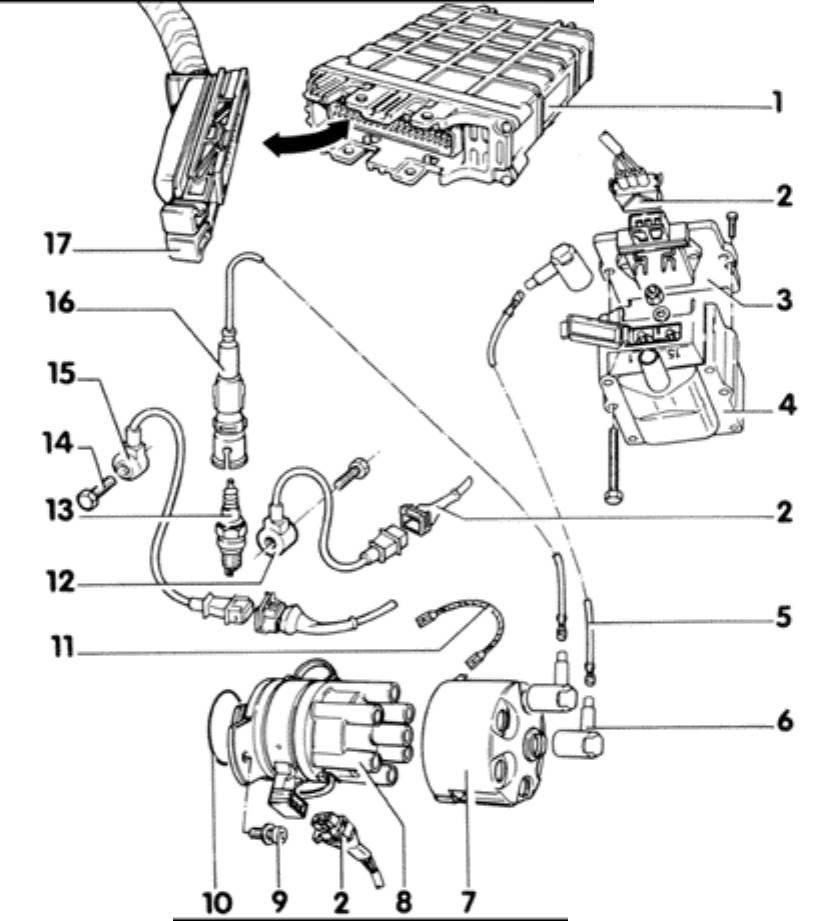

Motronic Fuel and Ignition system, component layout (Ignition portion only)






1. Engine Control Module (J 220)*
2. Harness connector for ignition coil
3. Ignition coil power output stage (N 157)
4. Ignition coil (N 152)
5. Ignition wire
6. RFI suppression connector
7. RFI suppression cap
8. Distributor cap
9. 10 Nm (7 ft lb)
10. O-ring
11. Ground connector
12. Knock Sensor II (G 66)*
13. Spark plug
14. 20 Nm (15 ft lb)
15. Knock Sensor I (G 61)*
16. Spark plug connector
17. Harness connector for Engine Control Module
