Coolant Temperature Sensor Resistance, Checking

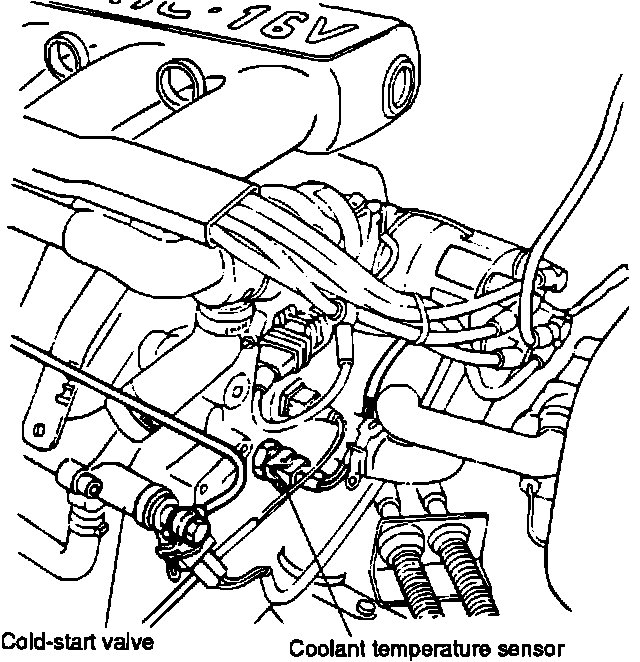

Component Locations:

1. With the ignition "OFF", remove the electrical connector at the coolant temperature sensor.
2. With a suitable volt/ohm meter, measure the resistance between the two terminals of the coolant temperature sensor.





^ Refer to the temperature sensor graph for the correct measurement.

If the correct measurement is not obtained replace the coolant temperature sensor.
