Pinout Values and Diagnostic Parameters

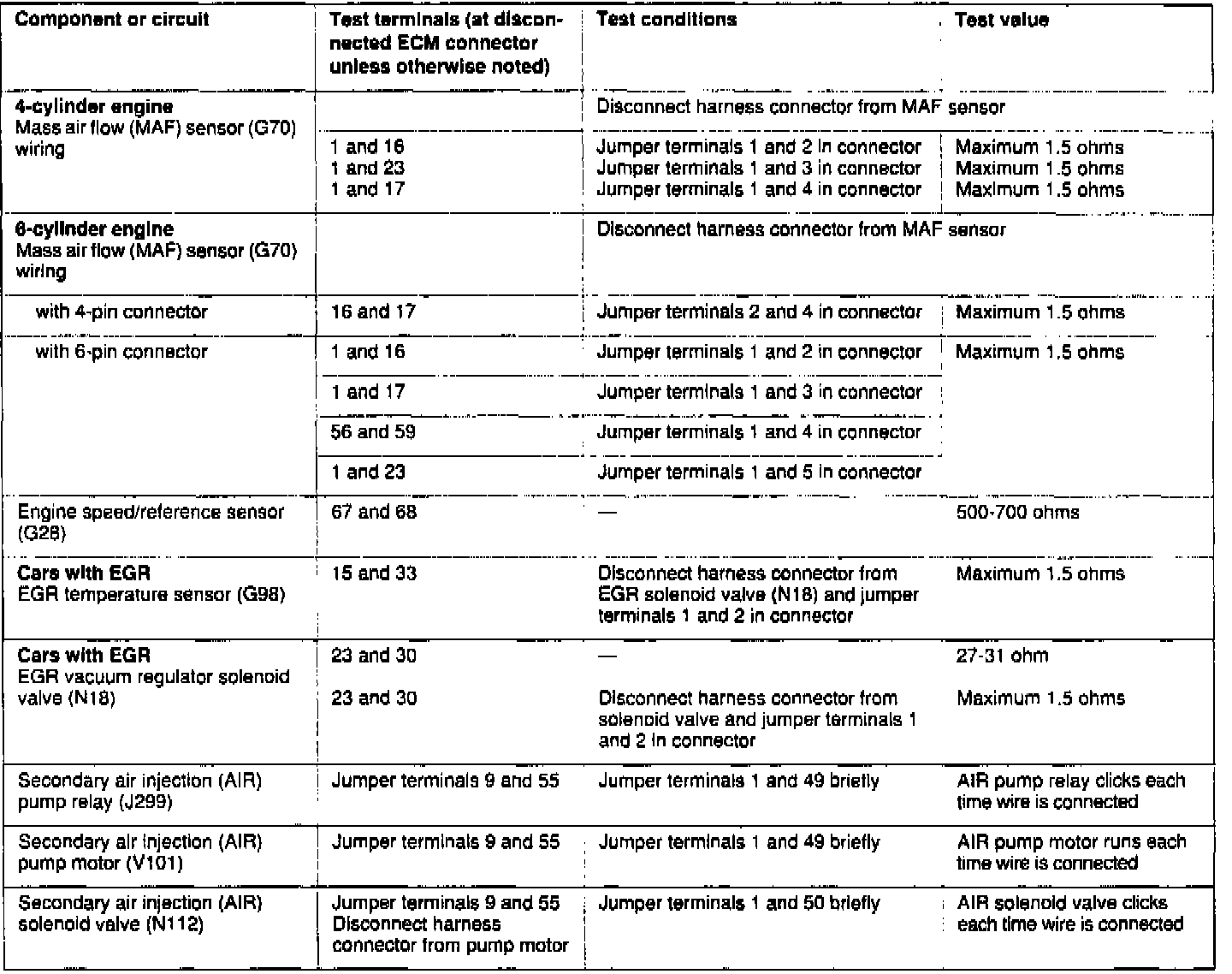

Chart 1 of 4

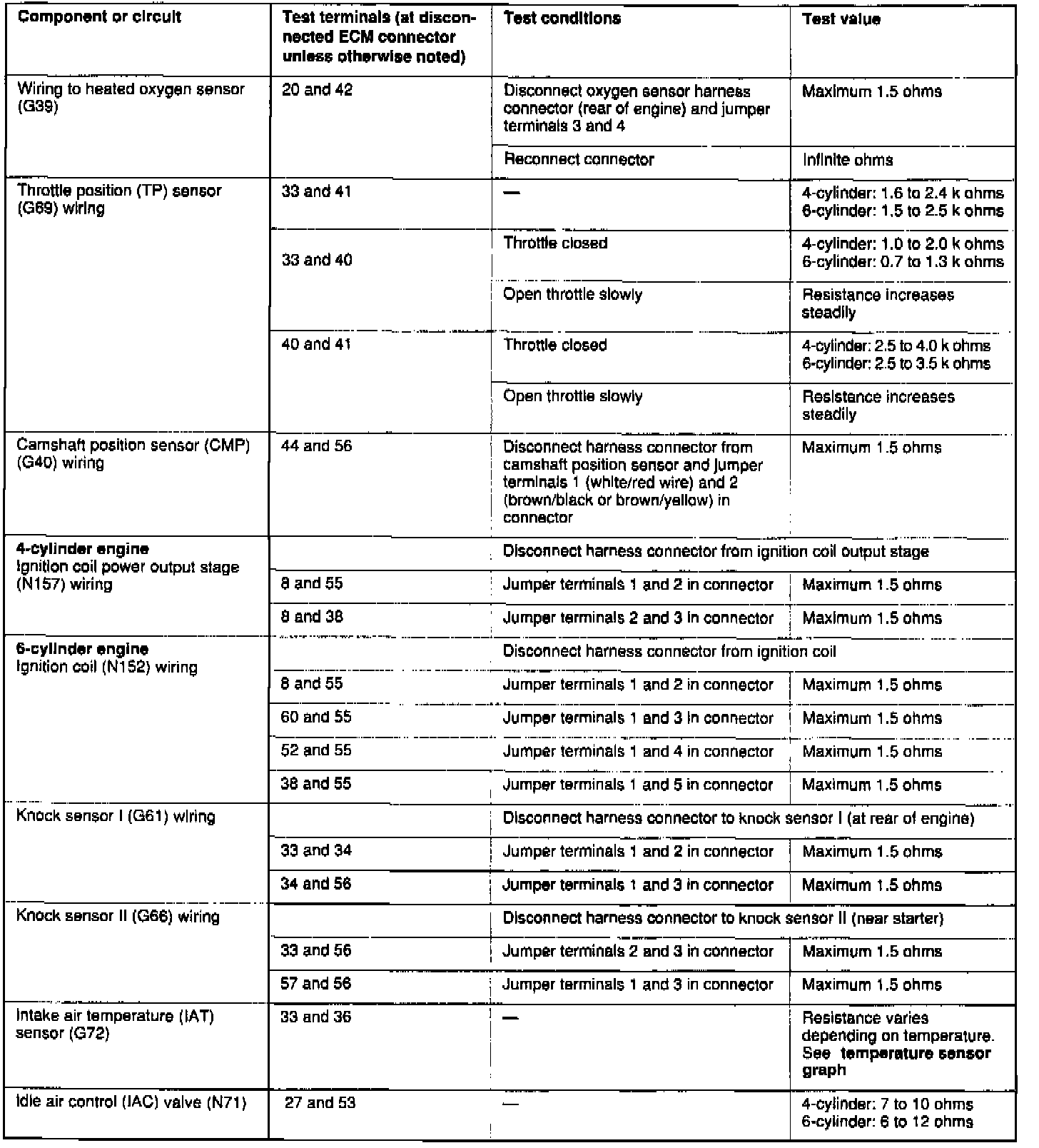

Chart 2 of 4

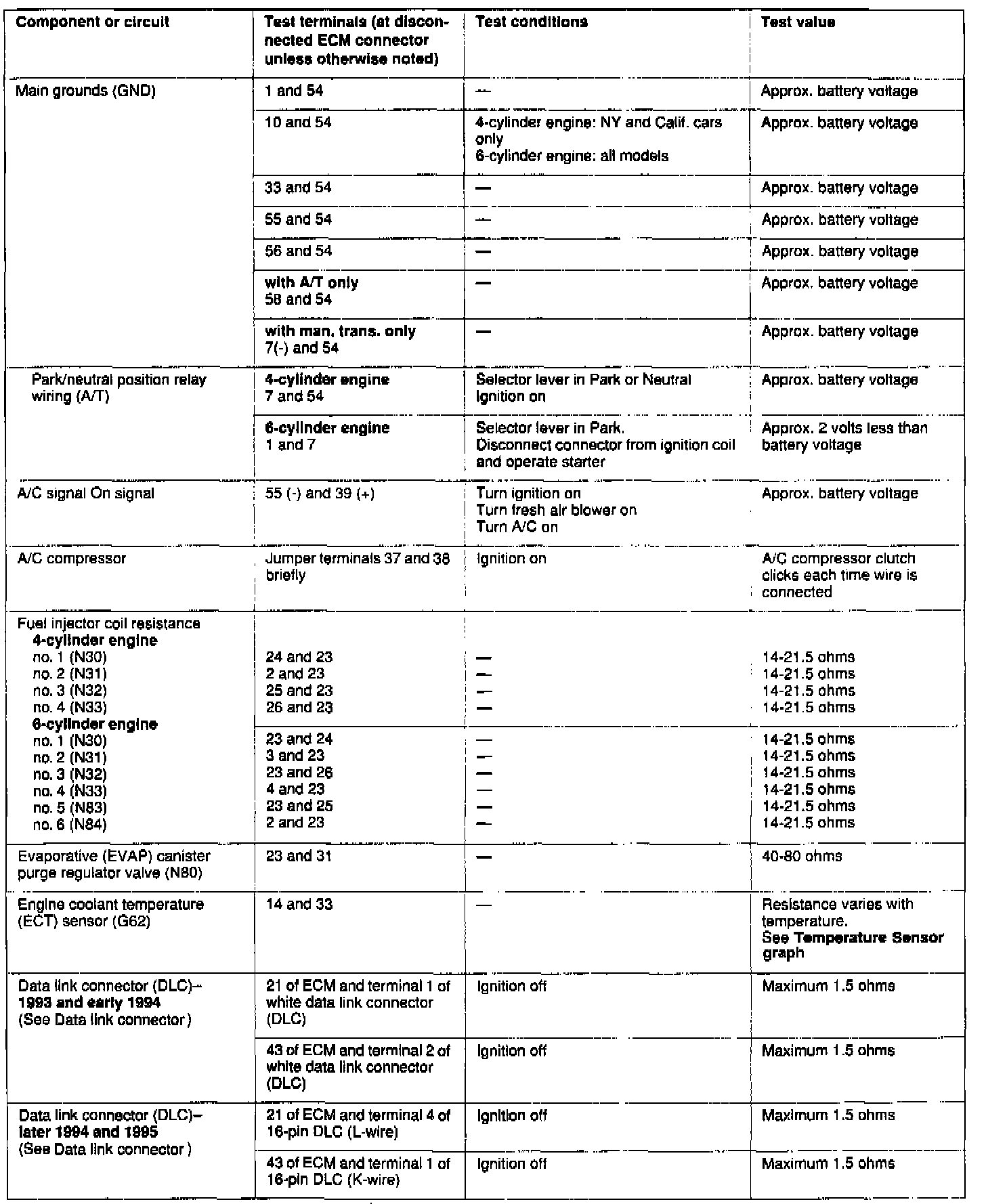

Chart 3 of 4






Chart 4 of 4






Temperature Sensor Graph






Data Link Connector View
