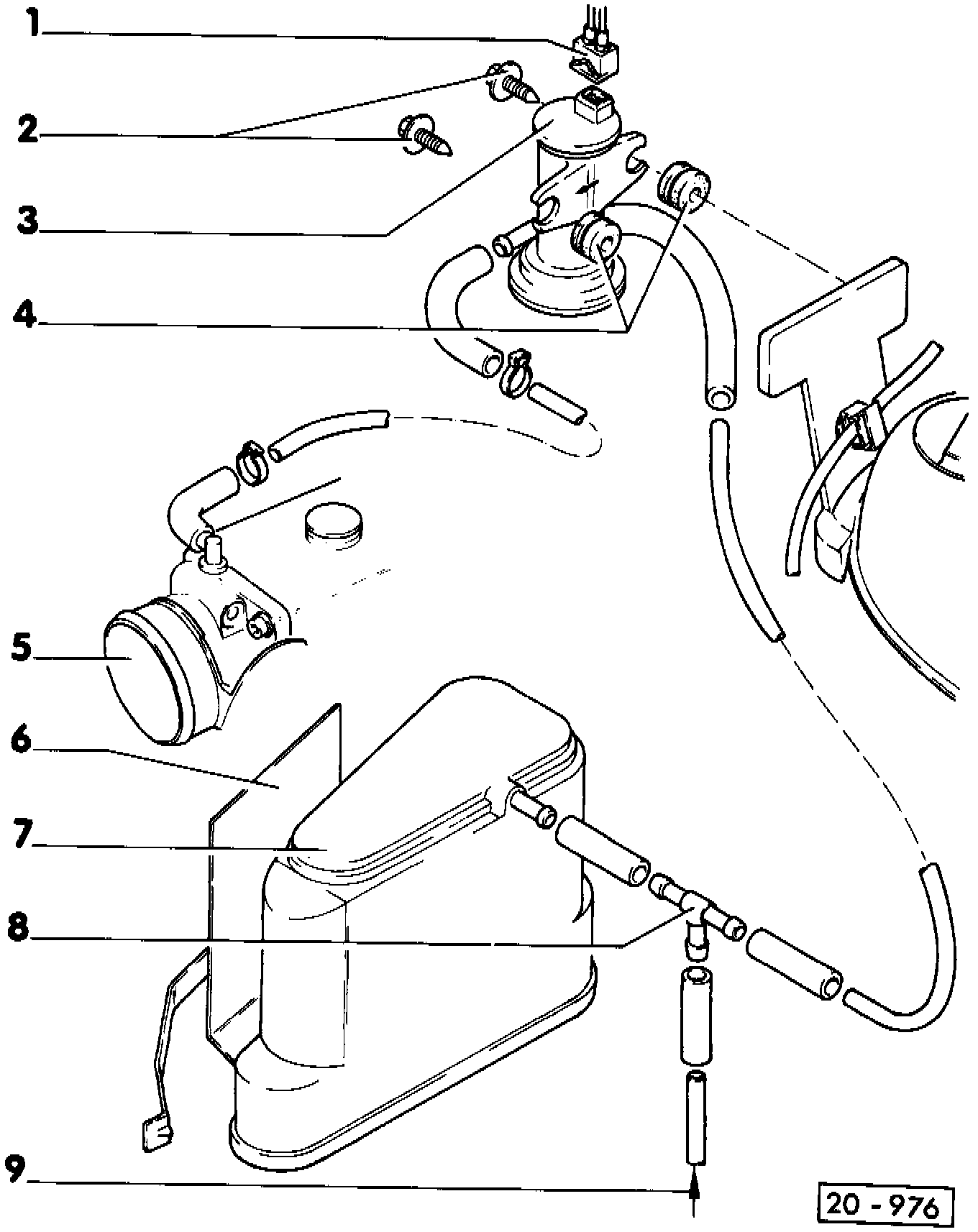

EVAP System

1 - Connector
2 - 10 Nm (7 ft lb)
3 - EVAP canister purge regulator valve N80
^ controlled by the Engine Control Module (ECM)
^ note installed position
^ arrow points in direction of flow

4 - Rubber bushing
5 - Throttle body
6 - Bracket
7 - EVAP canister
^ location: front left wheel housing

8 - Tee
9 - Breather hose
^ from fuel tank
