Engine Compartment Components

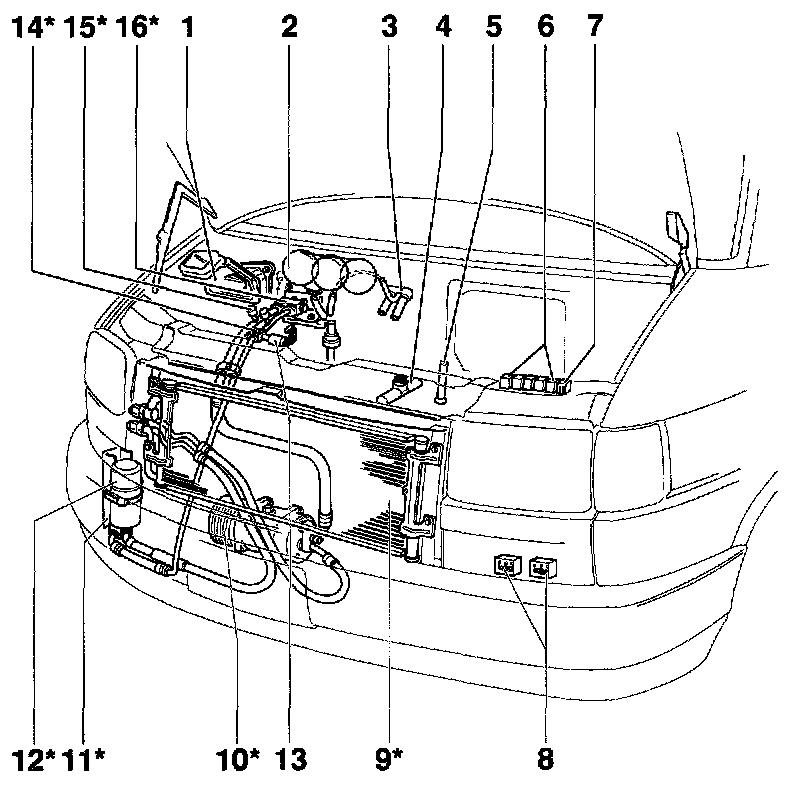

A/C refrigerant (R-1 34a) and heating system, components in engine compartment






1. Air intake duct, rear
2. Vacuum reservoir
3. Bulkhead opening for heater core and vacuum hose
4. A/C thermoswitch -F45-
5. Evaporator water drain hose with valve
6. Relays
7. Individual fuses for coolant fan -S42- (2x)
8. Coolant Fan Control (FC) series resistance -N39-
9. Condenser
10. A/C clutch -N25-
11. Pressure relief valve
12. Receiver drier
13. A/C pressure switch -F129-
14. Sight glass
15. Service valves
16. Expansion valve
