Component Locations

NOTE: For help in identifying door lock system components locations, refer to illustrations. See Fig 1 and Fig 5 .

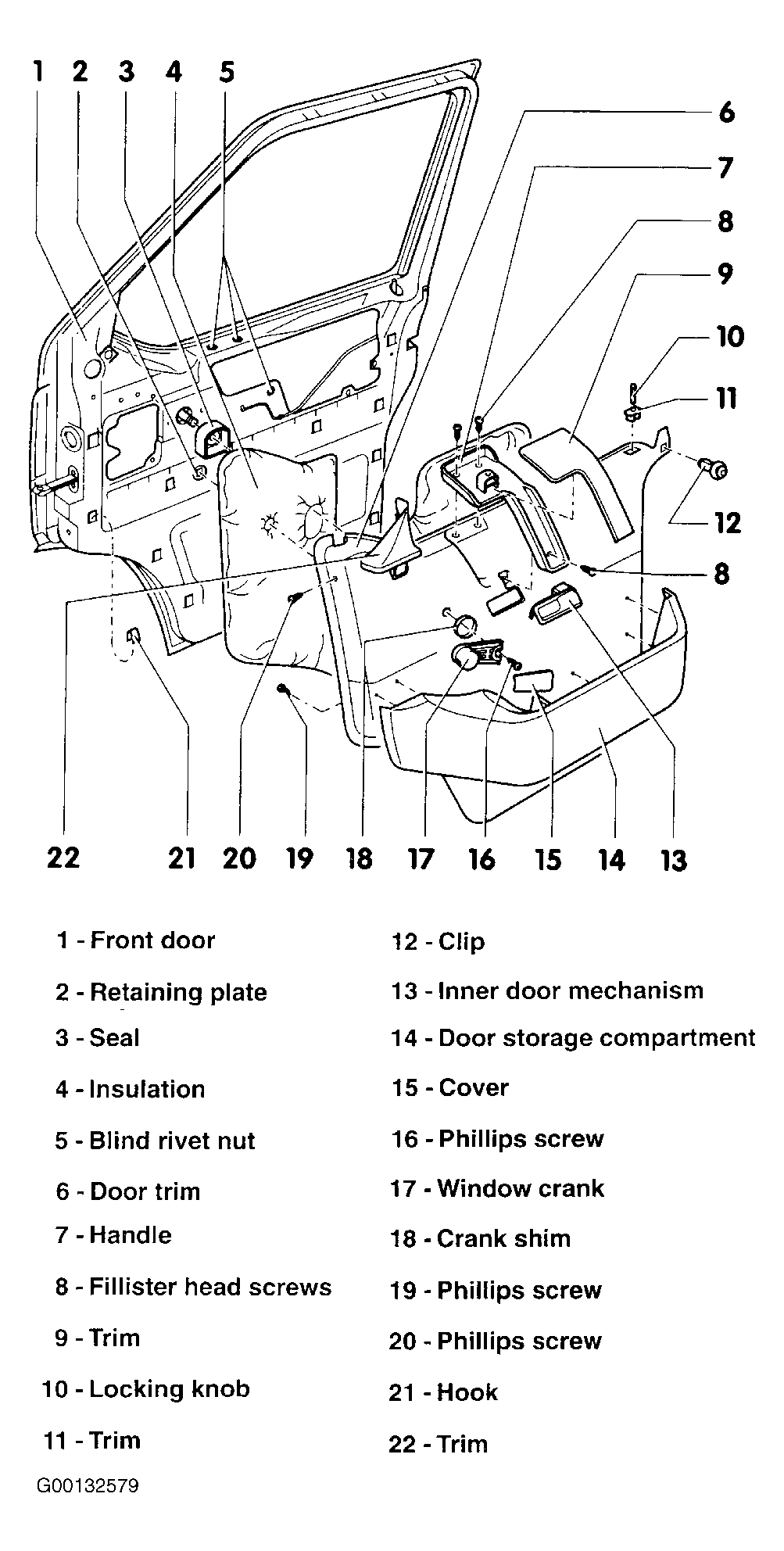

Fig 1: Exploded View Of Front Door Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 2: Exploded View Of Double Door Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

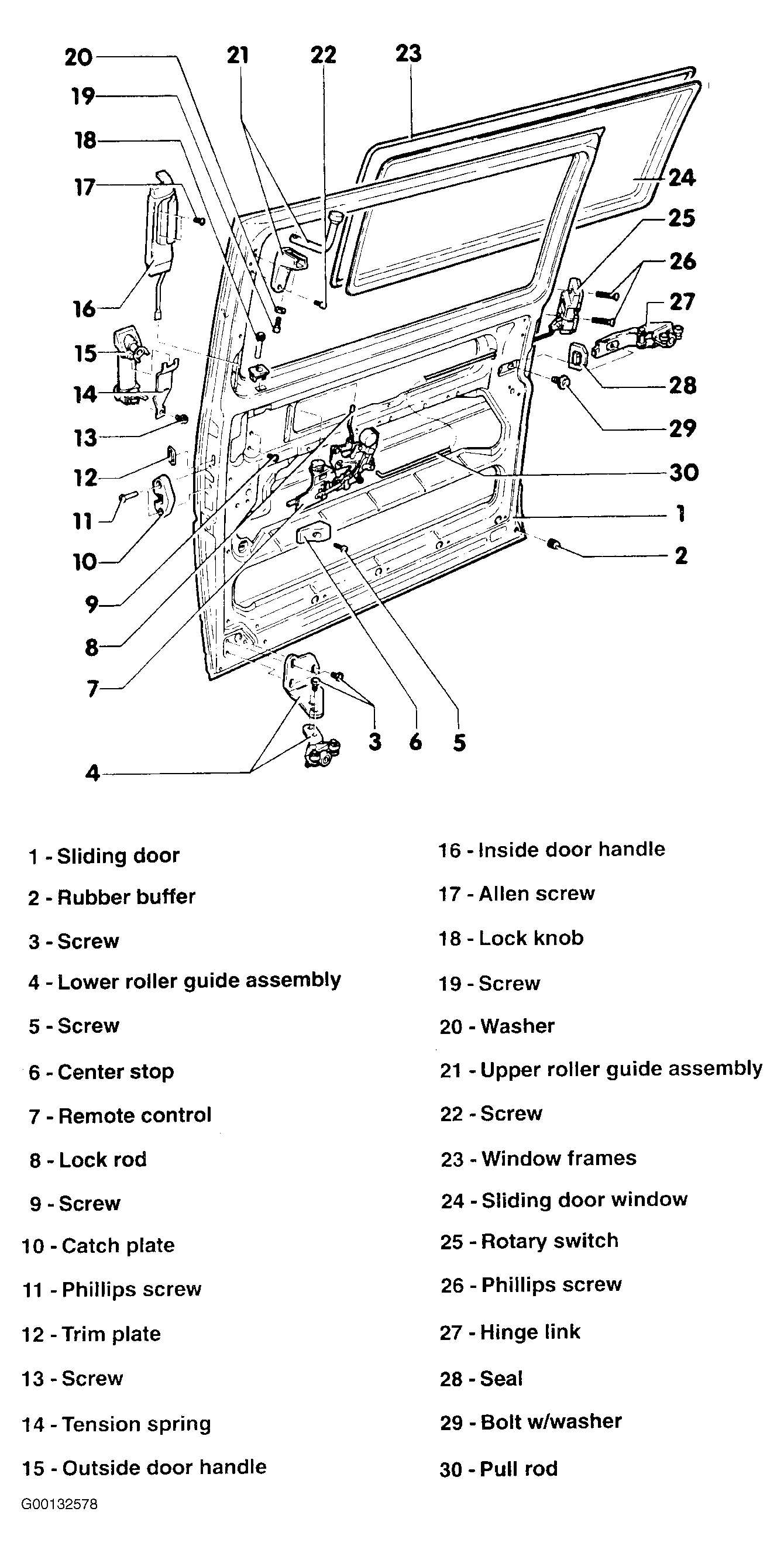

Fig 3: Exploded View Of Sliding Door Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

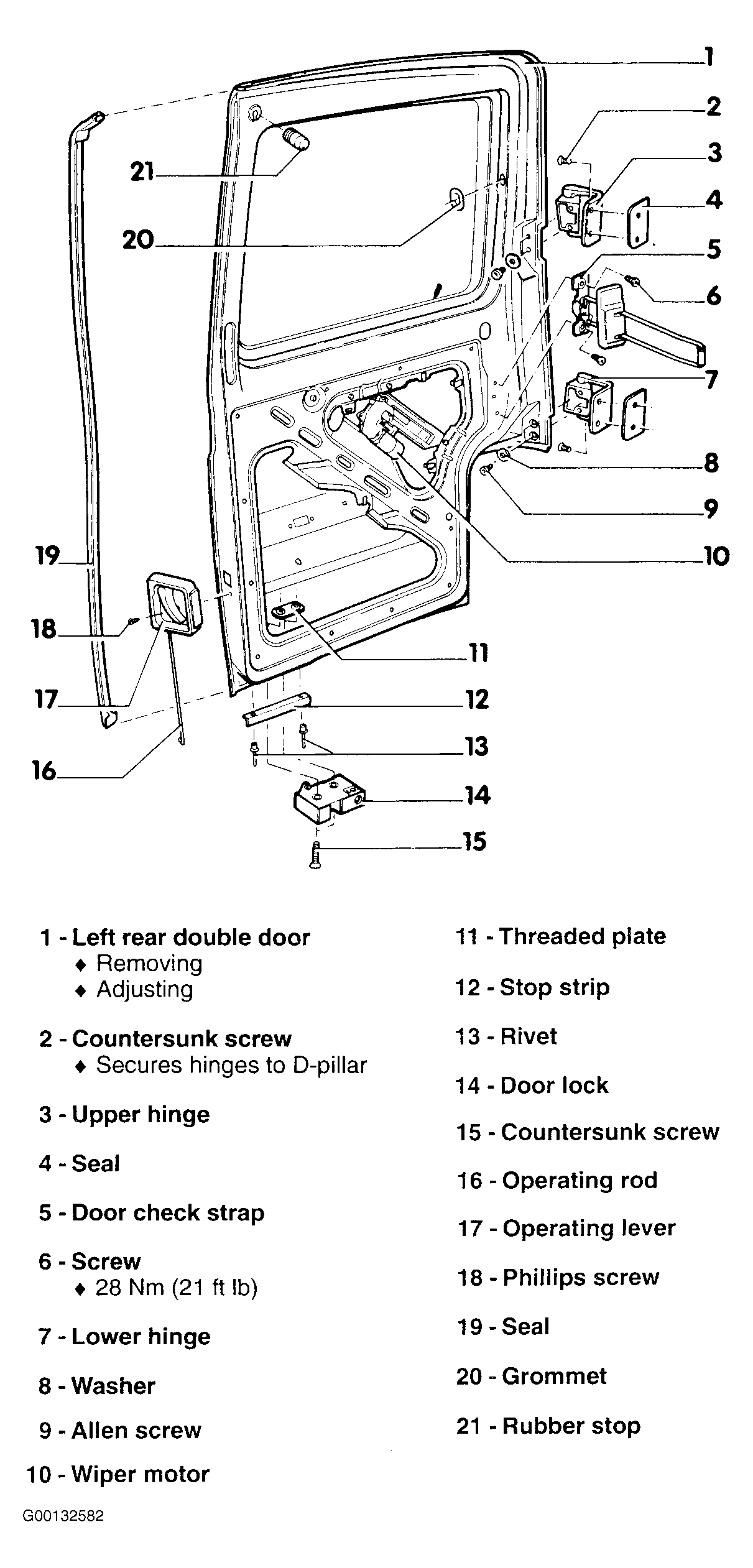

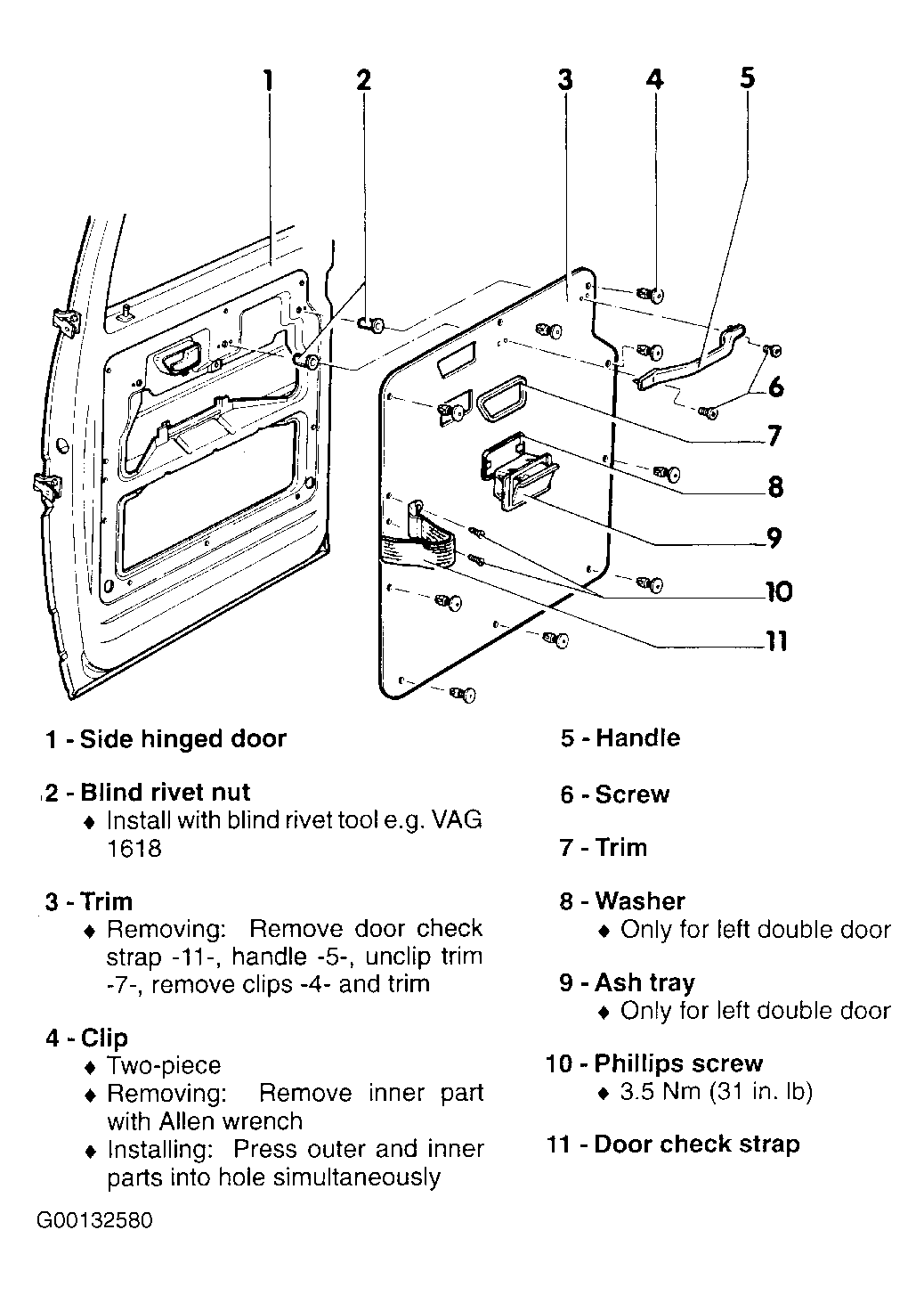

Fig 4: Exploded View Of Double Rear Door Components (Right Door)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

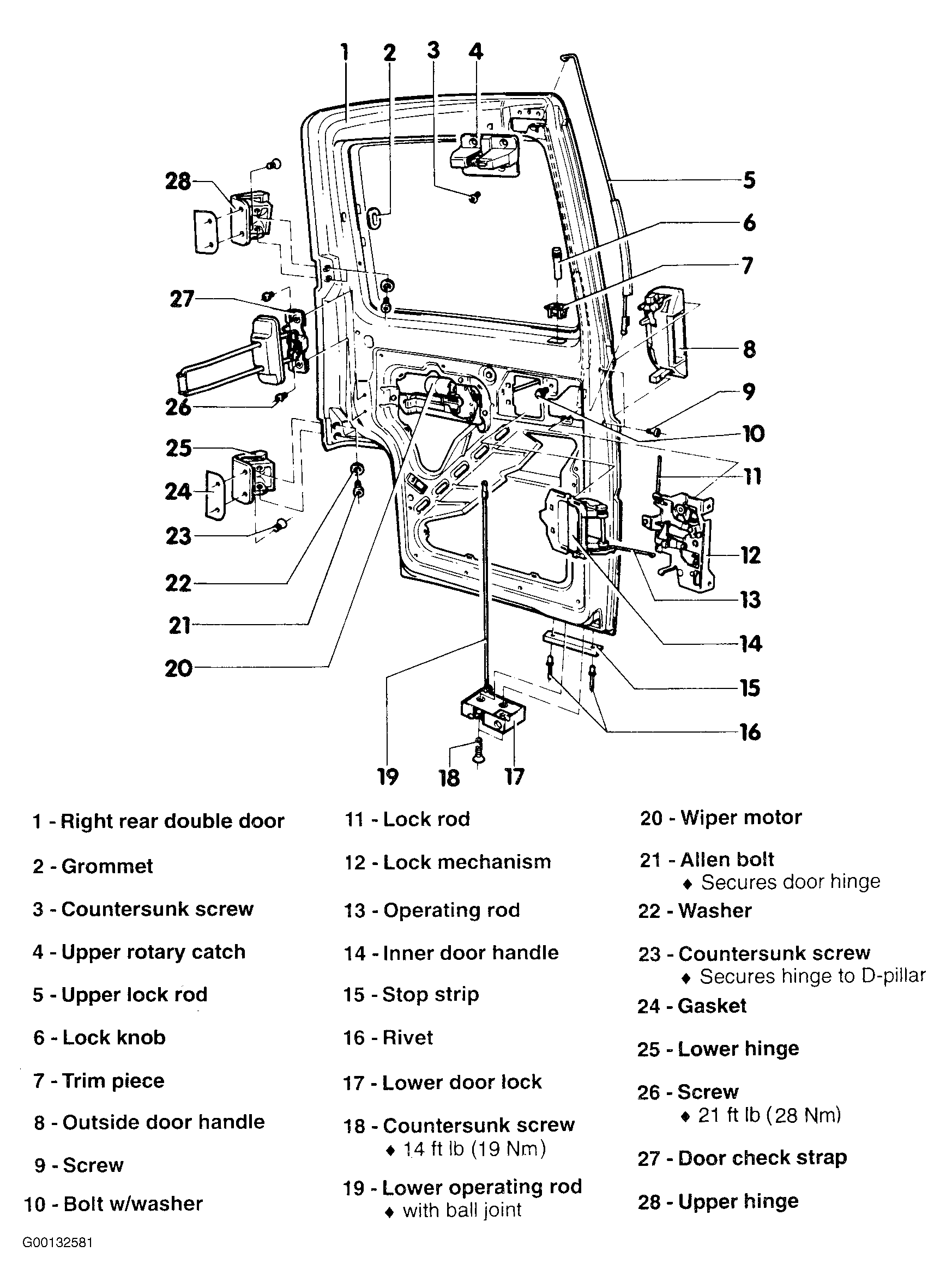

Fig 5: Exploded View Of Double Rear Door Components (Left Door)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
