Anti-Lock Brake System: Description

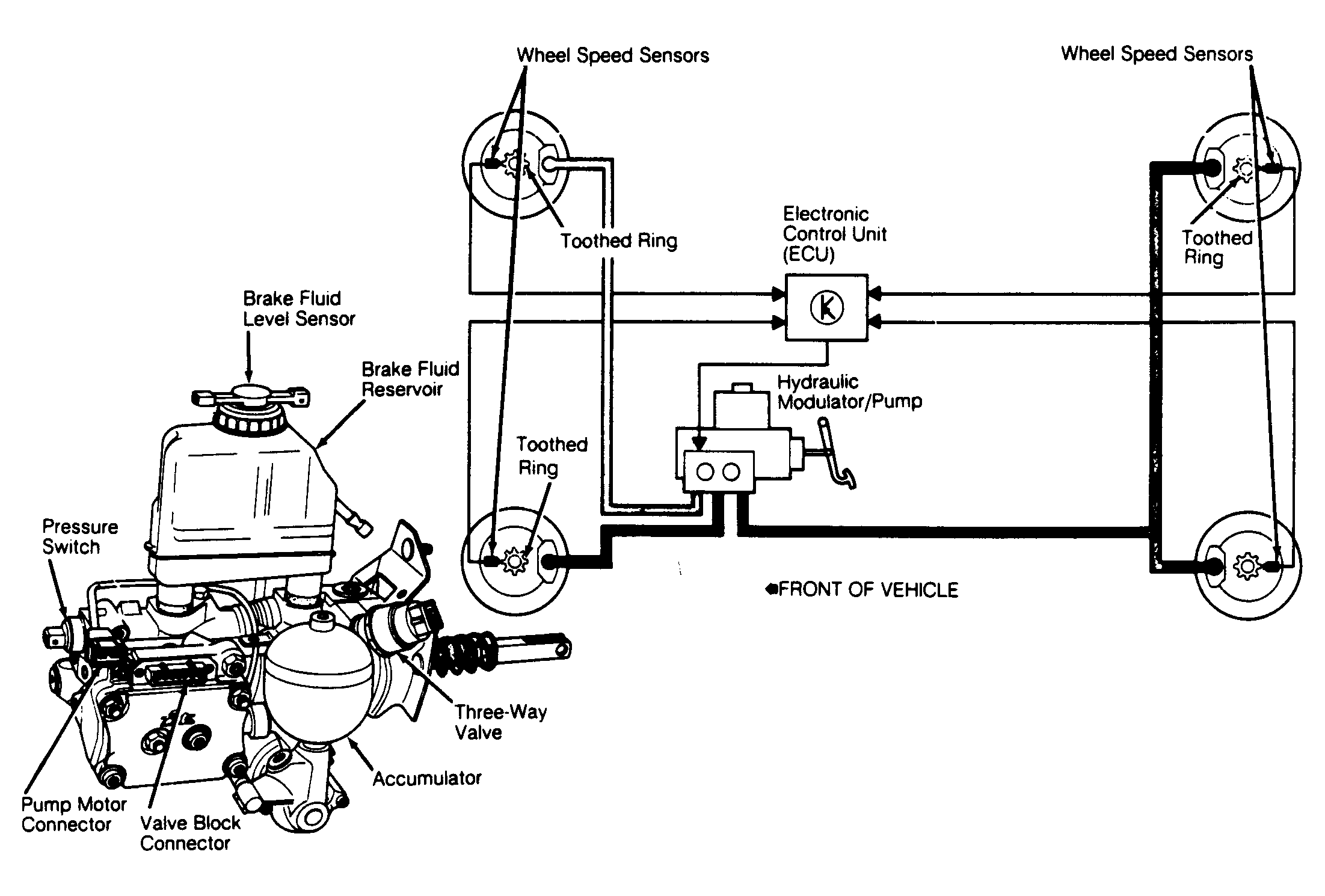

A Teves Anti-Lock Brake System (ABS) is used. See Figure . This system reduces the chance of wheel lock-up during heavy braking. The system consists of 4 wheel speed sensors, Electronic Control Unit (ECU), hydraulic modulator/pump and solenoid valves, ANTILOCK and BRAKE warning lights. There are 2 relays located at fuse/relay panel, to protect the hydraulic modulator and ECU.
