System Specifications

NOTE: Using the tables below, locate the appropriate information

Models With Base Suspension

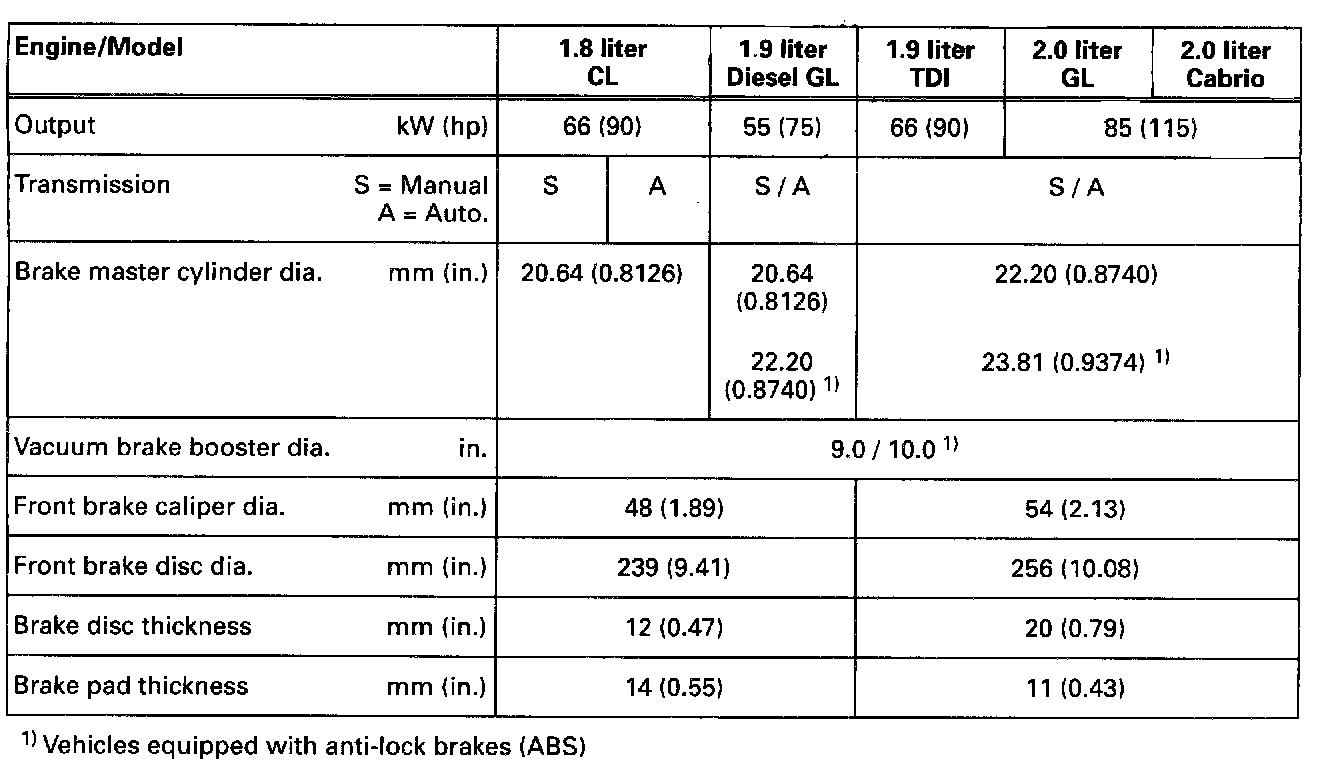

Base Suspension Brake Component List (Part 1 Of 2):

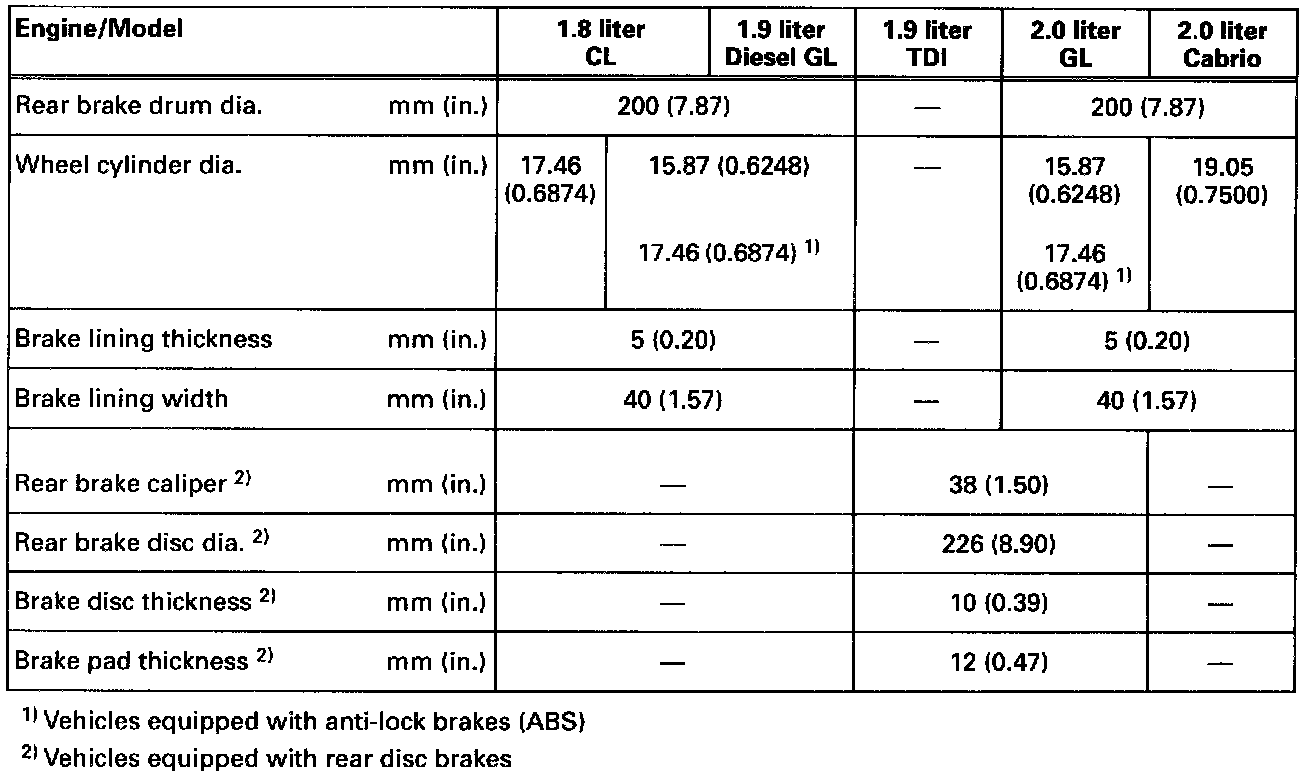

Base Suspension Brake Component List (Part 2 Of 2):






Models With Plus Suspension

Plus Suspension Brake Component List:
