Federal Vehicles (Digifant II) 25-Pin Connector

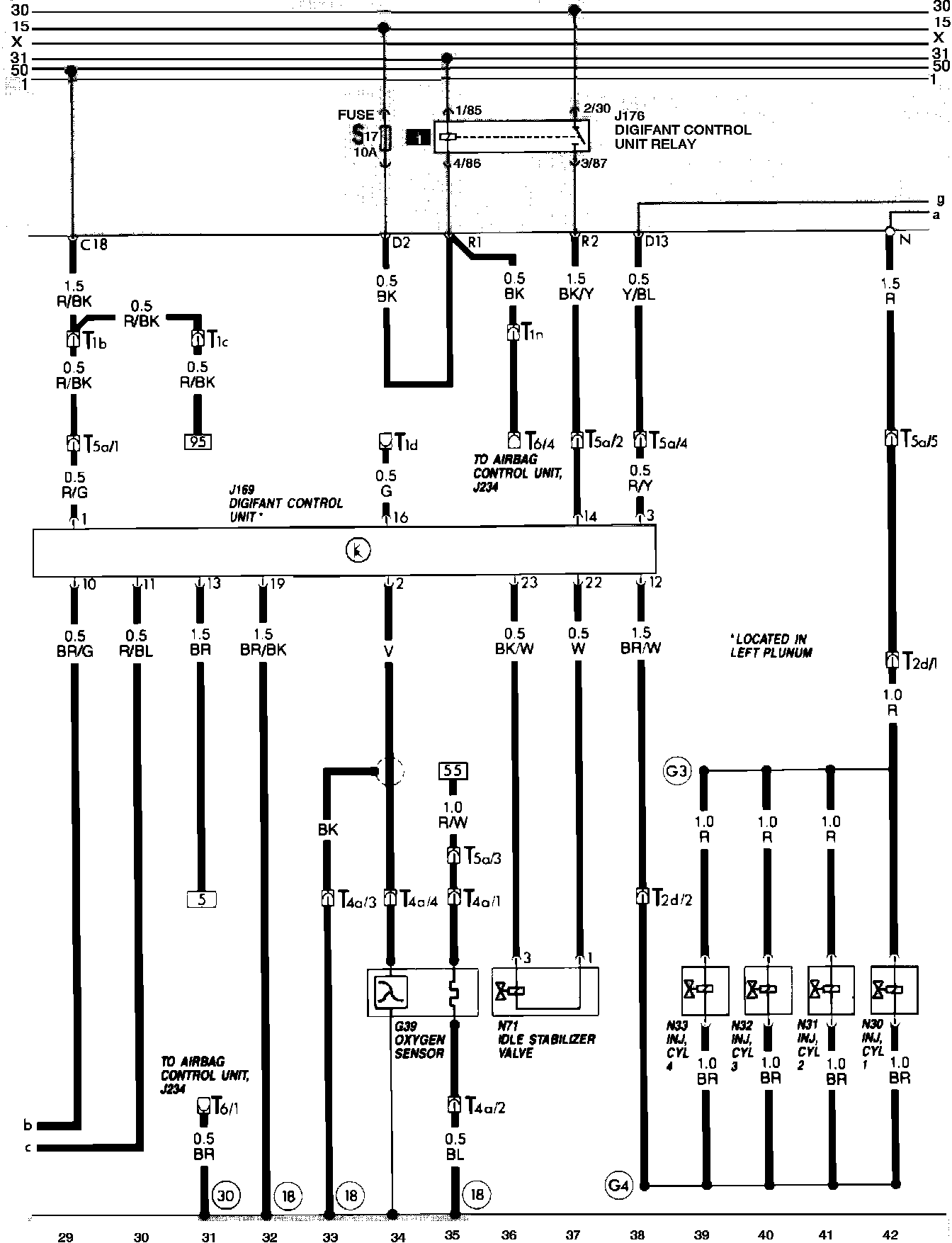

Digifant II 25 Pin Control Unit Connector:
DIGIFANT II ECM TERMINAL I.D.

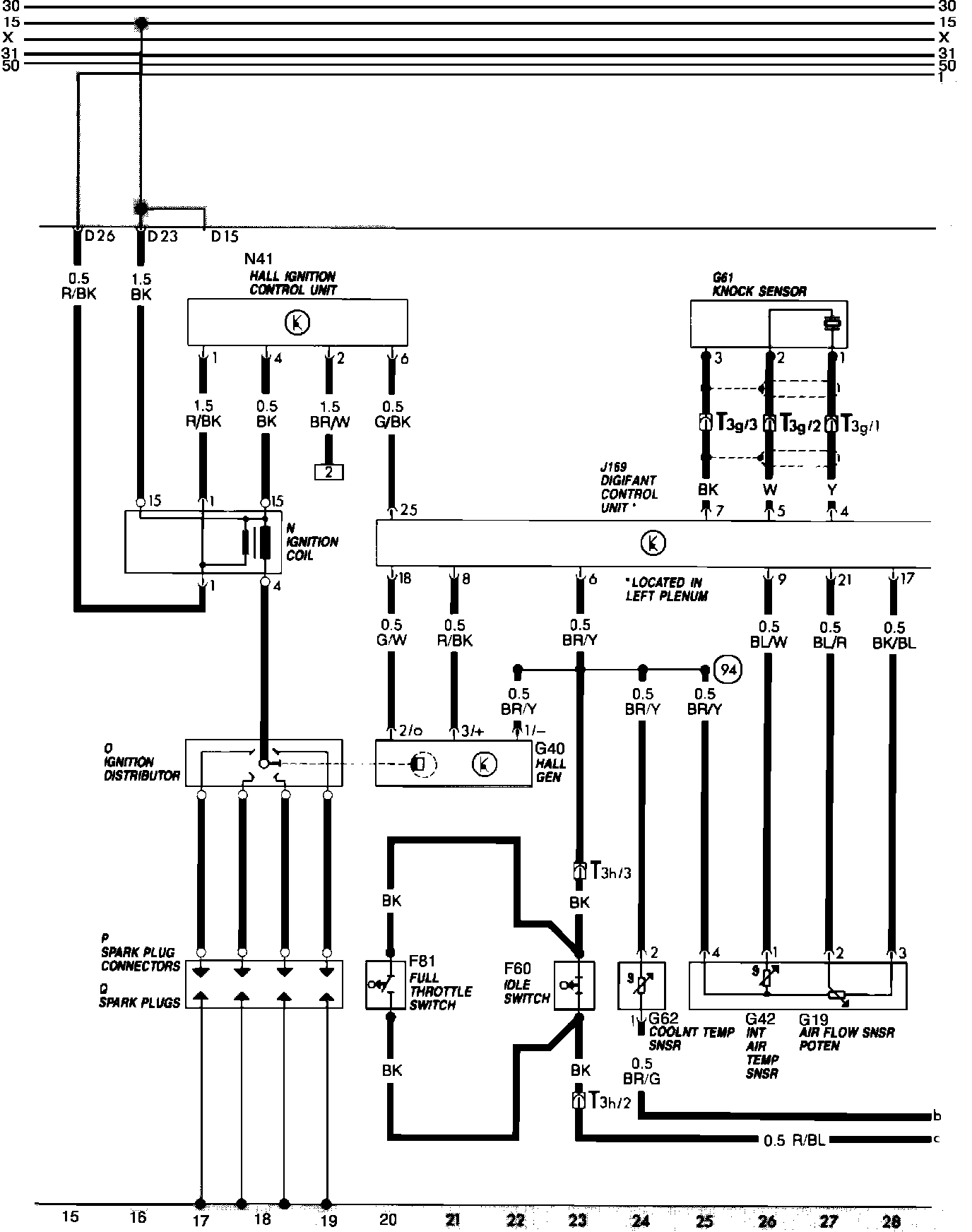

Engine Management (Digifant) & Ignition System:
Engine Management (Digifant):

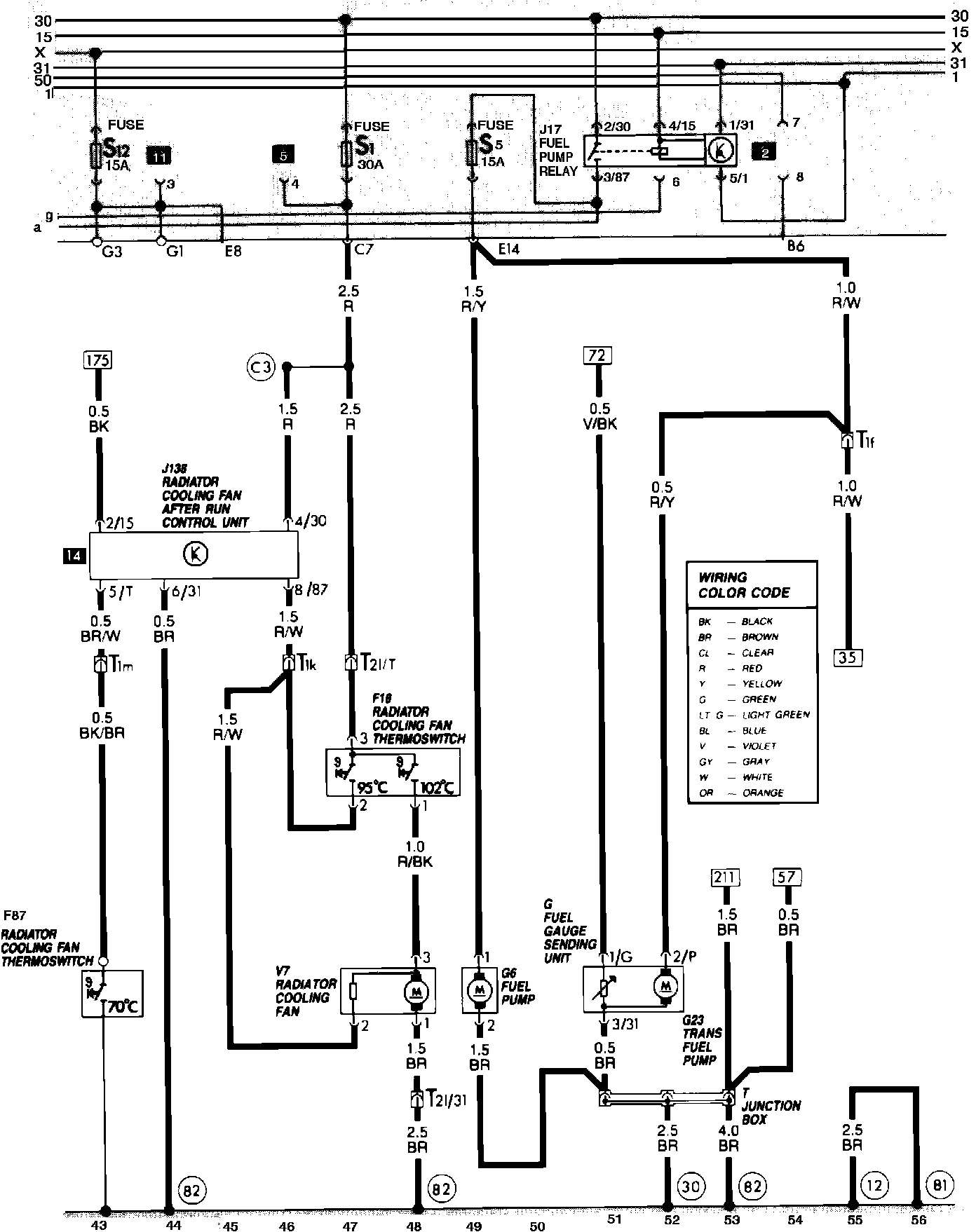

Cooling Fan (Engine), Engine Management (Digifant) & Fuel Pump:

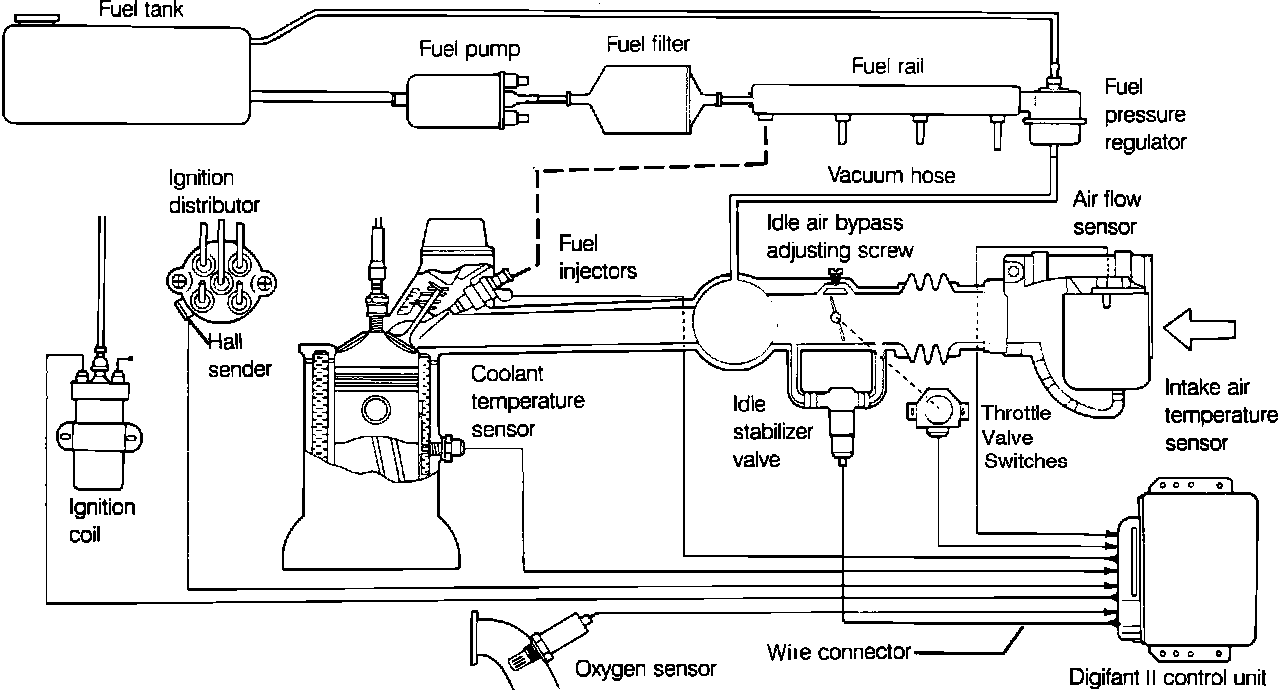

DIGIFANT FUEL INJECTION SYSTEM (FEDERAL VEHICLES)
Digifant II Engine Management System:

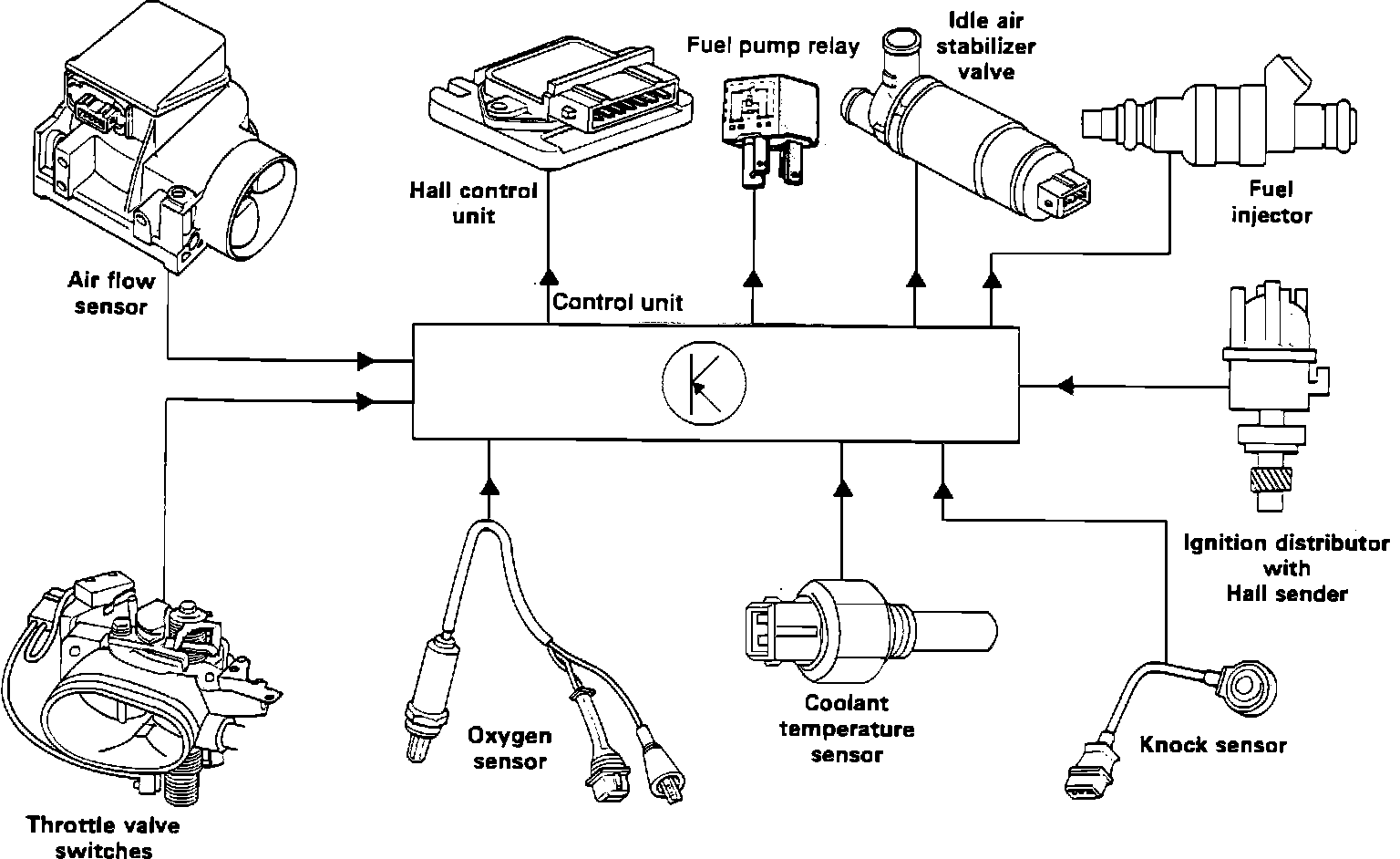

COMPONENT DIAGRAM
Digifant II Engine Management System:
SYSTEM WIRING HARNESS
For more complete information refer to CHASSIS ELECTRICAL DIAGRAMS.
