California Vehicles (Digifant I) 38-Pin Connector
Digifant I 38 Pin Control Unit Connector:
DIGIFANT I ECM TERMINAL I.D.

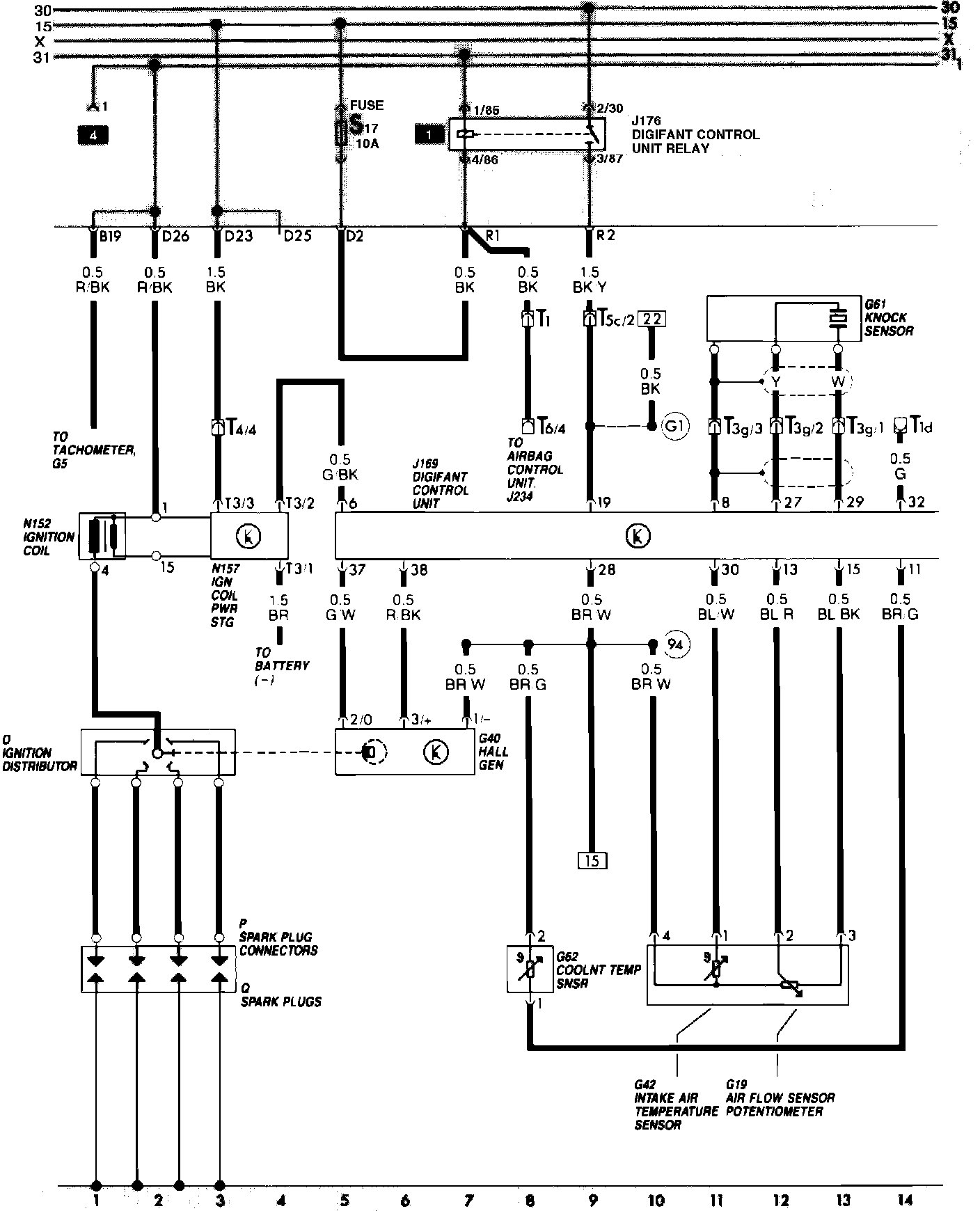

Engine Management (Digifant) & Ignition System:

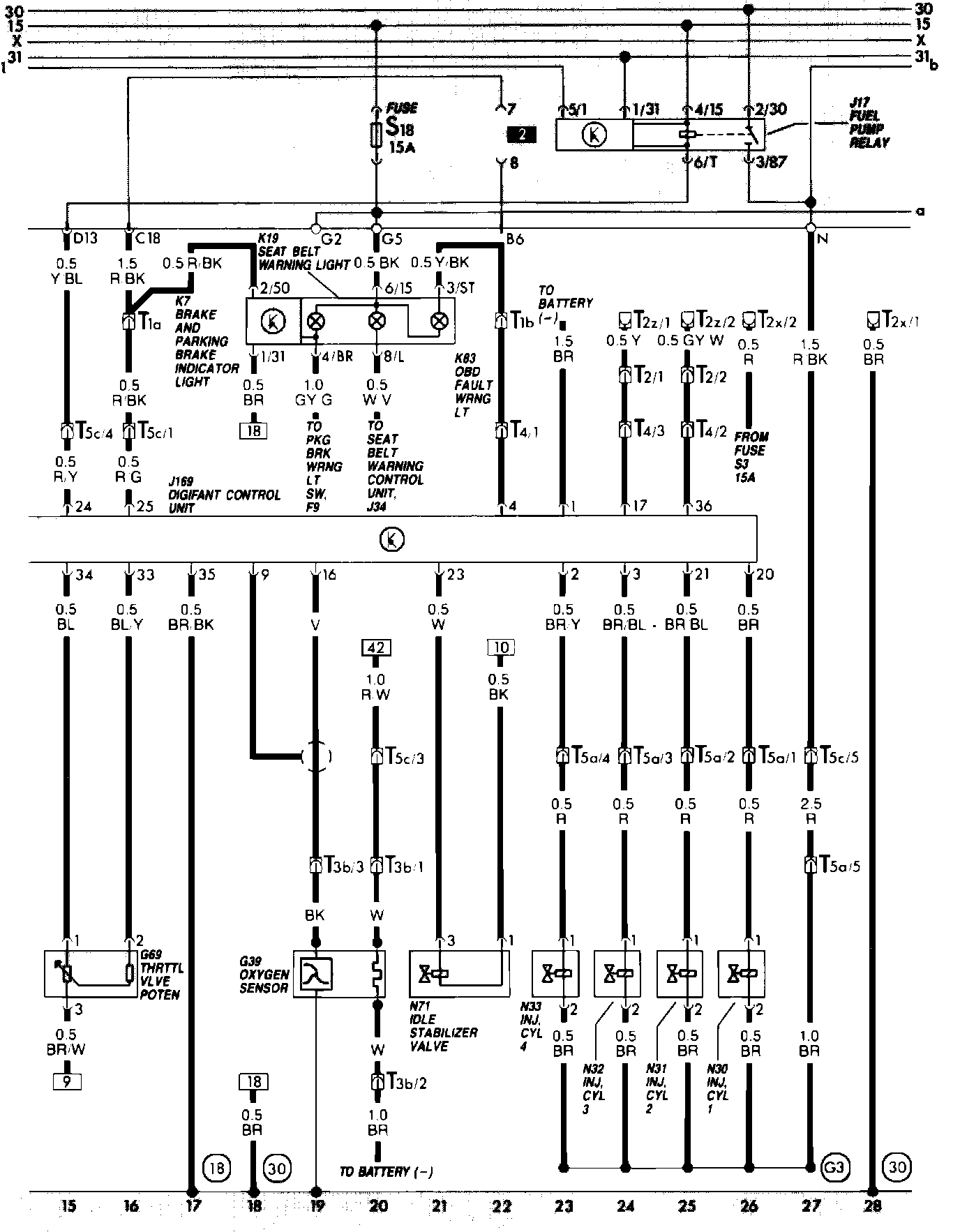

Engine Management (Digifant):
Cooling Fan (Engine), Engine Management (Digifant) & Fuel Pump:

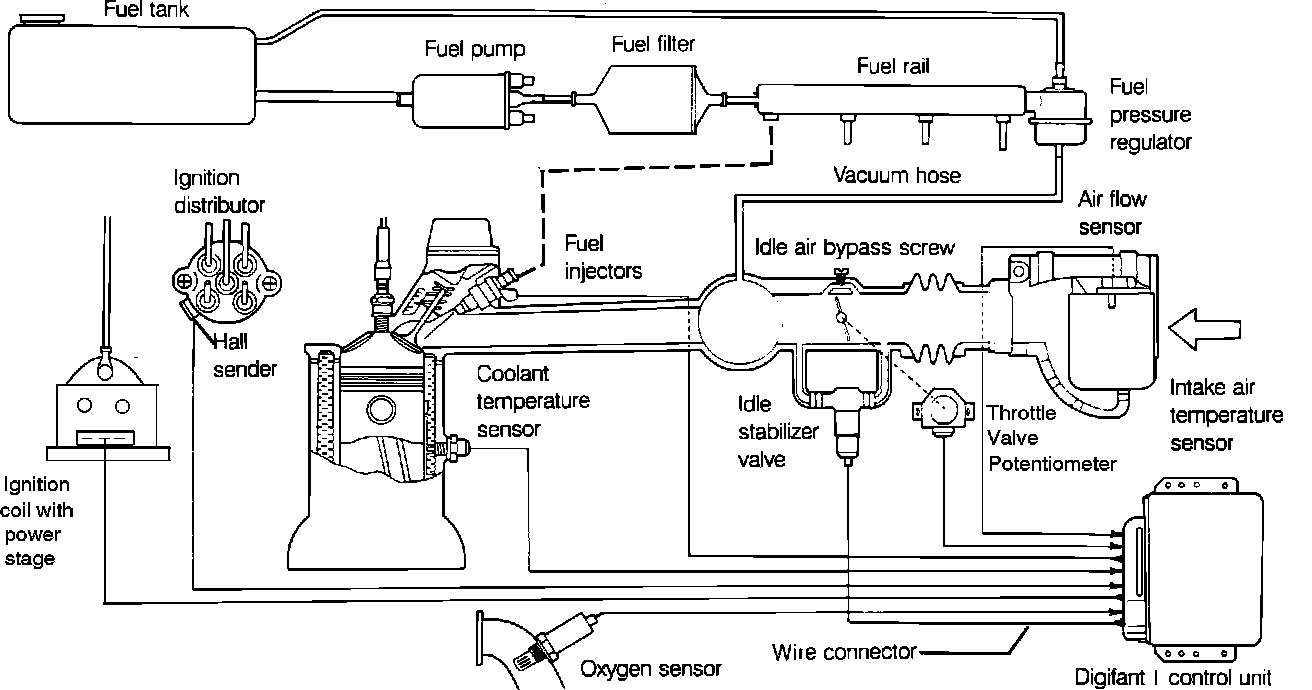

DIGIFANT FUEL INJECTION SYSTEM (CALIFORNIA VEHICLES)
Digifant I Engine Management System:

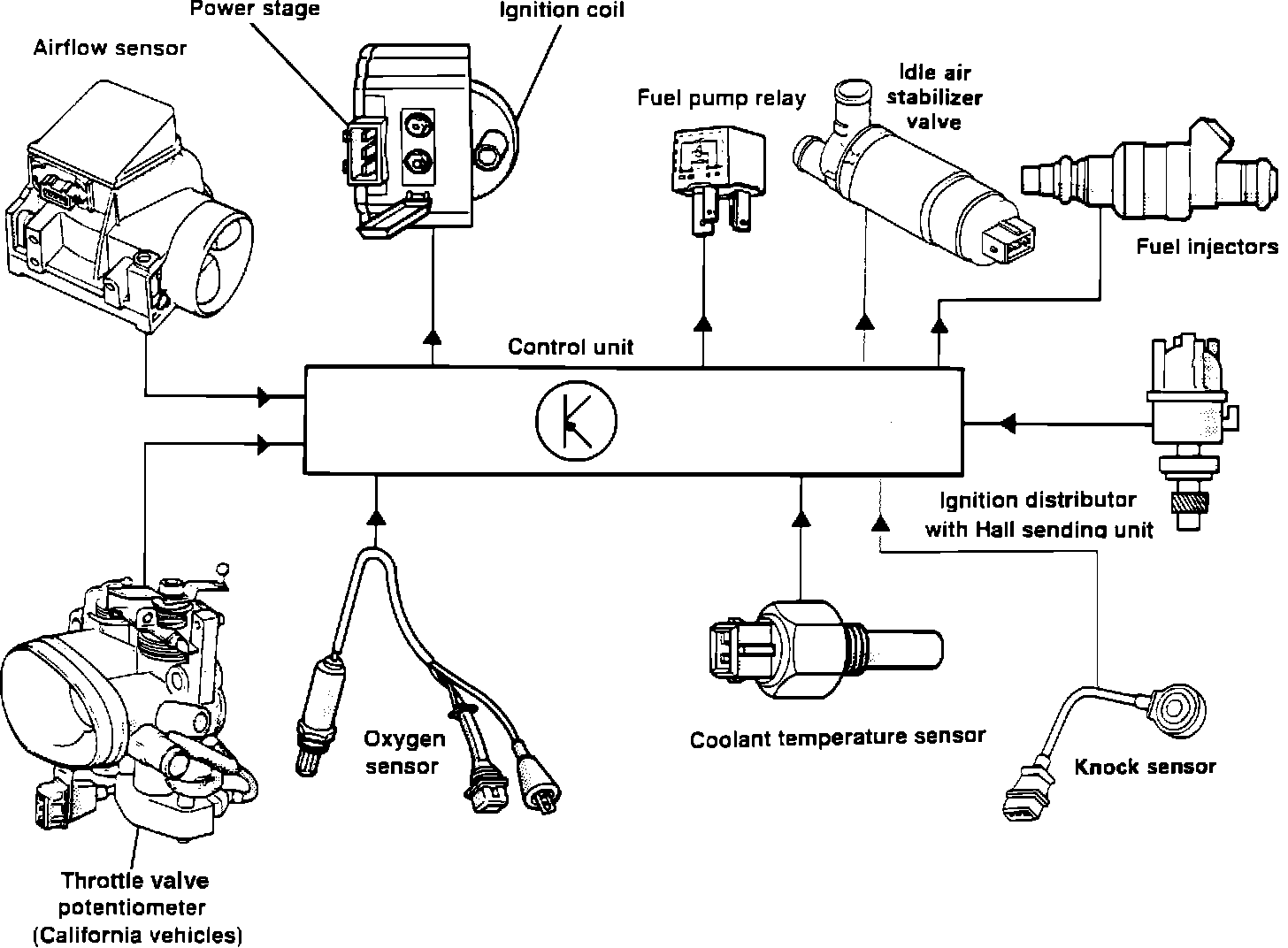

COMPONENT DIAGRAM
Digifant I Engine Management System:
SYSTEM WIRING HARNESS
For more complete information refer to CHASSIS ELECTRICAL DIAGRAMS.
