Seat Belt Control Module: Locations

AUTOMATIC SHOULDER BELTS

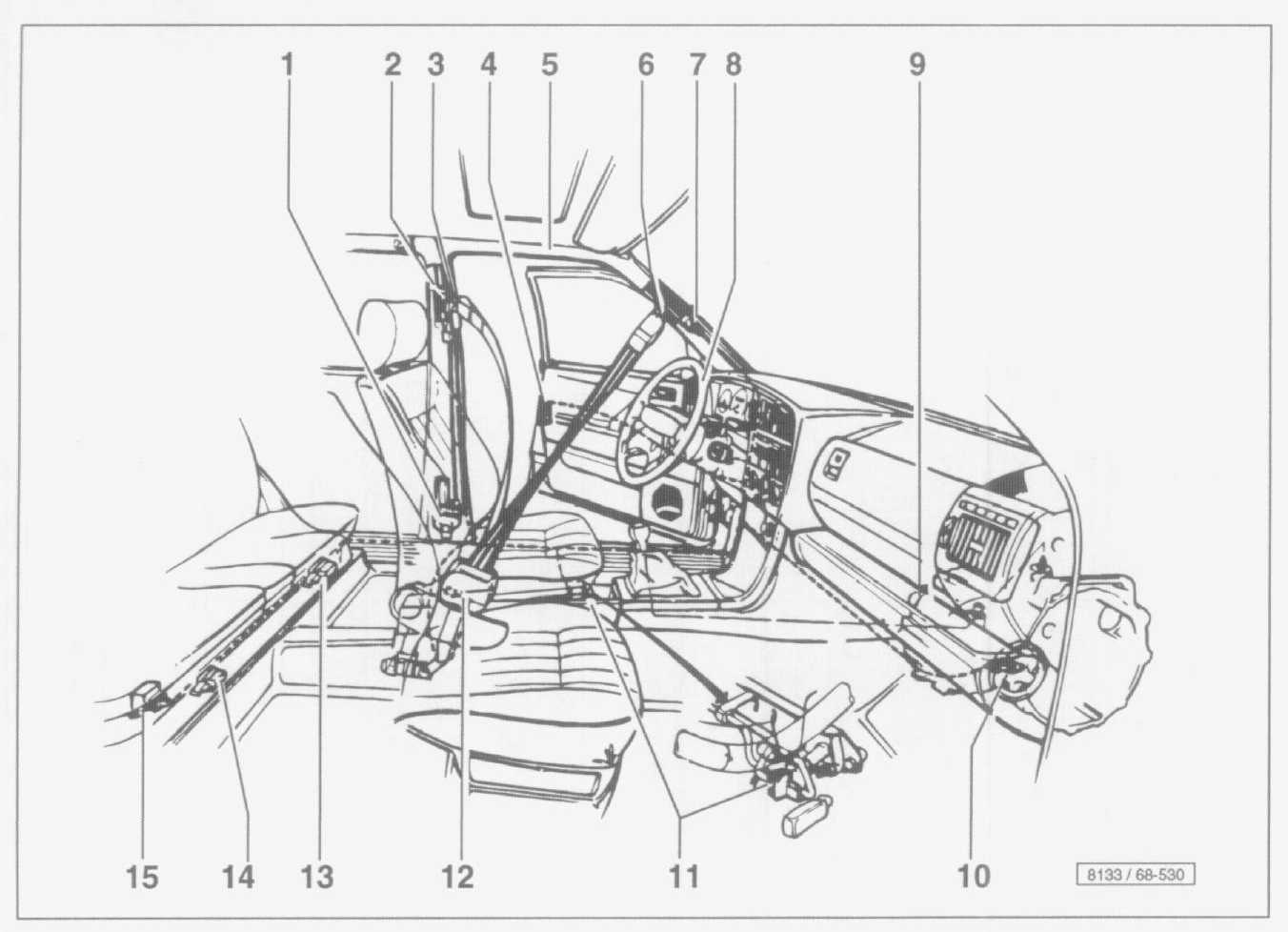

Component Locations





1 - Drive unit
2 - Emergency belt release buckle
3 - B-pillar switch wilock control (driver-side only)
4 - Door lock microswitch
5 - Track
6 - Slide
7 - A-pillar switch
8 - Warning light
9 - Seat belt warning control unit
10 - Knee bar
11 - Reverse gear switch
12 - Shoulder belt lock release switch
13 - Control unit, driver's side
14 - Control unit, passenger's side
15 - Motion sensor

CAUTION
- Disconnect battery ground strap before removing drive unit.
- Connect and disconnect battery cables only with the ignition off to prevent sparks.
- Before disconnecting the battery, make sure you know the correct activation code for the anti-theft radio.
