Wiring Diagrams

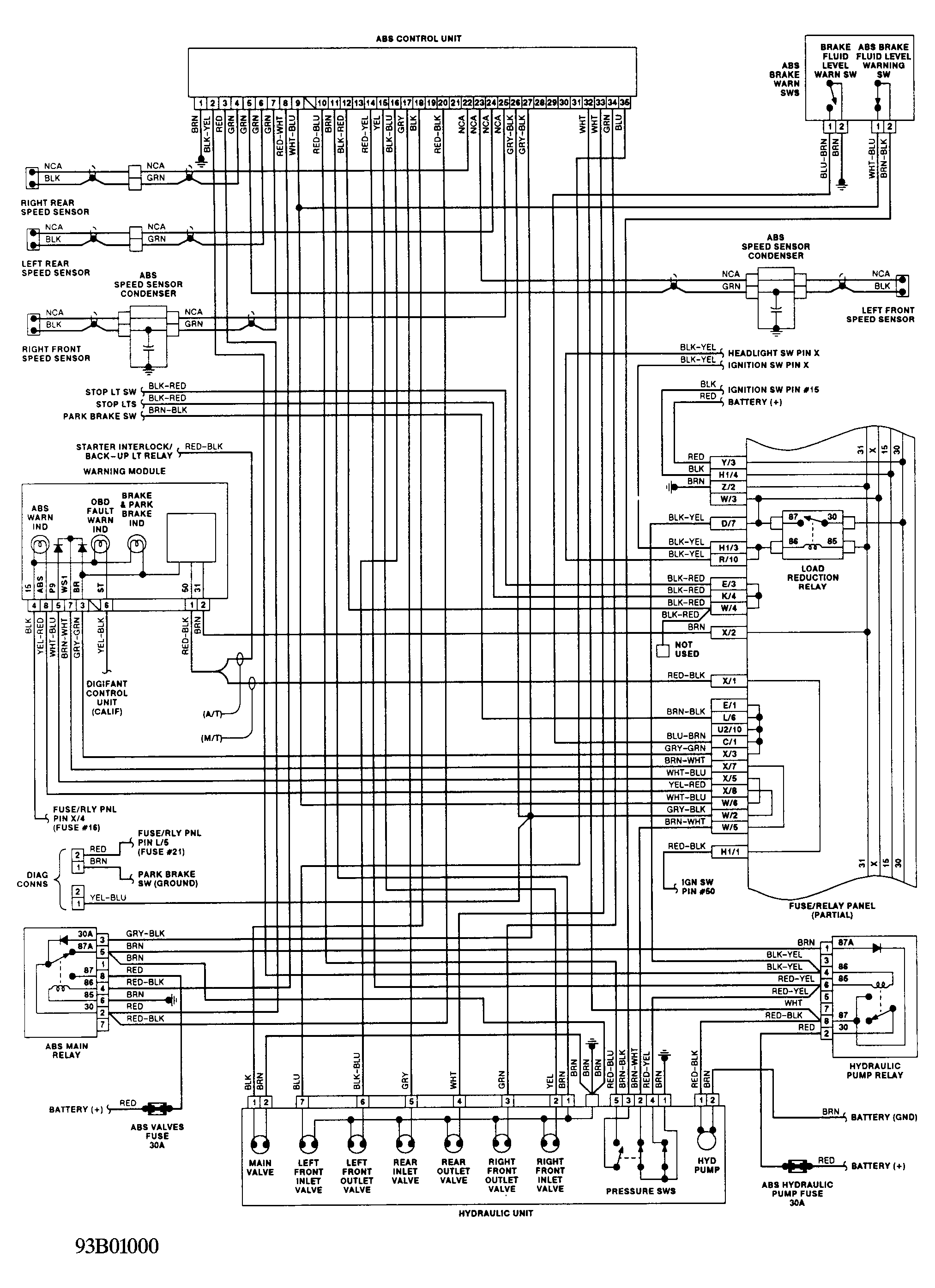

Fig 1: Corrado ABS Wiring Diagram (1991)

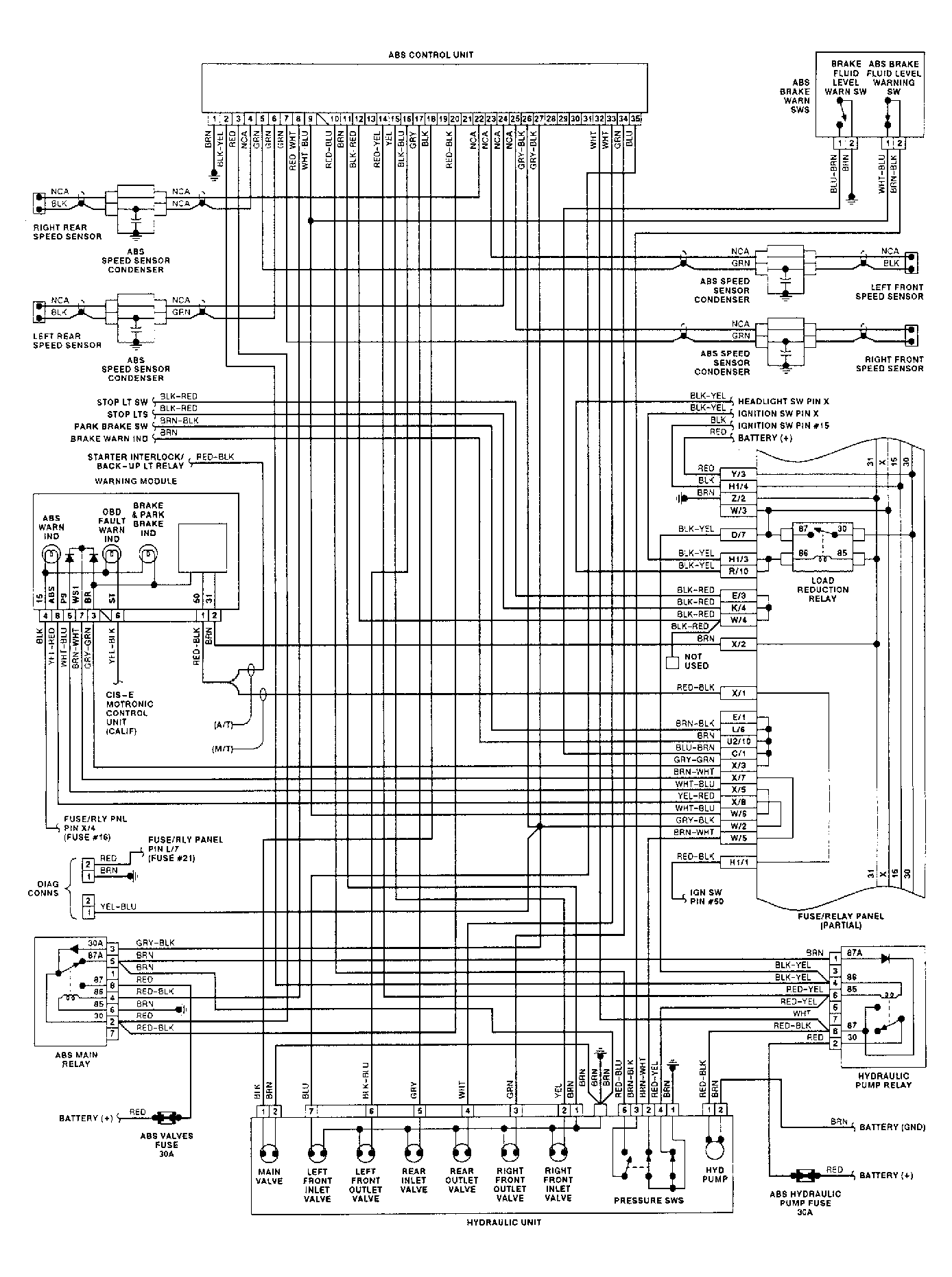

Fig 2: Corrado ABS Wiring Diagram (1990)

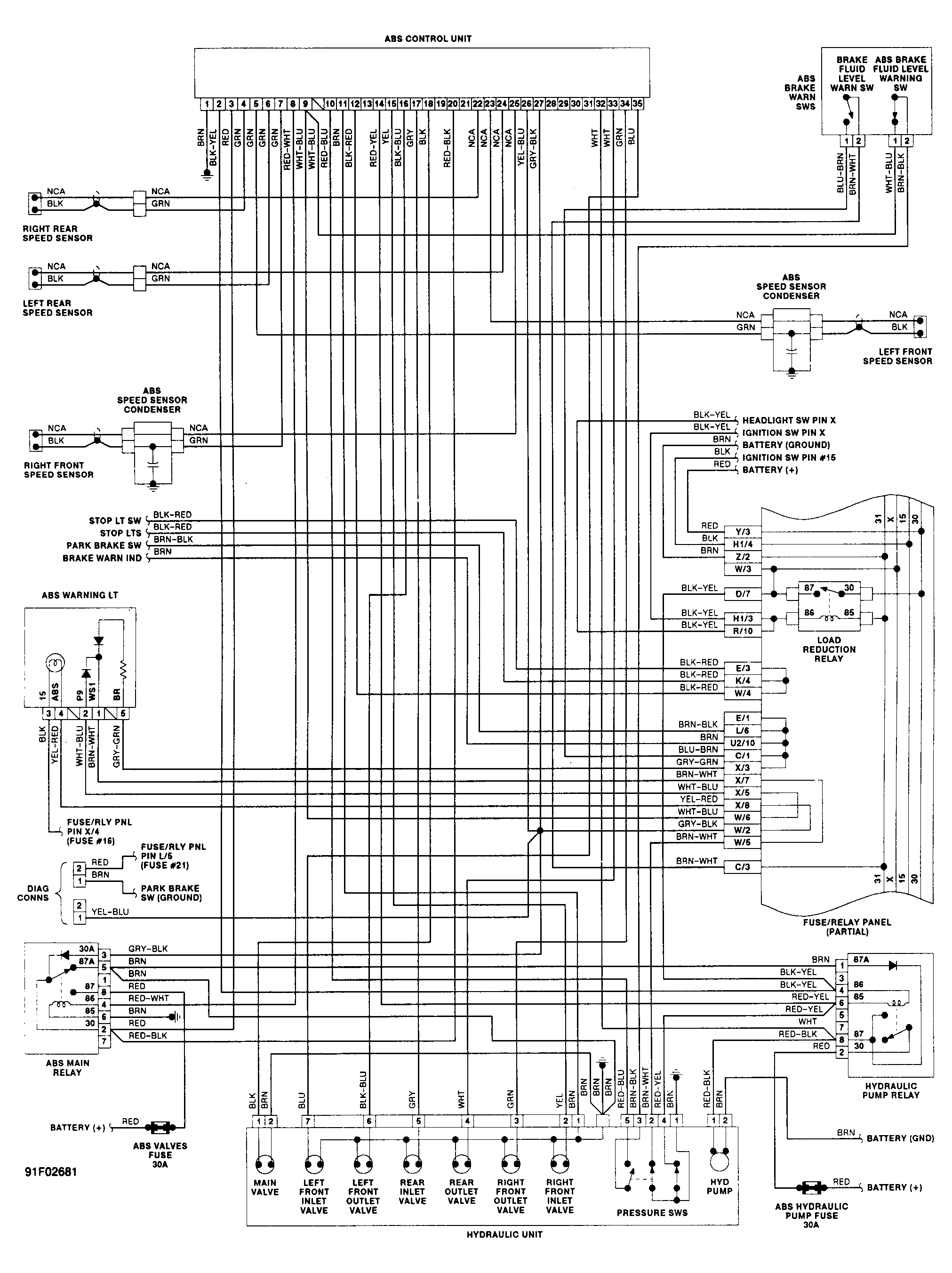

Fig 3: Jetta ABS Wiring Diagram (1990-91)

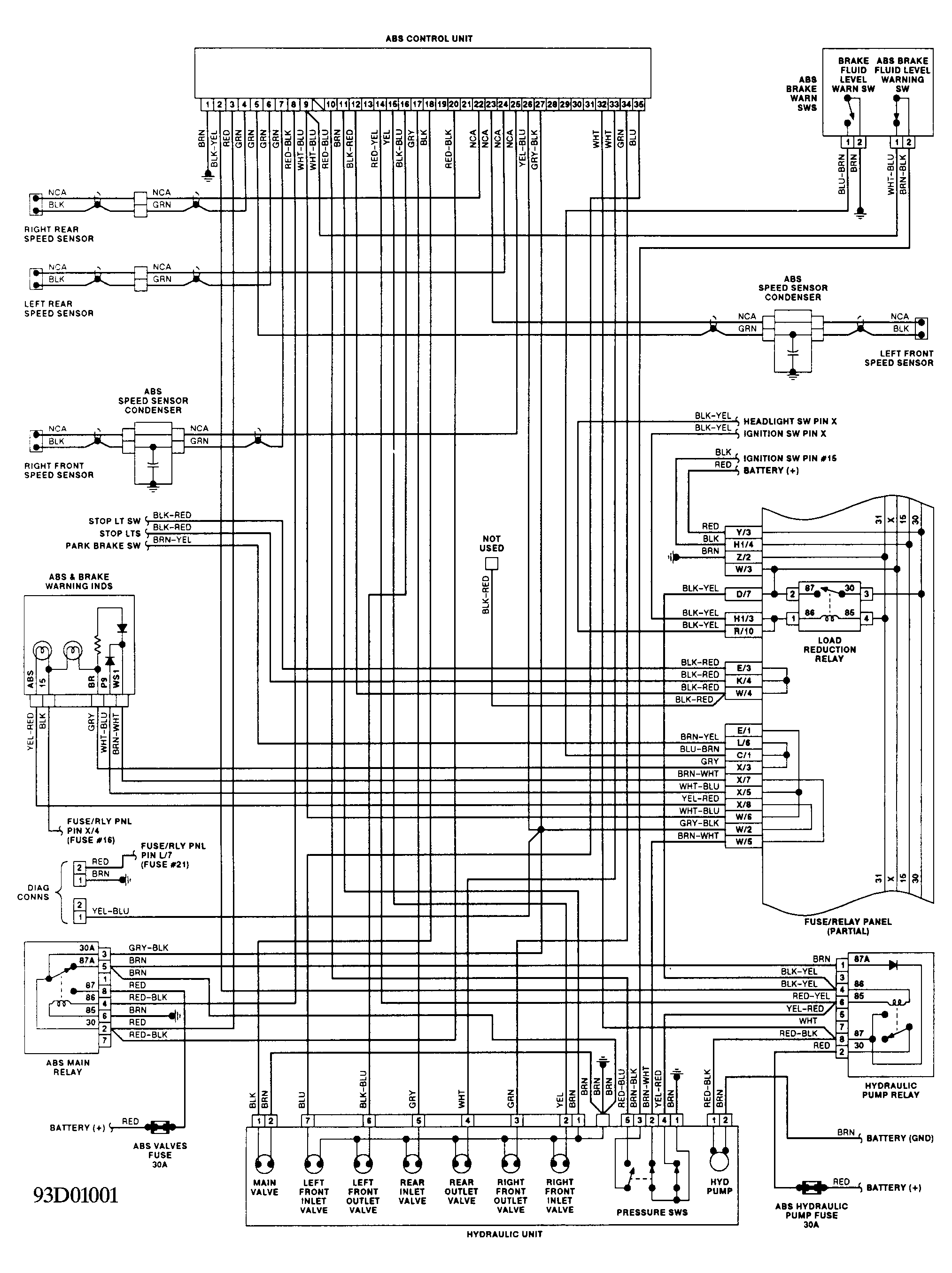

Fig 4: Passat ABS Wiring Diagram (1990-91)

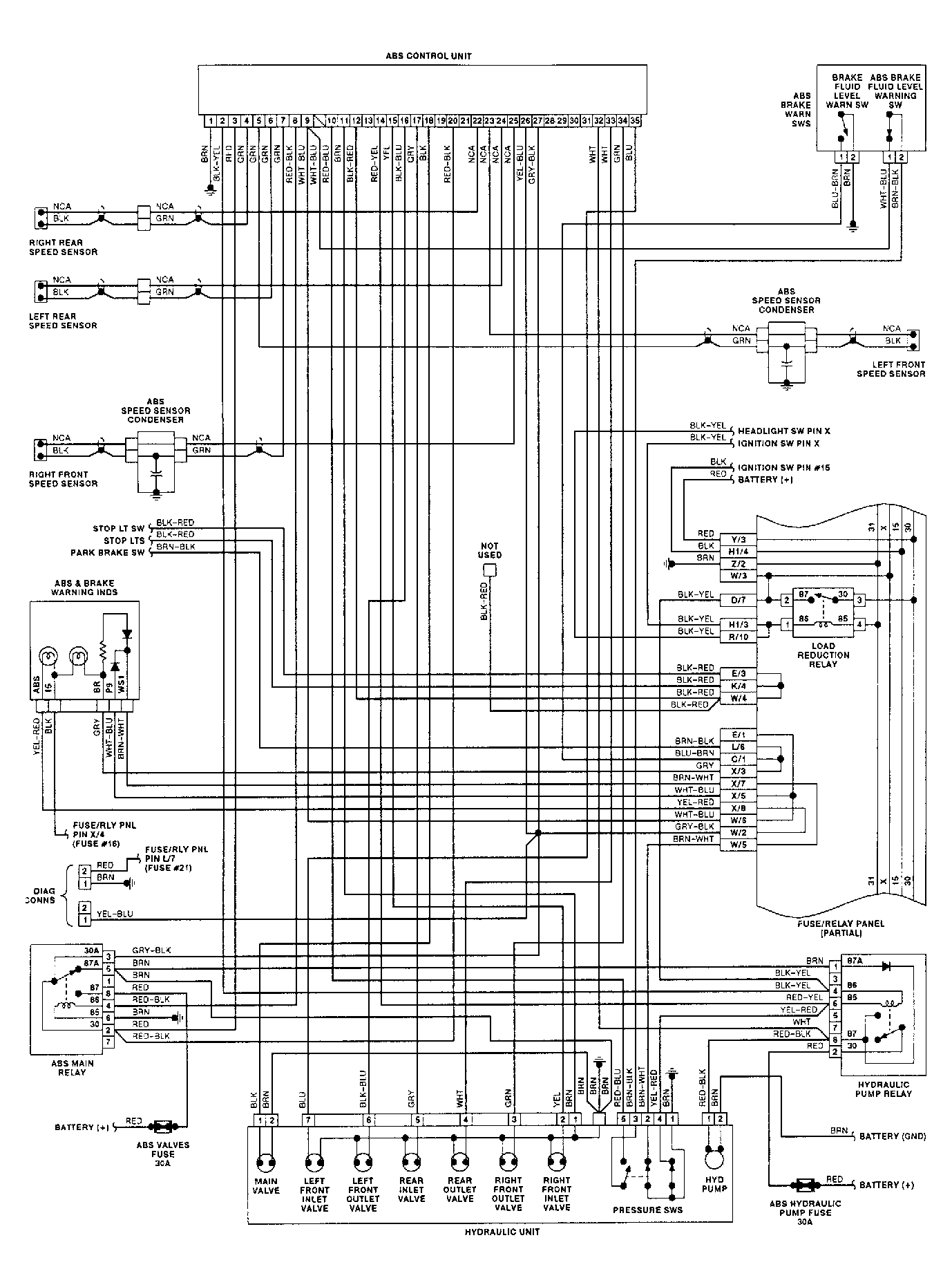

Fig 5: Corrado ABS Wiring Diagram (1992)

Fig 6: Jetta ABS Wiring Diagram (1992)

Fig 7: Passat ABS Wiring Diagram (1992)
