Component Locations

COMPONENT LOCATIONS

Component Location
Ground Connection (30) Beside Fuse/Relay Panel, Left Side. See Fig 1
Heated Seat Switch On Instrument Panel

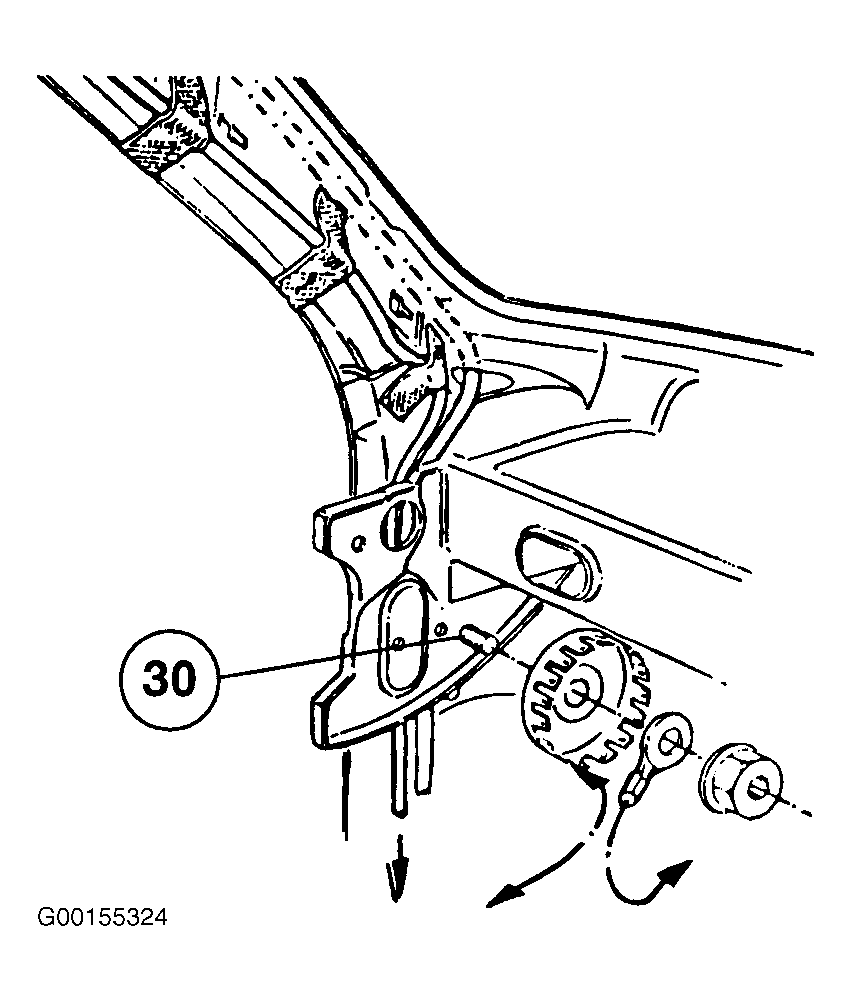

Fig 1: Locating Ground Connection (30)
G00155324Courtesy of AUDI OF AMERICA, INC.
