Component Locations

COMPONENT LOCATIONS

Component Location
Door Activator/Switch Behind Door Panel Trim & Moisture Barrier (1)
System Pump/Control Unit Left Side of Luggage Compartment (Sedan), Right Rear Luggage Compartment Floor (Wagon) (1)
(1) See Fig 1

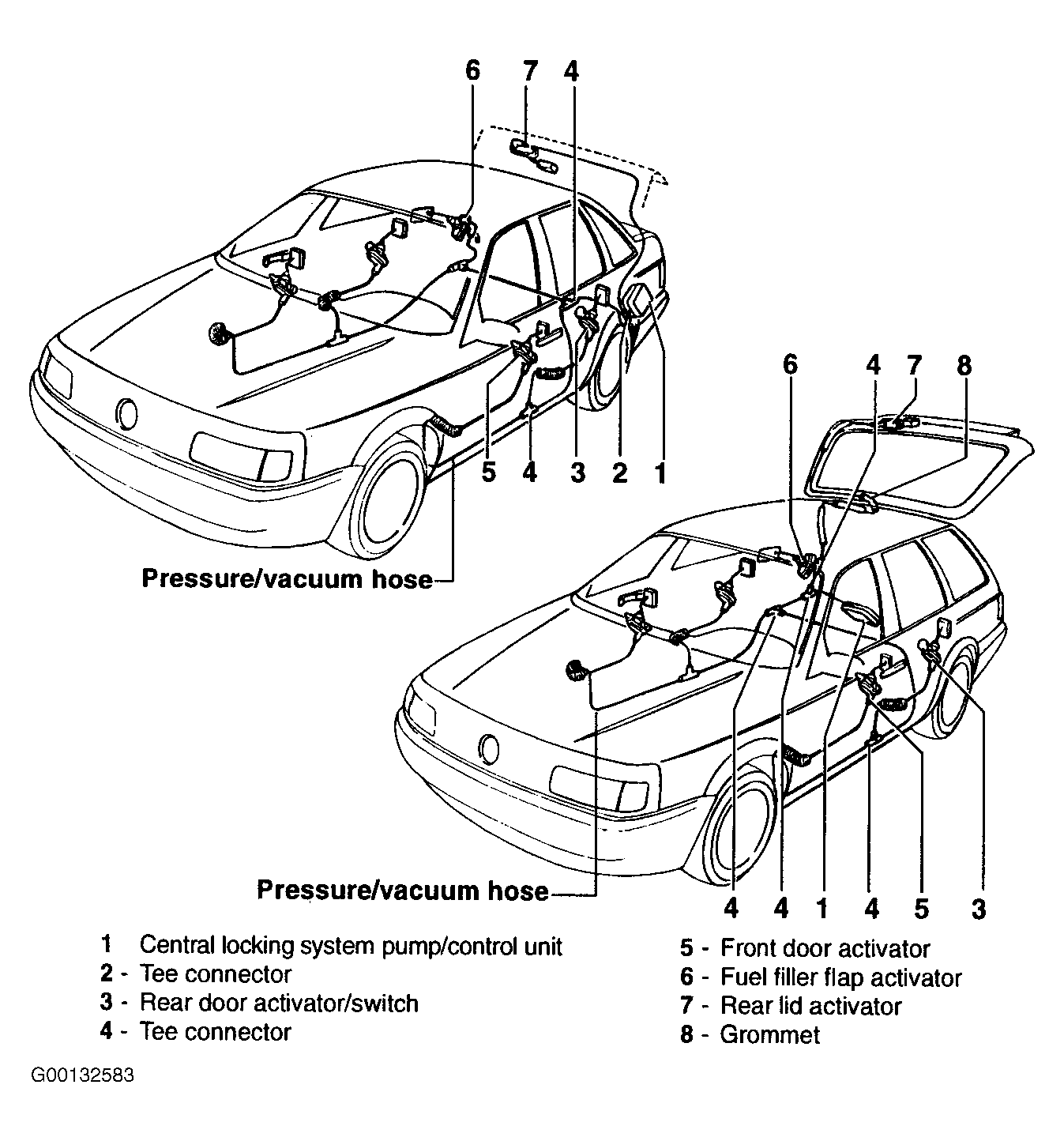

Fig 1: Locating Power Door Lock System Components
G00132583Courtesy of VOLKSWAGEN UNITED STATES, INC.
