Cruise Control Unit

Disconnect harness connector from cruise-control unit in center console. Connect multimeter (with adapter) to make the electrical checks indicated below. See Fig 1 to Fig 4 .

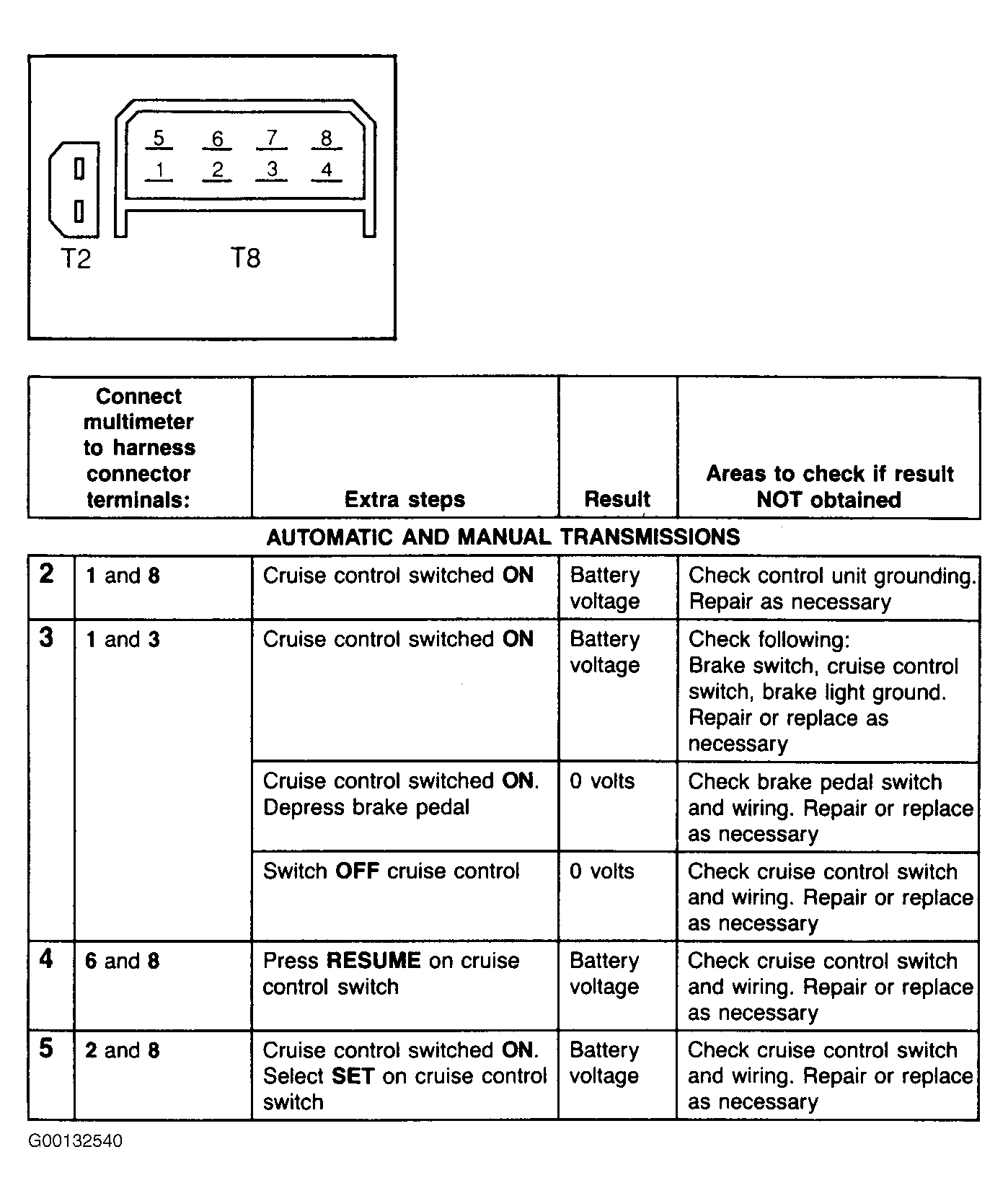

Fig 1: Testing Harness Connector (1 of 4)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

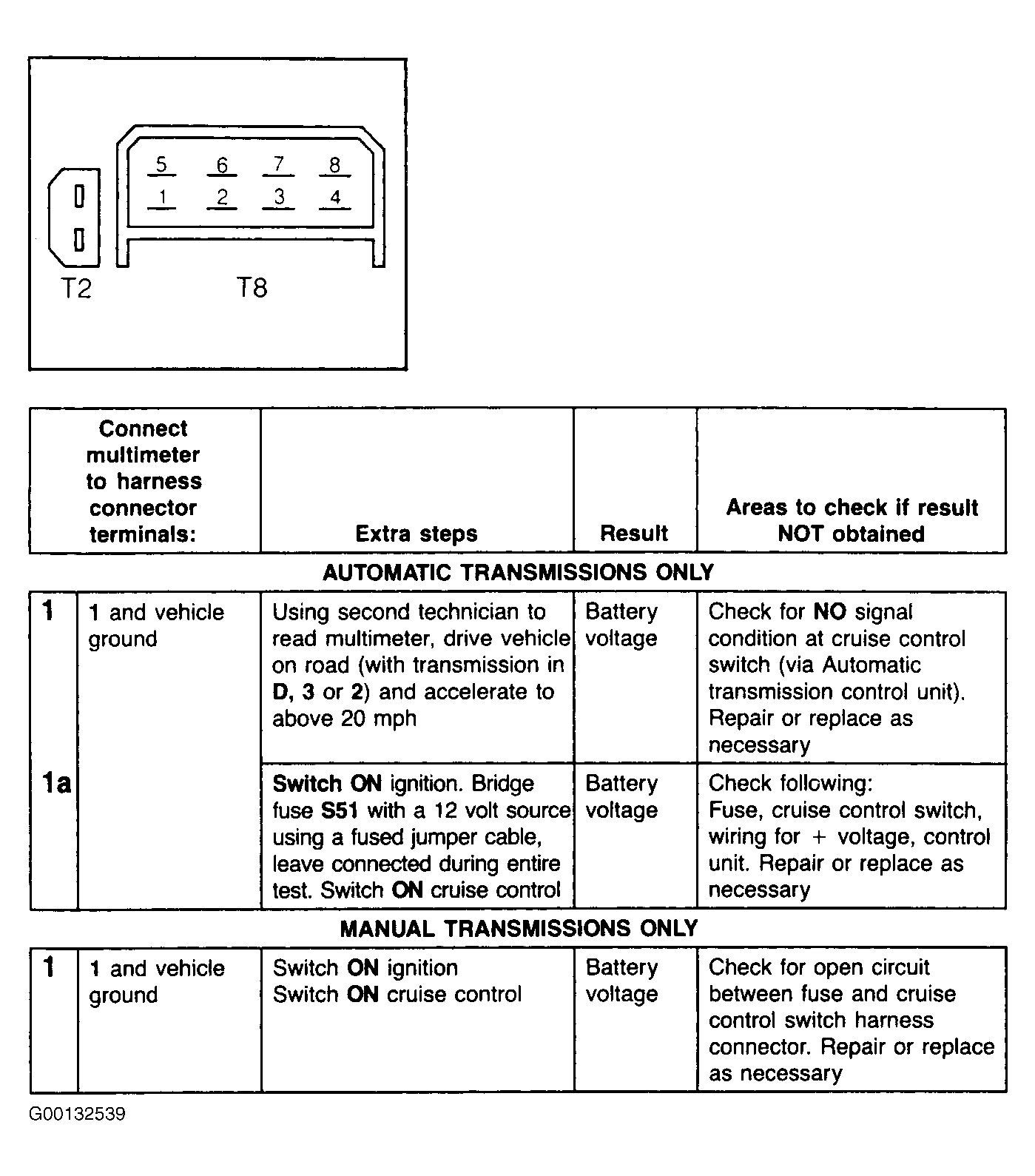

Fig 2: Testing Harness Connector (2 of 4)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 3: Testing Harness Connector (3 of 4)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

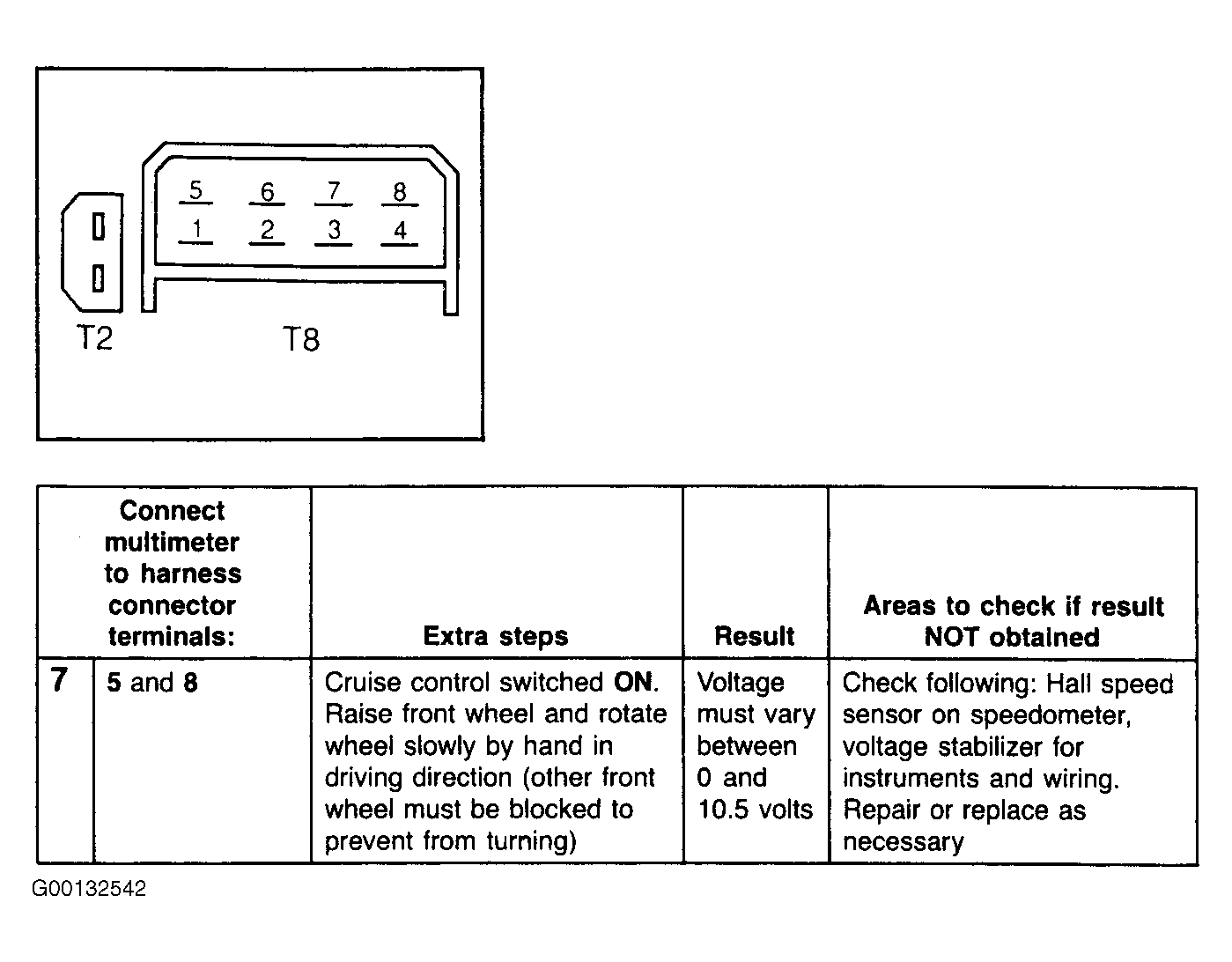

Fig 4: Testing Harness Connector (4 of 4)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
