Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
ABS Pump & Valve Fuse (Jetta 2.0L) On fuse/relay panel.
A/C-Heater Fuse (GTI 2.0L) On fuse/relay panel. See Figure .
A/C & Power Seat Fuse (Exept GTI 2.0L) On fuse/relay panel. See Figure .

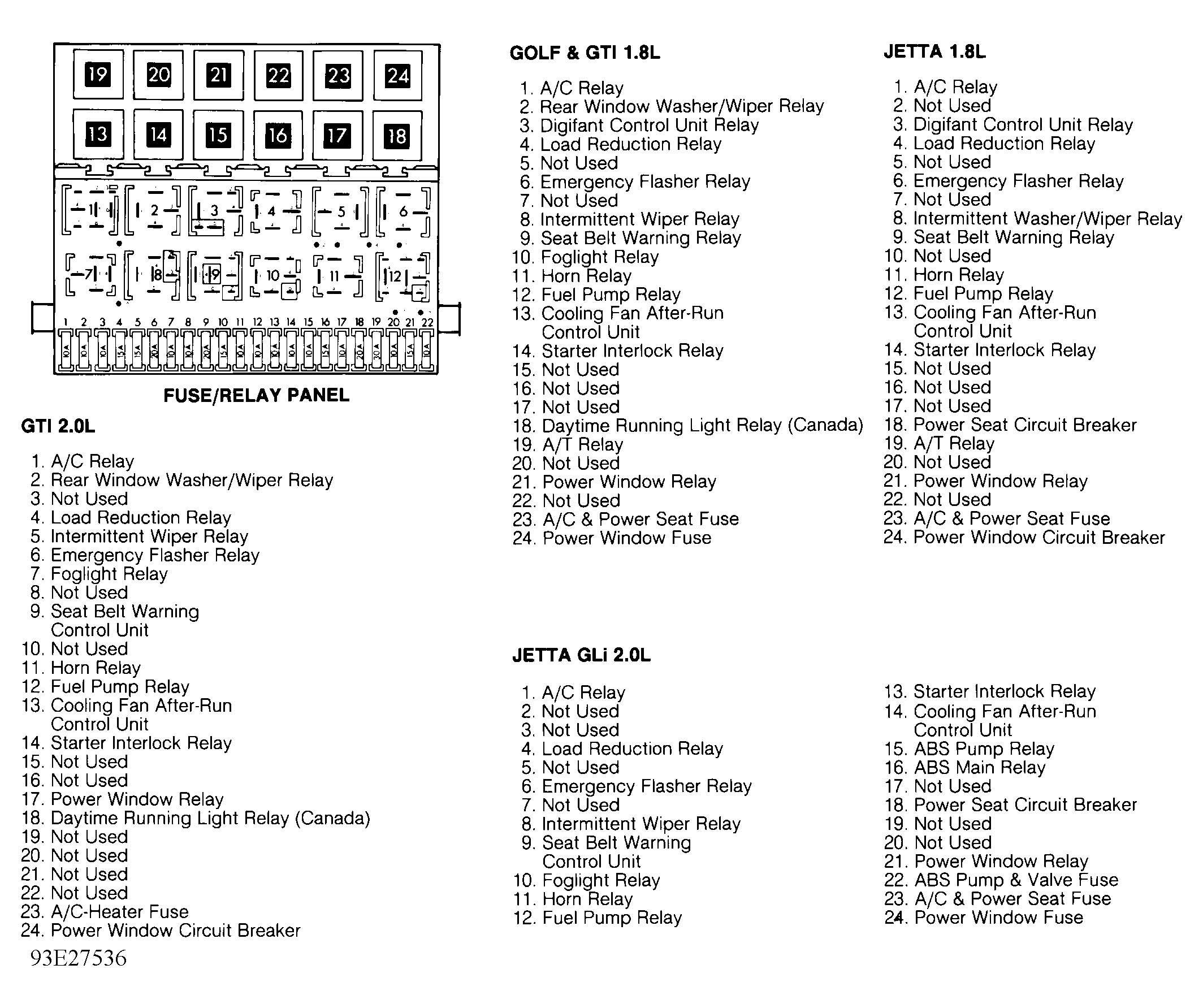

Fuse/Relay Panel Under left side of dash. See Figure .
Power Seat Circuit Breaker (Jetta) On fuse/relay panel. See Figure .
Power Window Circuit Breaker (GTI 2.0L & Jetta 1.8L) On fuse/relay panel. See Figure .
Power Window Fuse (Golf, GTI 1.8L & Jetta 2.0L) On fuse/relay panel. See Figure .
