Manual Transmission/Transaxle

Manual Transmission Specifications


Transmission Code Letters:





Transmission Type 5-Speed 02A

Technical Data 5-Speed Type 02A:





Continued:





Technical Data:

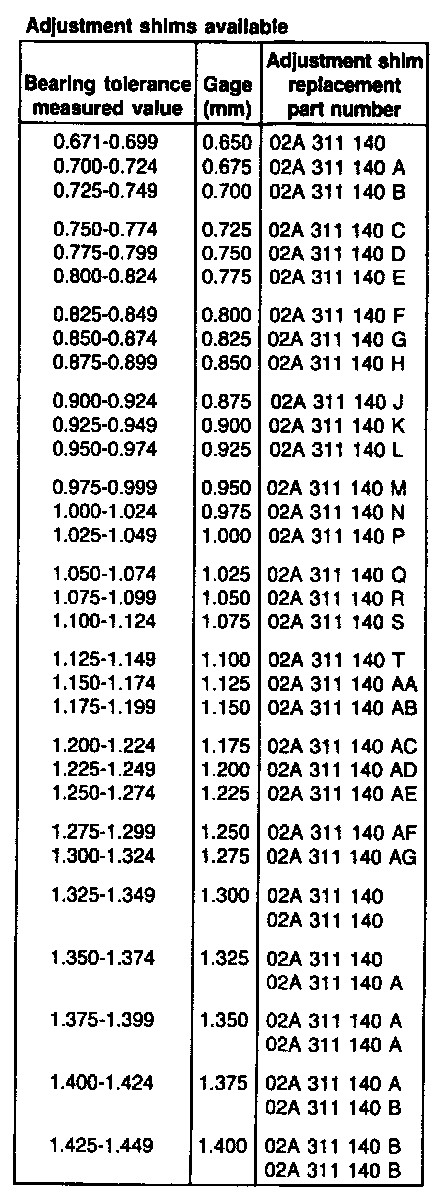

Adjustment Shim Table:





Specifications:
