System Specifications

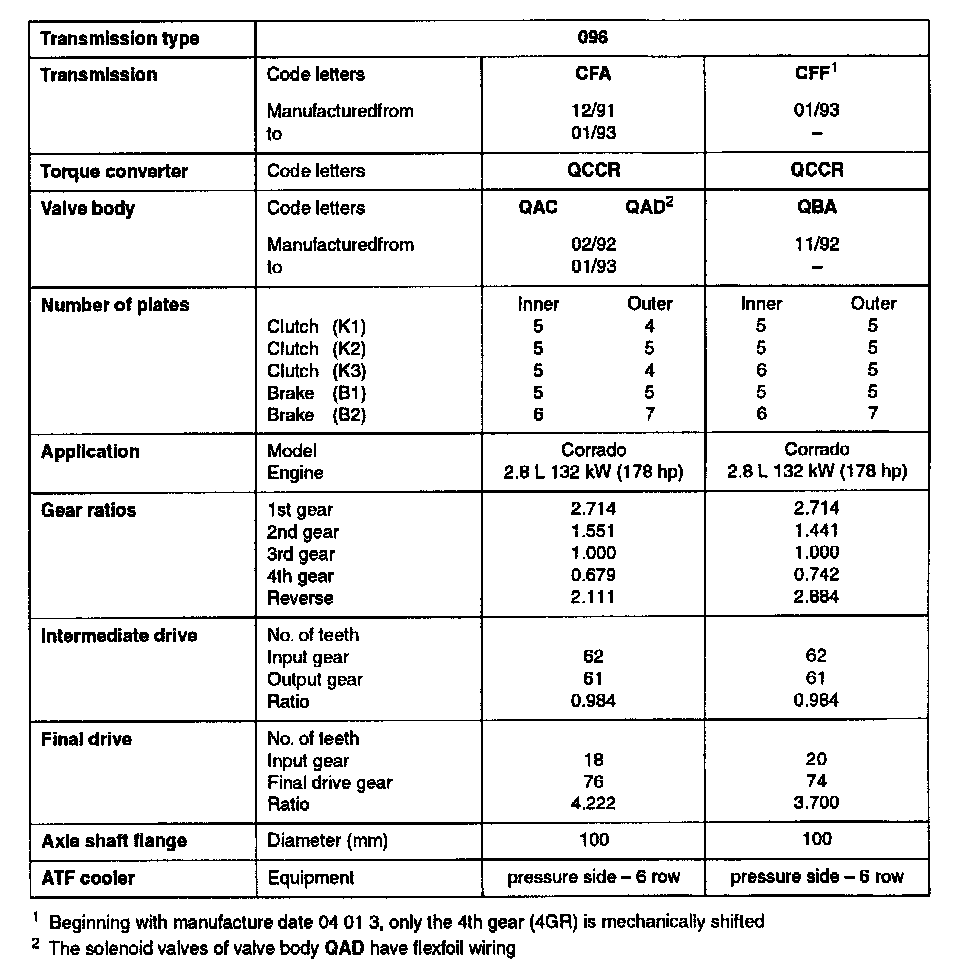

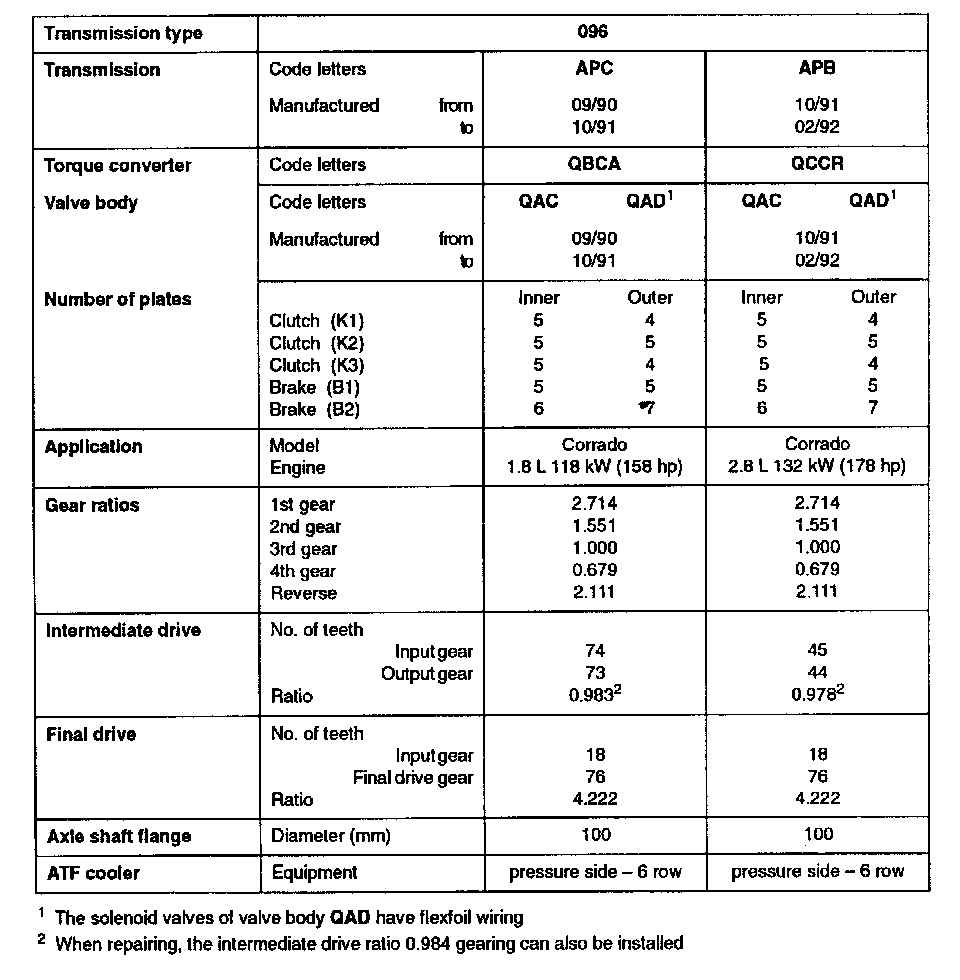

Automatic Transmission Specifications

Technical Data:





Technical Data:





Shift Point Specifications:




Shift Point Specifications:





Automatic Transmission Code Letters:





Code Letters, Type 096 Transmission:
