Emission Control Systems: Diagrams

Fuel Tank:

FUEL TANK DIAGRAM

Charcoal Canister And Cut-off Valve:

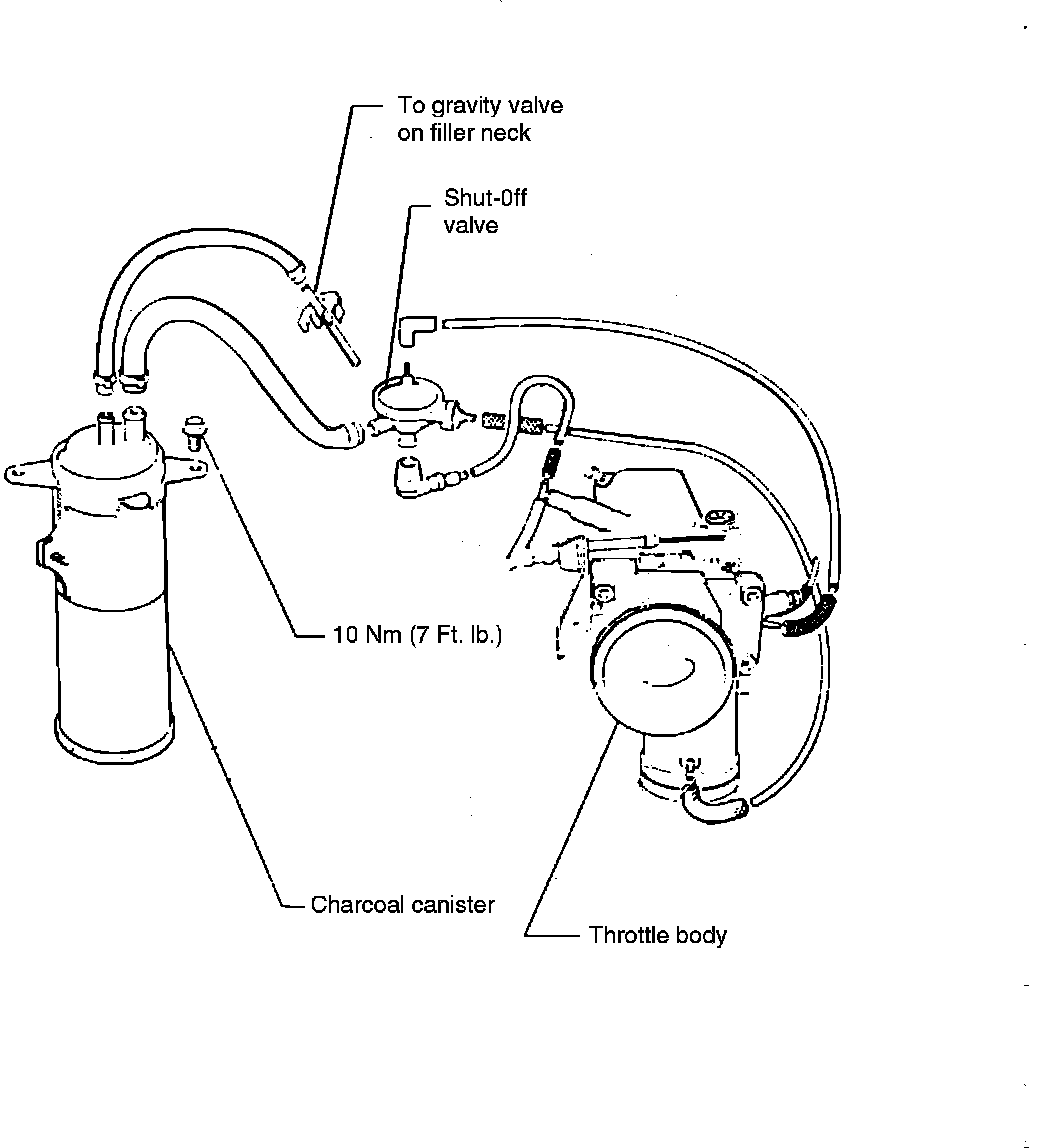

EVAPORATIVE EMISSION DIAGRAM

Intake Manifold Vacuum Locations:

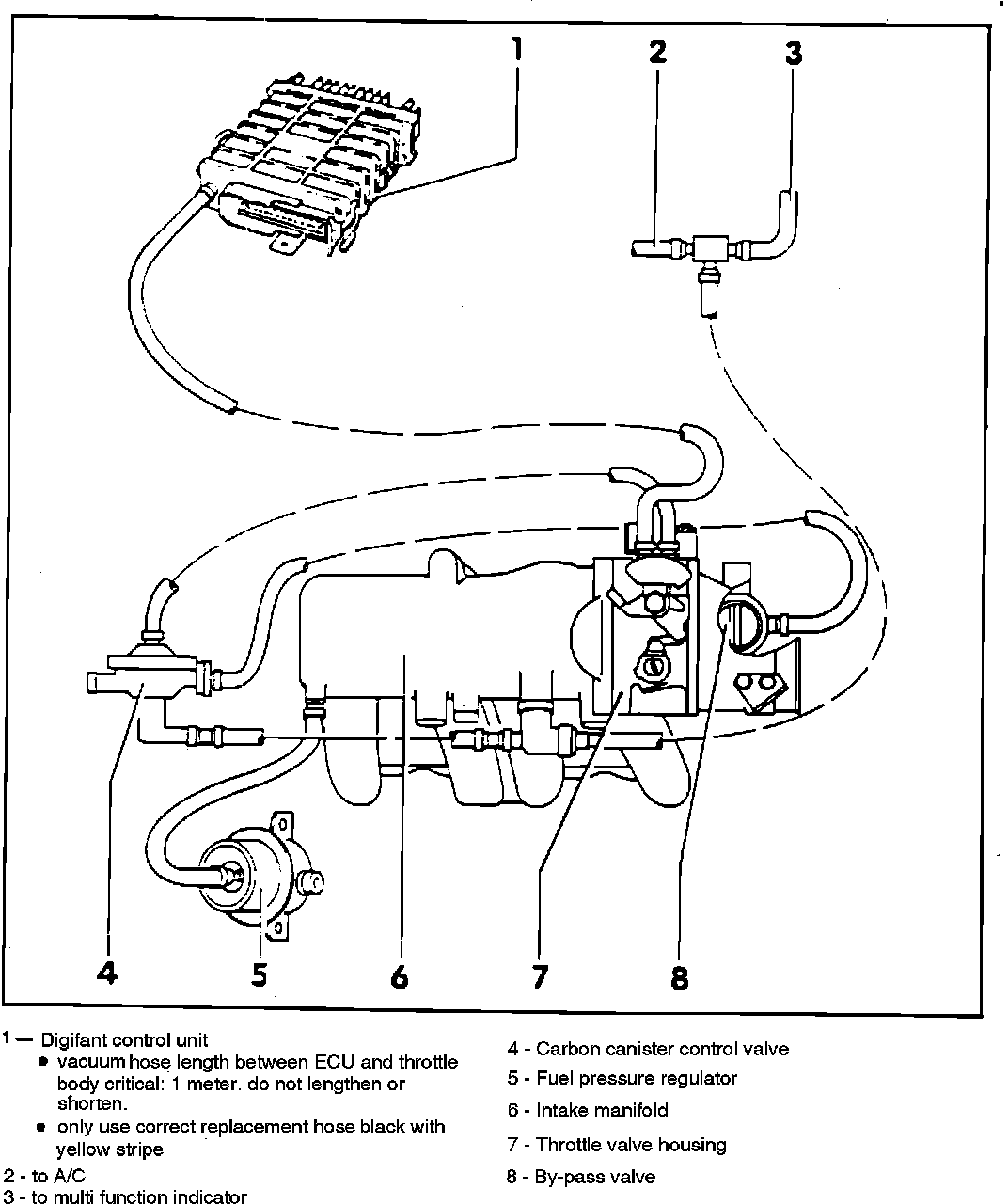

INTAKE MANIFOLD VACUUM DIAGRAM
