Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

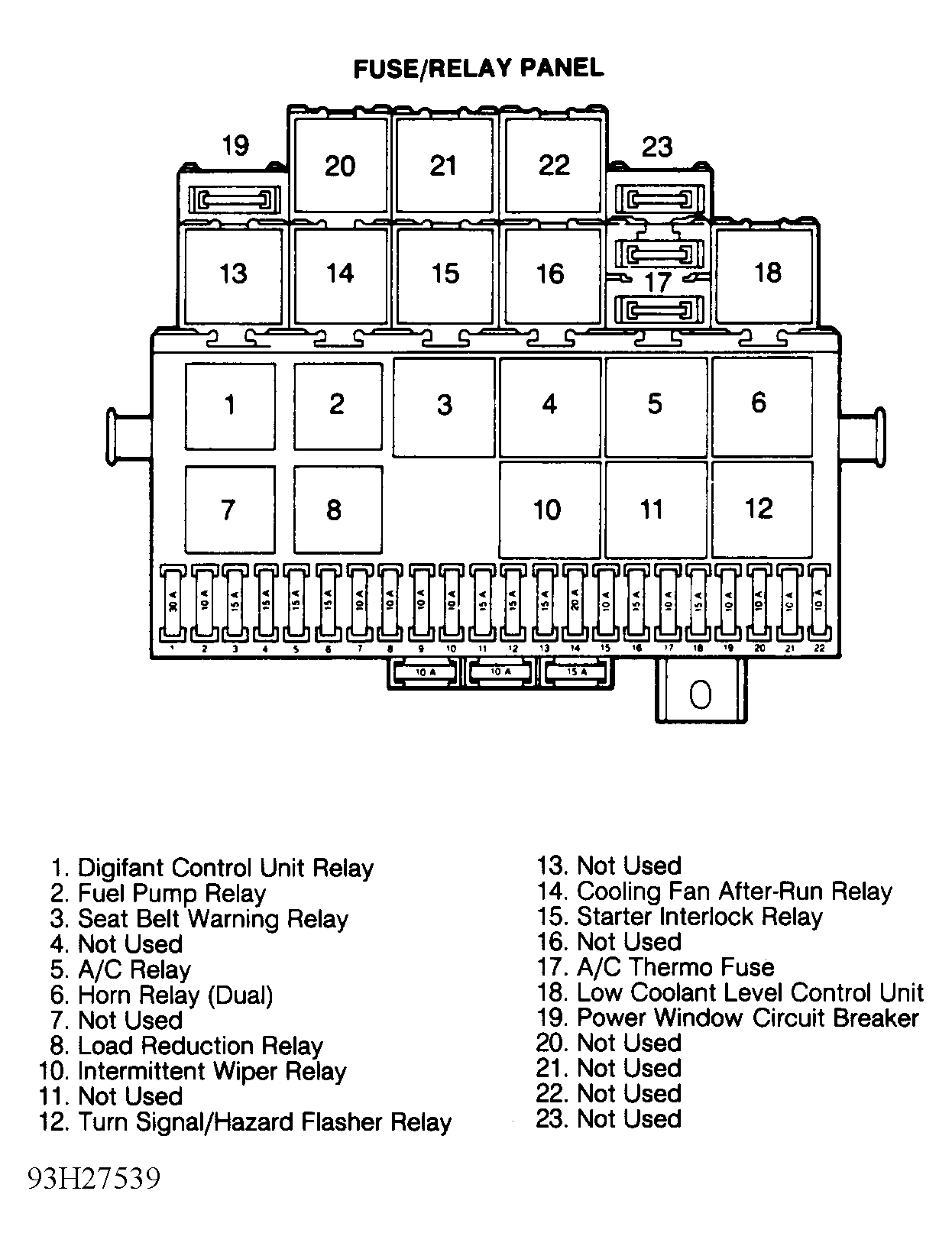

A/C Thermo Fuse On fuse/relay panel. See Figure .
Fuse/Relay Panel Under left side of dash. See Figure .
Power Window Circuit Breaker On fuse/relay panel. See Figure .
