Measurement Specifications

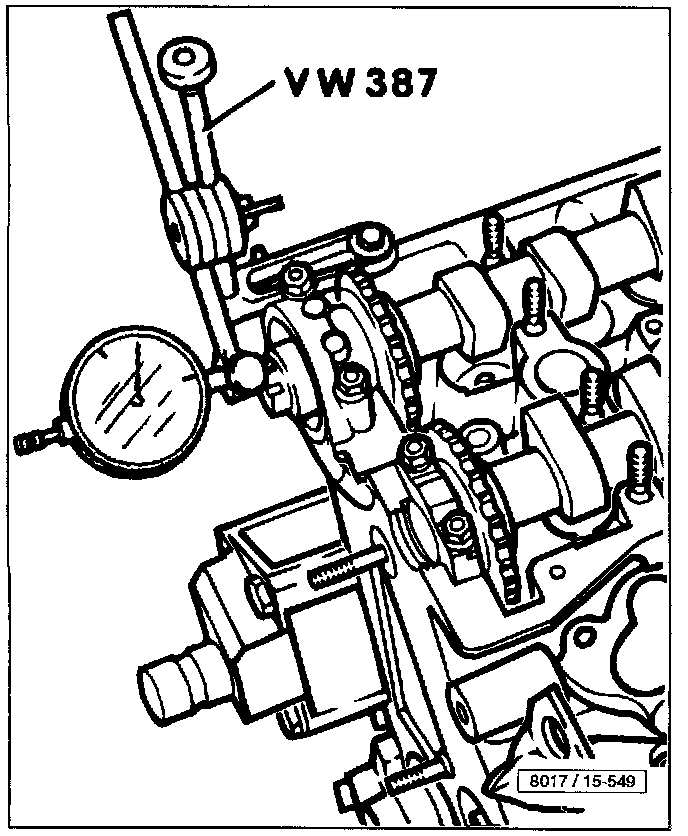

Checking Camshaft Axial Clearance:

Camshaft Axial Clearance:
Wear limit: 0.15 mm (0.006 in.)

Camshaft Radial Clearance [1]:
Wear limit: 0.1 mm (0.004 in.)


_________________________________
[1]: Torque bearing caps to 20 Nm (15 ft lb) for clearance check, final assembly torque is 15 Nm (11 ft lb).
