Channel 6 Interpretation

Diagnosis, Fault Memory - Passat

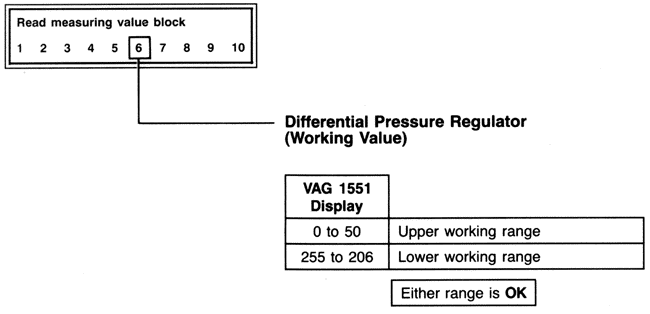

VAG 1551 Function 08, Channel 6 Interpretation





A Value of 50 Equals + 10 Milliamps of Differential Pressure Regulator Current

A Value of 0 Equals 0 Milliamps of Differential Pressure Regulator Current

A Value of 206 Equals -10 Milliamps of Differential Pressure Regulator Current

If adjustments are required, follow the Repair Manual procedures. Adjustments cannot be made using the VAG 1551 alone.
