Wheel Alignment - Specifications

90vw09
Subject: Wheel alignment specifications (supercedes Technical Bulletin, Group 44, 90-03, of 7/31/90)

Model(s): Corrado all m.y.
Group: 44

Number: 90-07

Date: December 31, 1990

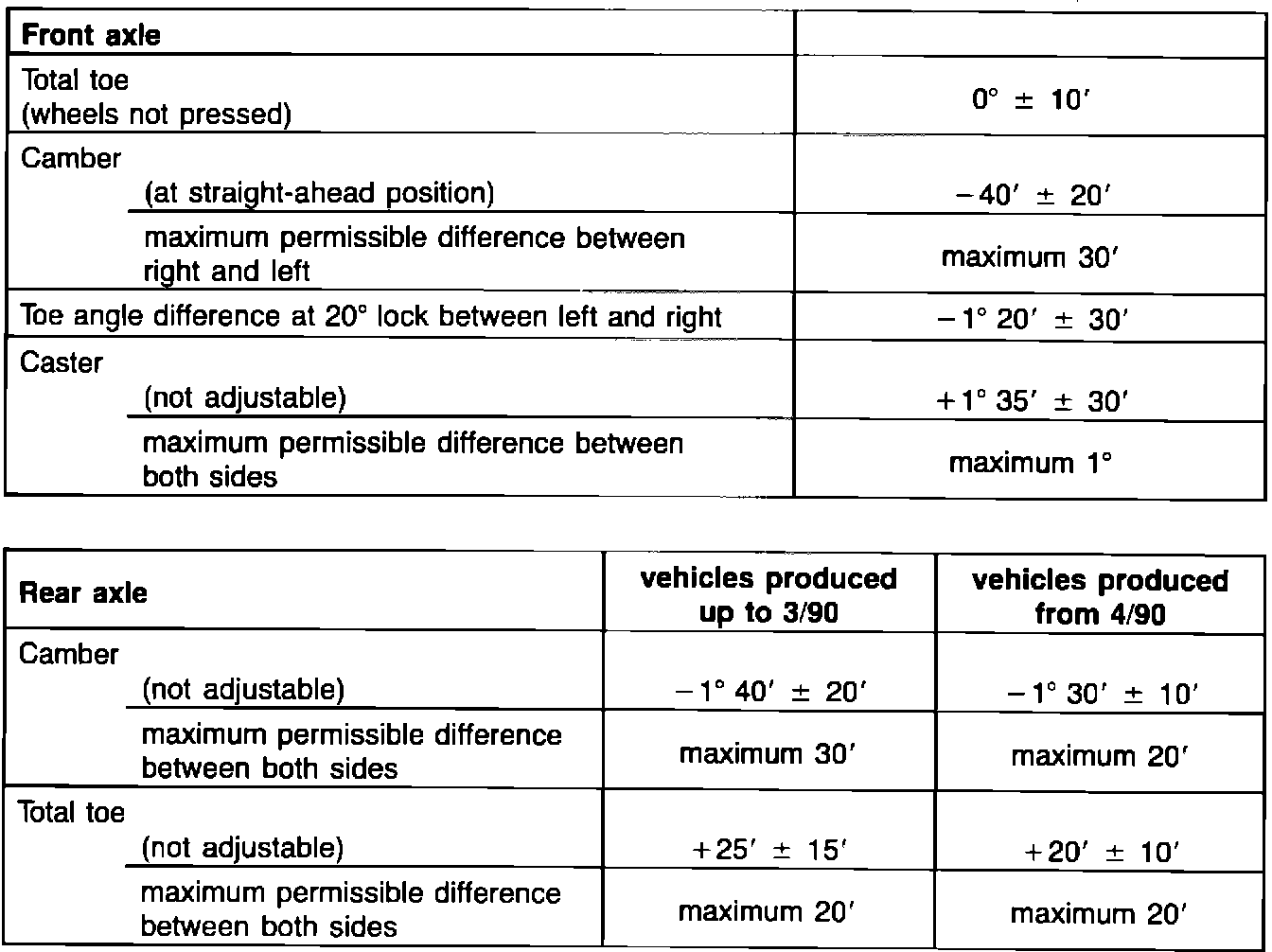

The following wheel alignment specifications are valid for all Corrado vehicles.
CAUTION

Front camber corrections must be made at the suspension strut/wheel bearing housing connection only. Do not alter the position of the ball joint on the control arm.
