Transmission Specifications and Clearances

Transmission Specifications

5 Speed Manual Transmission Gearbox Specifications (020):





5 Speed Manual Gearbox Specifications (020):

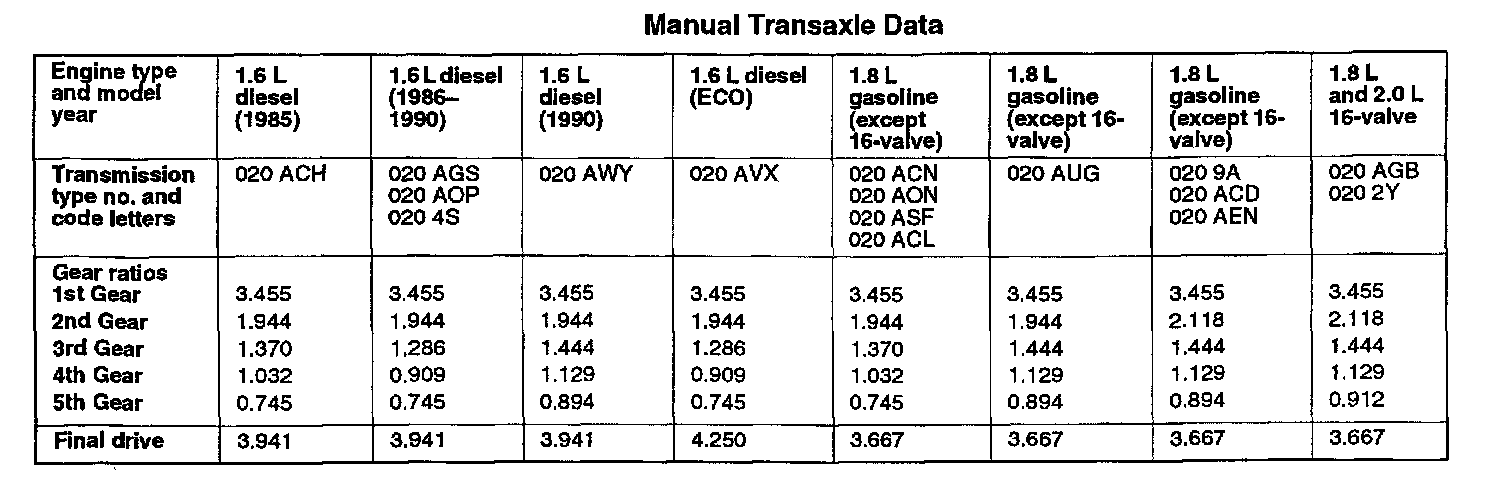

Manual Transaxle Specifications:





Synchronizer Ring Wear Specifications:





Gear Ratio Specifications:





Clutch And Synchronizer Ring Specifications:
