Emission Control Systems: Diagrams
CIS-E Vacuum Diagram:

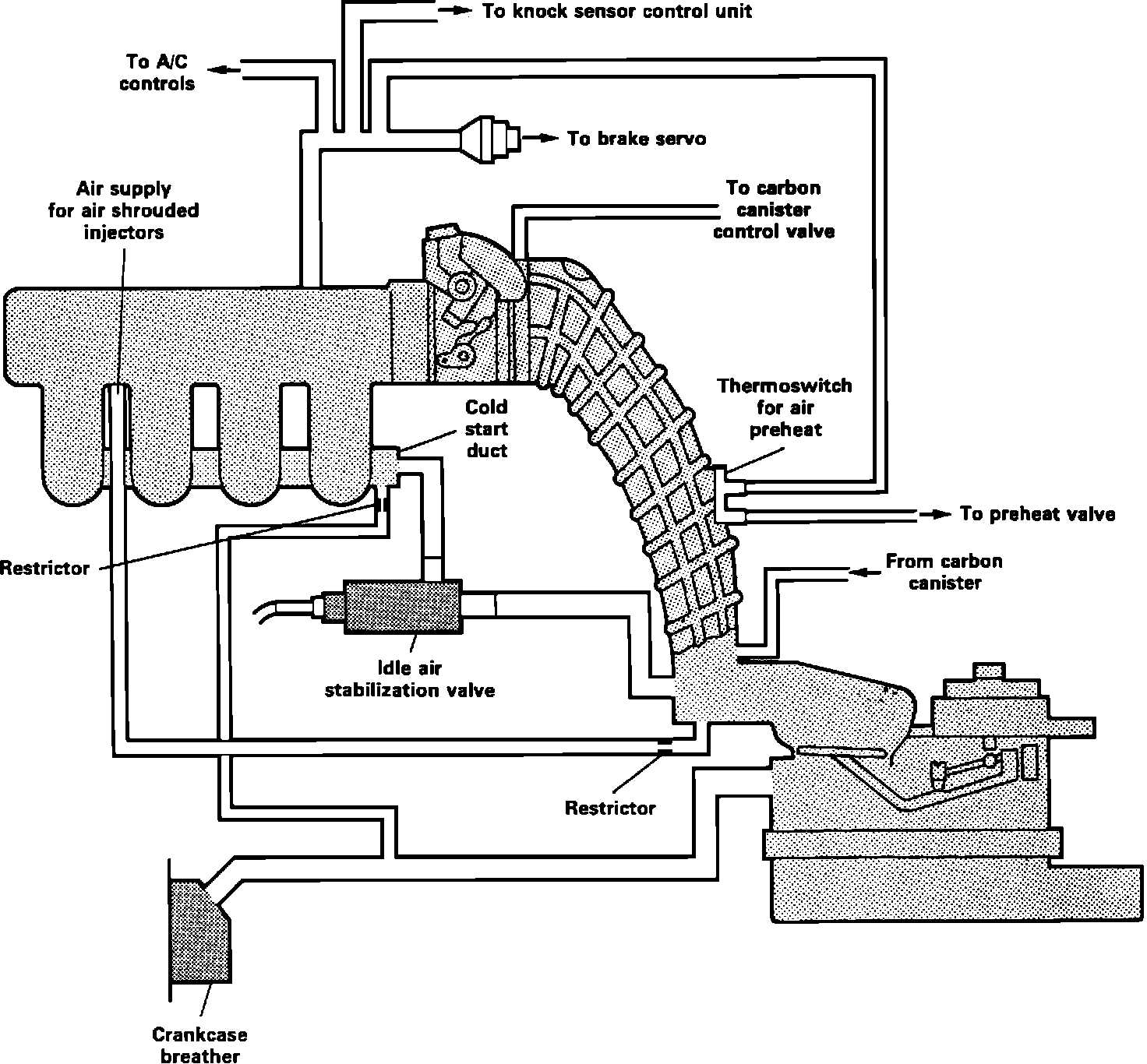

SYSTEM DIAGRAM
16v Vacuum Hose Diagram:

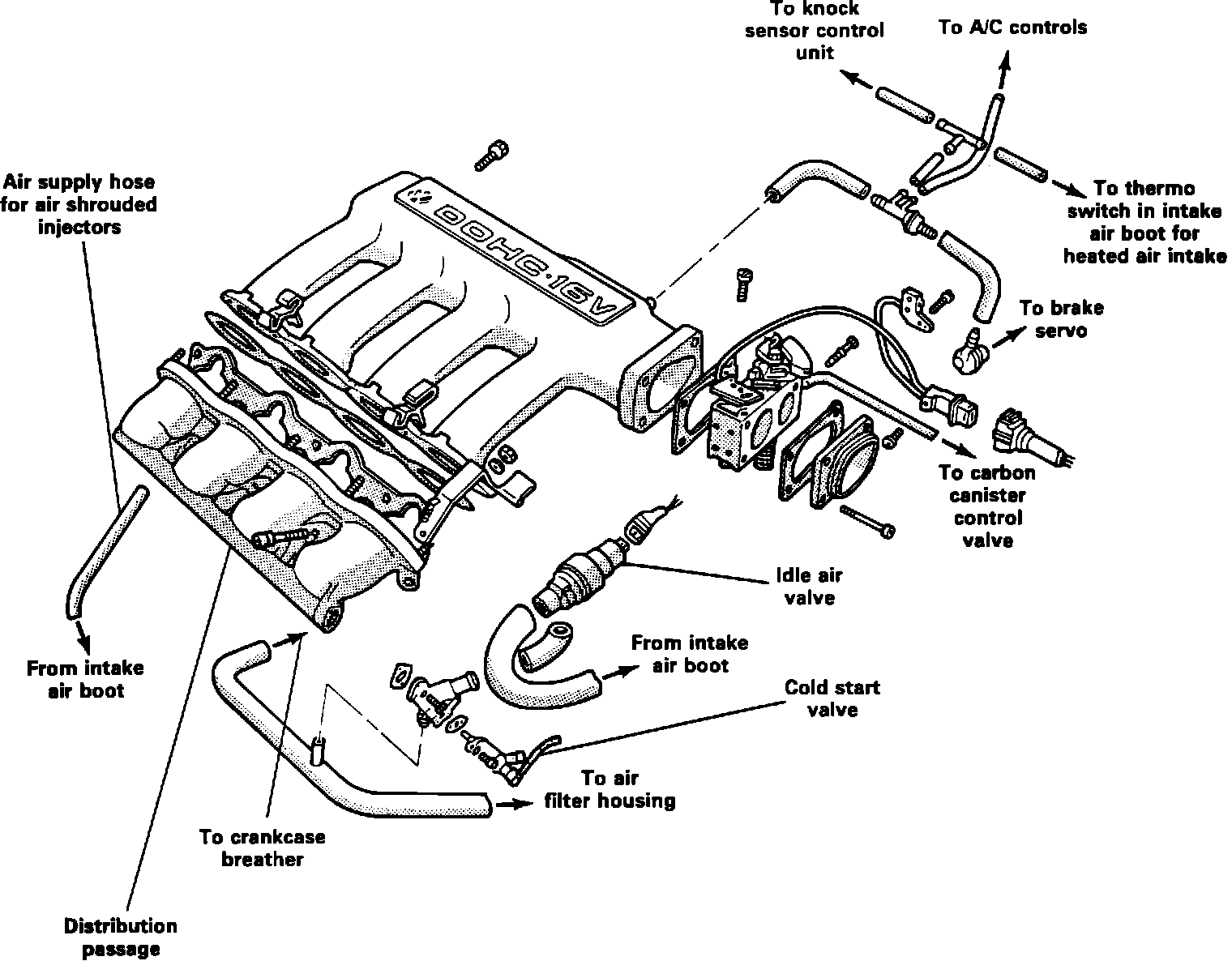

INTAKE MANIFOLD DIAGRAM
Fuel Tank:

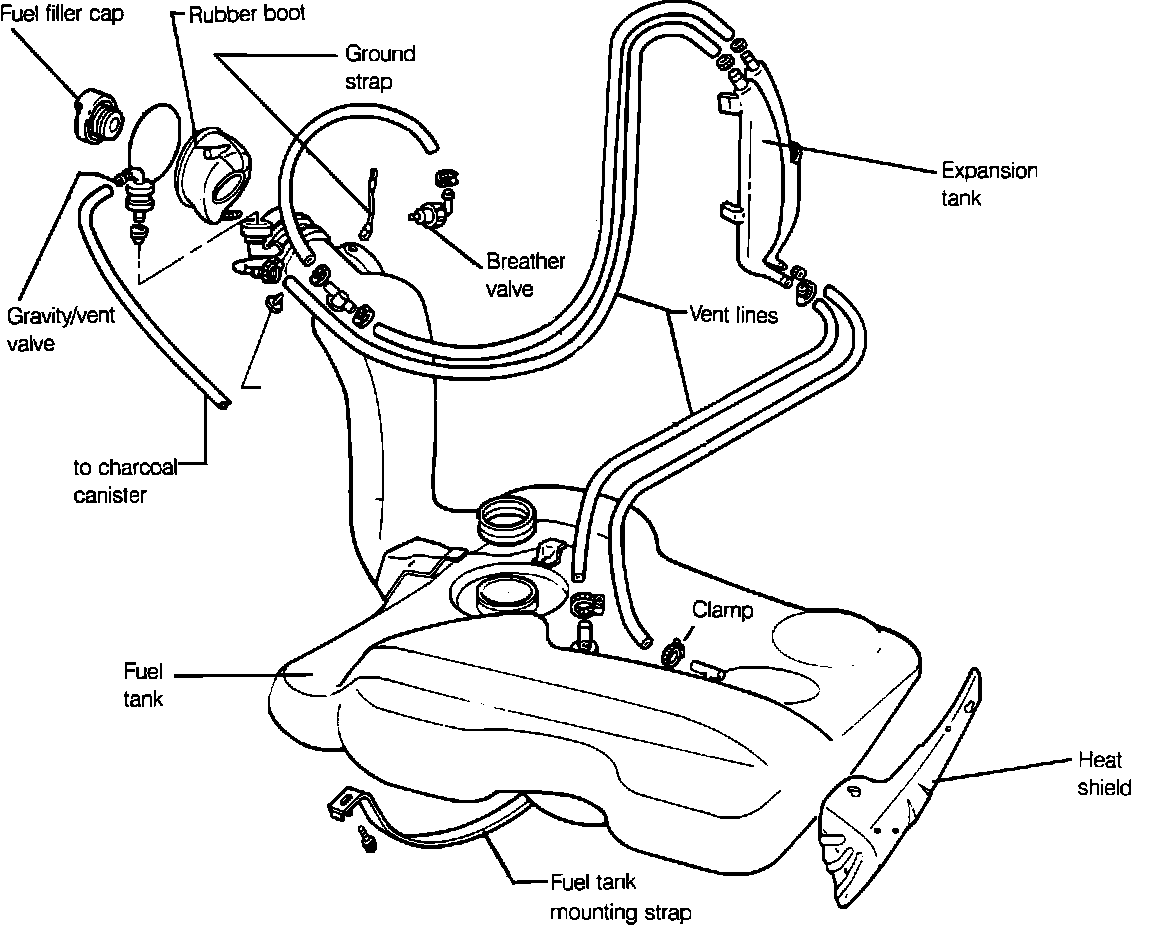

FUEL TANK DIAGRAM
Fig. 28 Vacuum Hose Diagram, Jetta/Passat (16V):

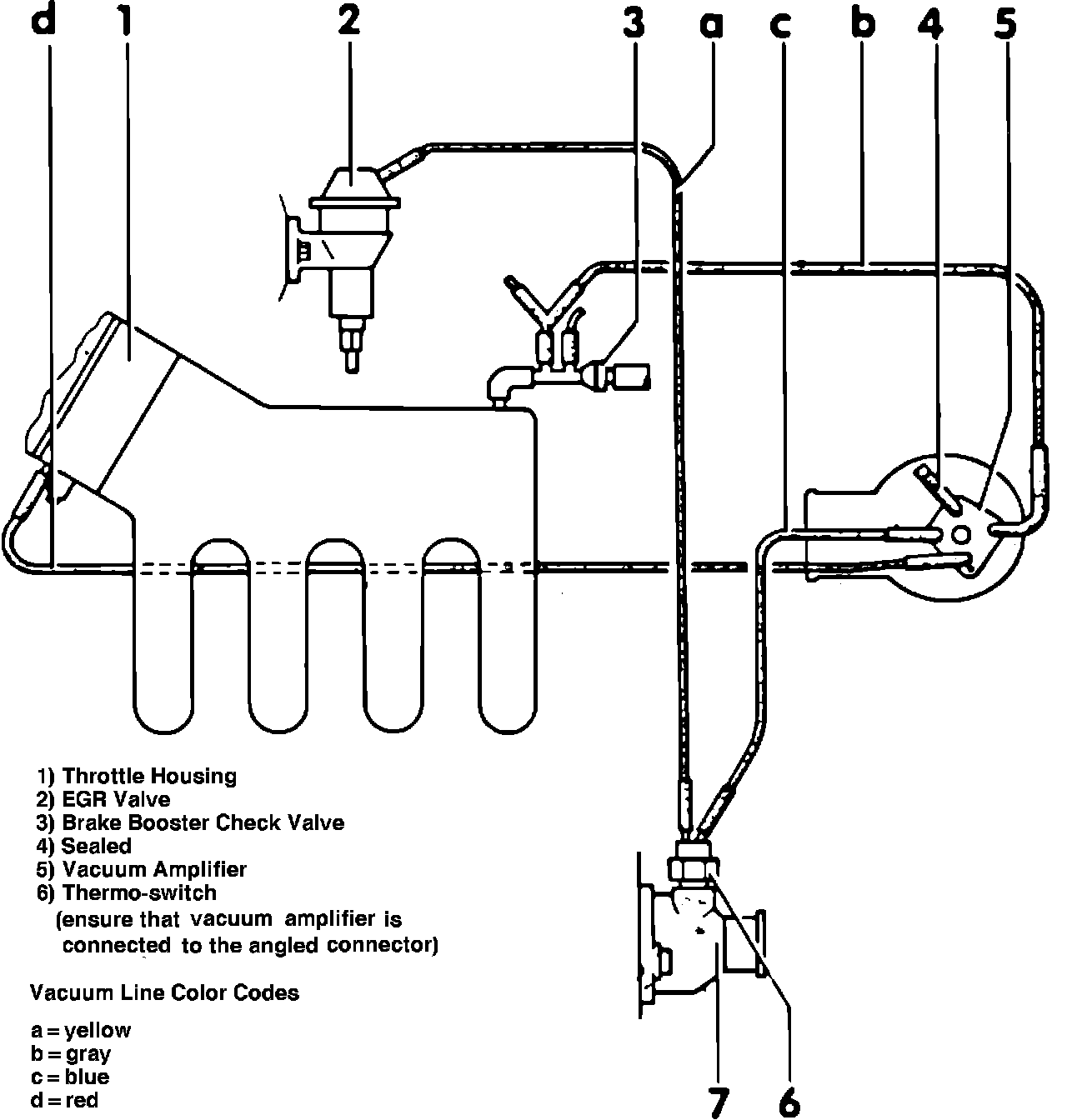

VACUUM DIAGRAM
Fig. 40 Evaporative Emissions Control (EEC) System, 16V:
EVAPORATIVE EMISSIONS DIAGRAM
