Temperature Control Lever Adjustments

Move temperature control lever to extreme left position. Place heater control valve lever in closed position. Secure cable with a clip.

Fig 1: Exploded View of Heater System (Cabriolet & Fox)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

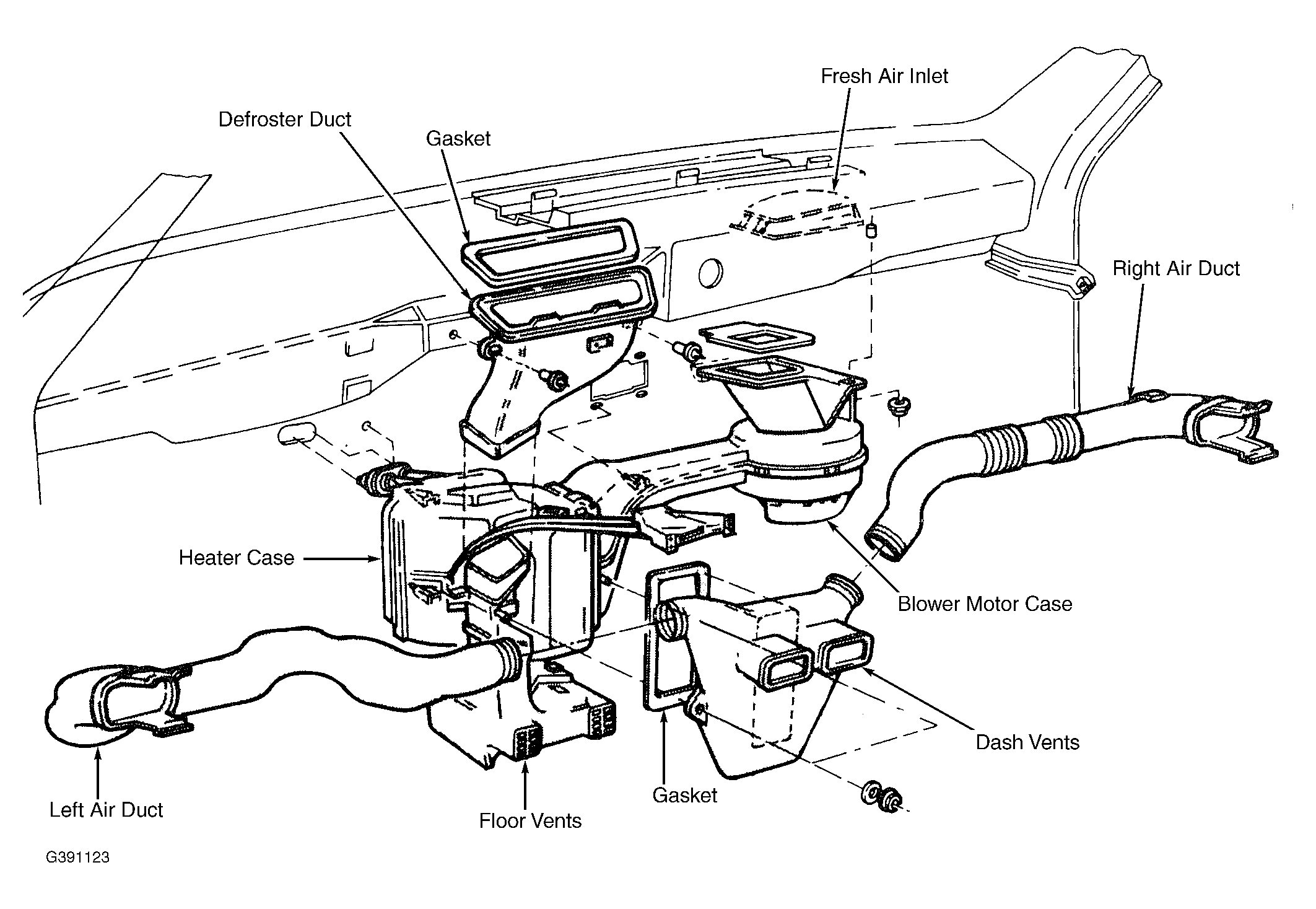

Fig 2: Exploded View of Heater System (Golf GL, GTI, Jetta & Jetta GLi)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

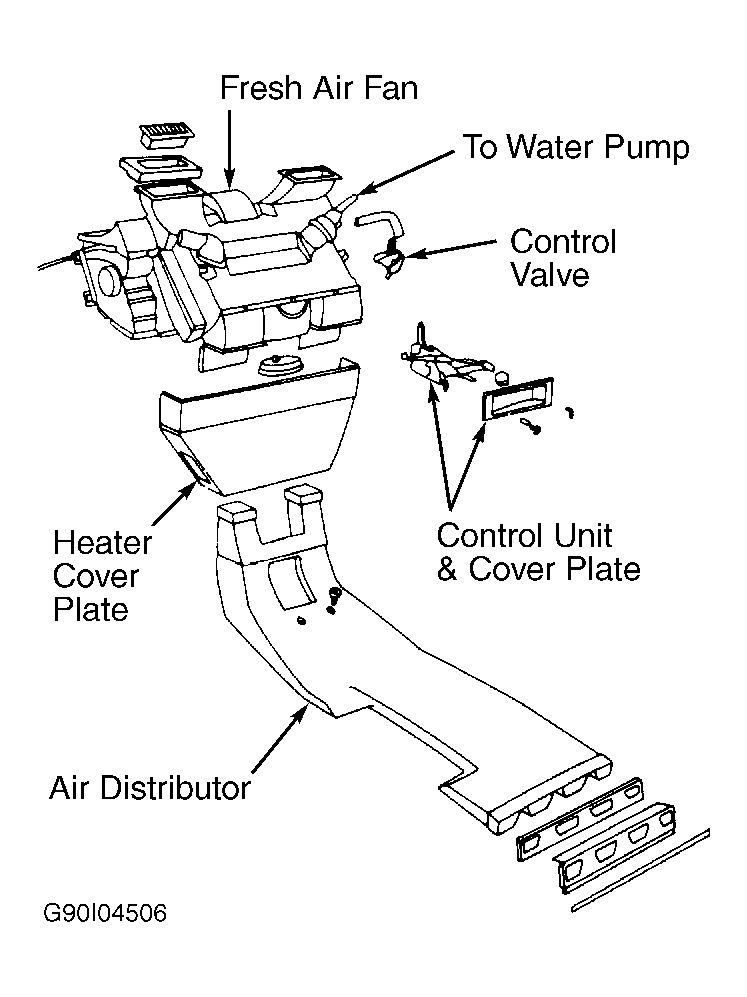

Fig 3: Exploded View of Heater System (Vanagon)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
