| Auto. Trans. Torque Plate-to-Crankshaft Bolts |
81 (110) |
| Connecting Rod Nuts |
33 (45) |
| Coolant Drain Plug |
37 (50) |
| Coolant Pipe-to-Cylinder Head Nuts |
15 (20) |
| Crankcase Half Nuts |
| 8 mm |
15 (20) |
| 10 mm |
22 (30) |
| Cylinder Head Nuts |
33 (45) |

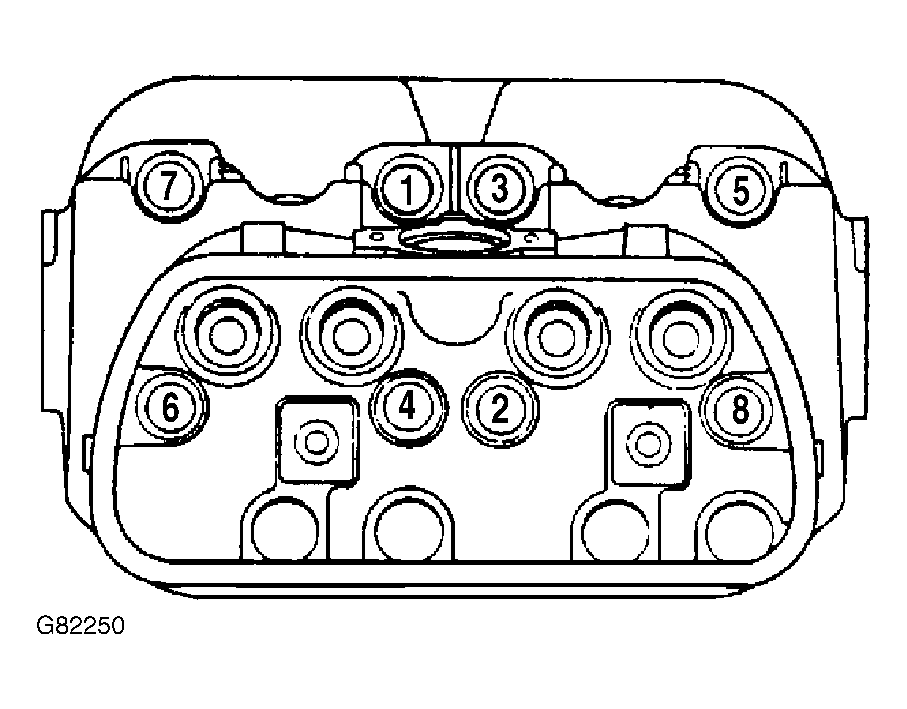

| Cylinder Head-to-Crankcase |
| Step 1 |
7 (10) |
| Step 2 |
30 (40) |
| Step 3 |
37 (50) |
| Engine-to-Transaxle Nuts |
22 (30) |
| Exhaust Flange-to-Cylinder Head Nuts |
15 (20) |
| Flywheel-to-Crankshaft Bolts |
81 (110) |
| Oil Drain Plug |
19 (25) |
| Oil Pump-to-Crankcase Nuts |
19 (25) |
| Pressure Plate-to-Flywheel Bolts |
19 (25) |
| Pulley-to-Crankshaft Bolt |
| Single "V" Pulley |
44 (60) |
| Triple "V" Pulley |
258 (350) |
| Rocker Shaft-to-Cylinder Head Nuts |
19 (25) |
| Torque Converter-to-Drive Plate Bolts |
22 (30) |
| Water Pump-to-Crankcase Bolts |
15 (20) |
