Component Locations

COMPONENT LOCATIONS

Component Location
Driver's Seat Heater Control Module (Relay) (1) Fuse Box
Passenger's Seat Heater Control Module (Relay) (1) Fuse Box
Fuse (10-Amp) Fuse Box (S14)
Fuse Box Lower Left Side Of Dash On Driver's Side
Heating Element (Backrest) Backrest Cushion
Heating Element (Seat) Seat Cushion
Seat Heater Regulator Switch(s) Dash Panel
(1) For 1990-92, Engine Code PG 1.8L.

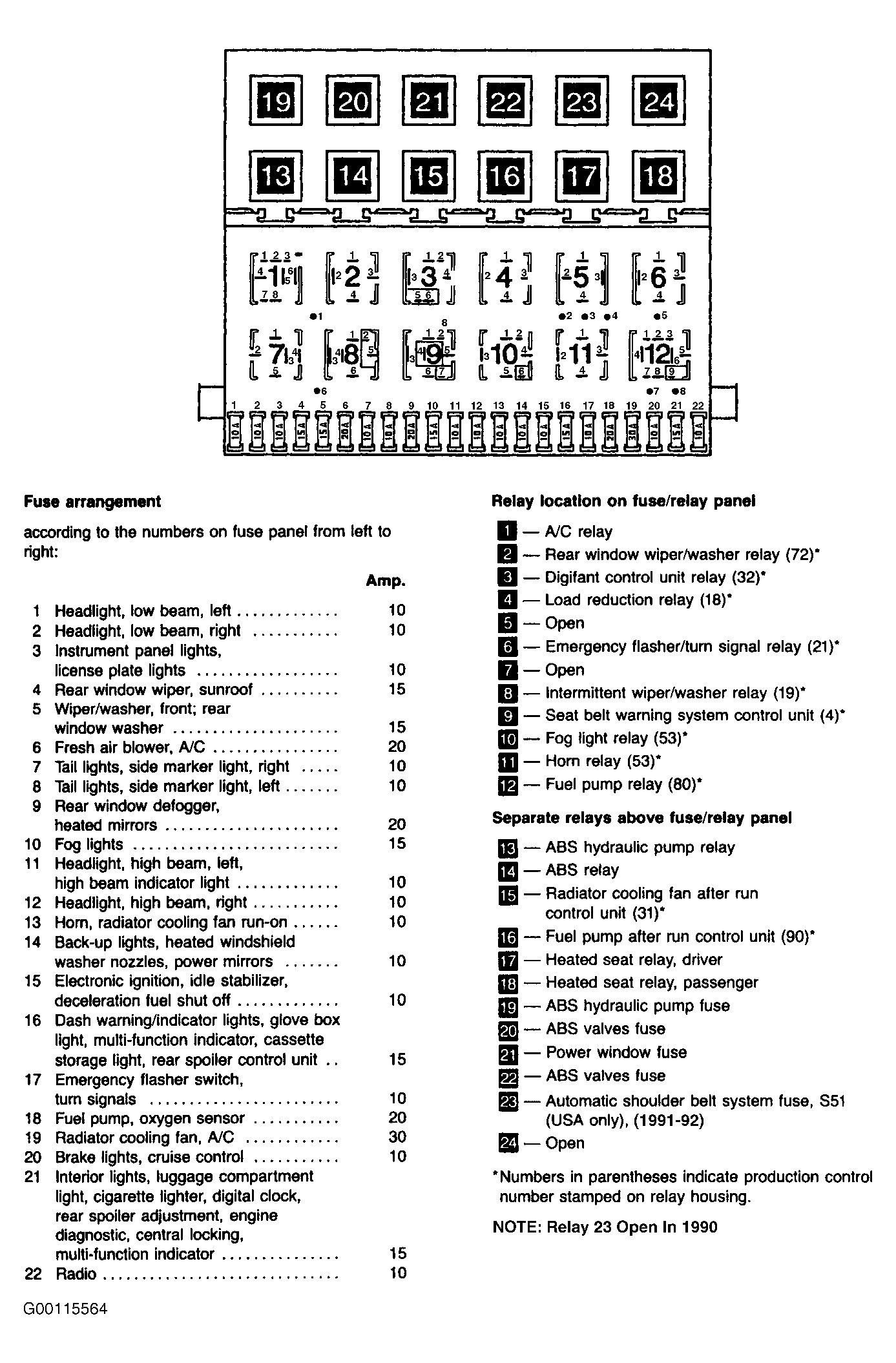

Fig 1: Identifying Fuse & Relay Locations (1990-92, Engine Code PG, 1.8L)
G00115564Courtesy of VOLKSWAGEN UNITED STATES, INC.

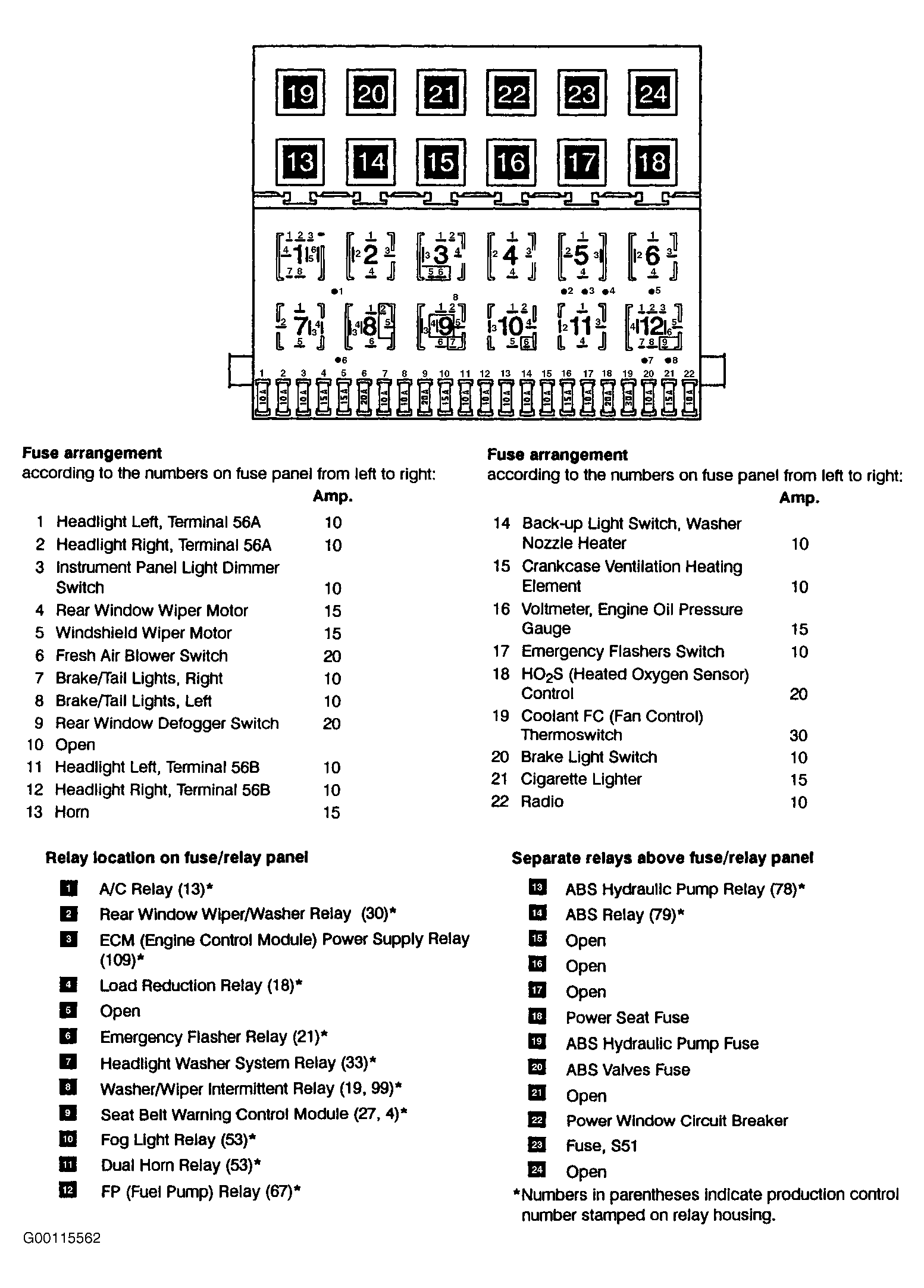

Fig 2: Identifying Fuse & Relay Locations (1992-93, Engine Code 2.8L V6, AAA to 1/93)
G00115562Courtesy of VOLKSWAGEN UNITED STATES, INC.

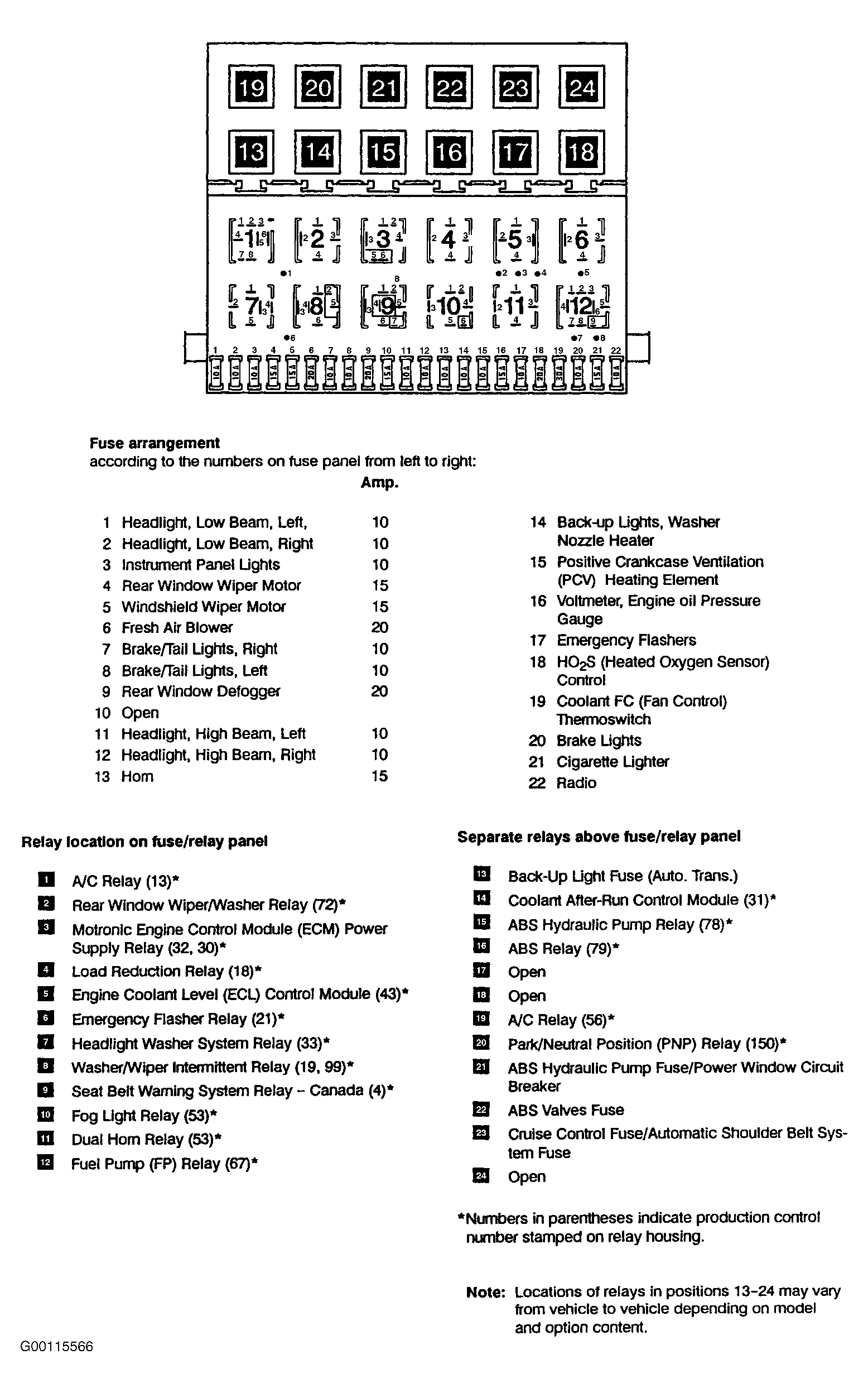

Fig 3: Identifying Fuse & Relay Locations (1993, Engine Code 2.8L V6, AAA from 1/93)
G00115566Courtesy of VOLKSWAGEN UNITED STATES, INC.

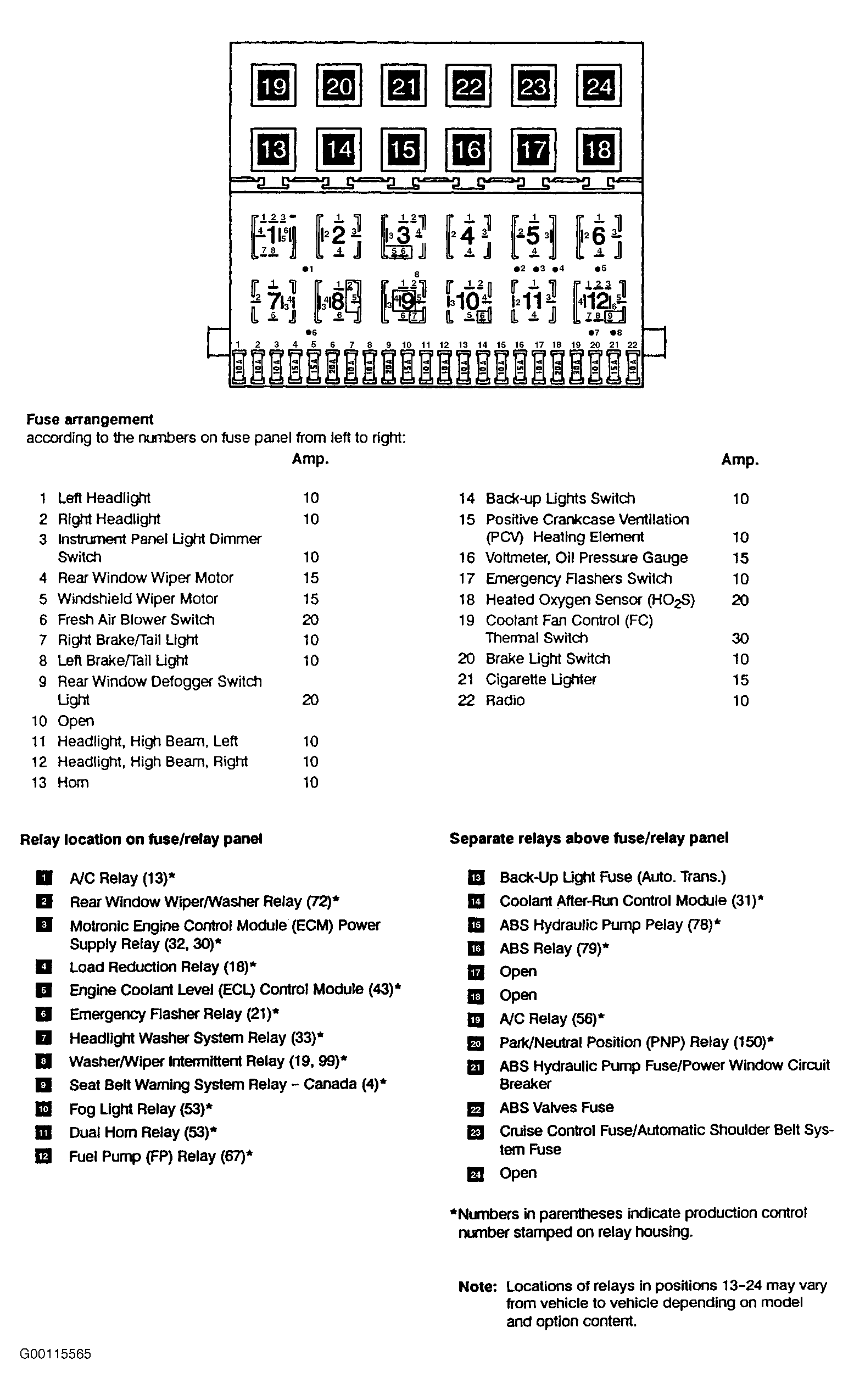

Fig 4: Identifying Fuse & Relay Locations (1994, Engine Code 2.8L V6, AAA from 3/94)
G00115565Courtesy of VOLKSWAGEN UNITED STATES, INC.
