Wiring Diagrams

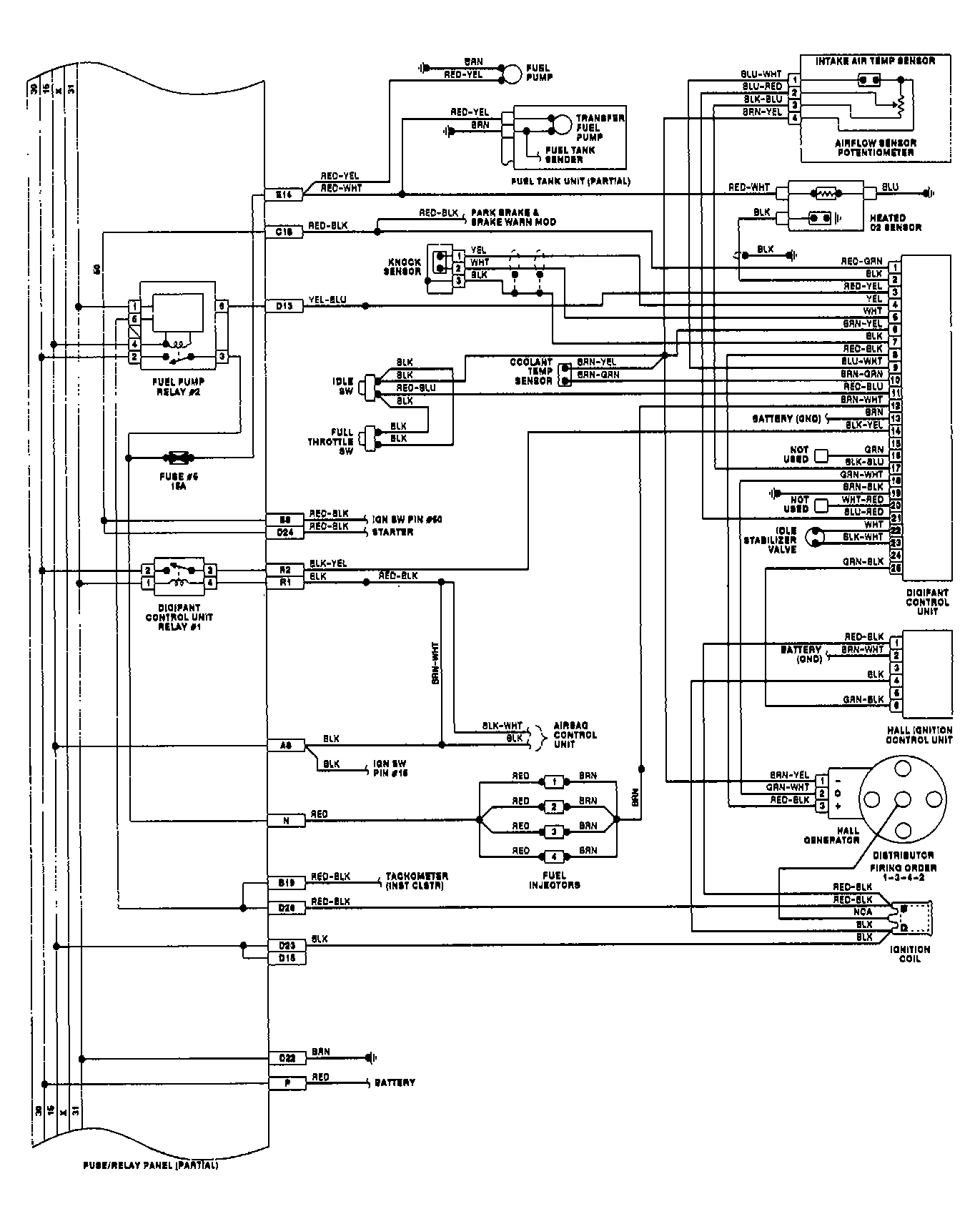

Fig 1: Cabriolet 1.8L Wiring Diagram

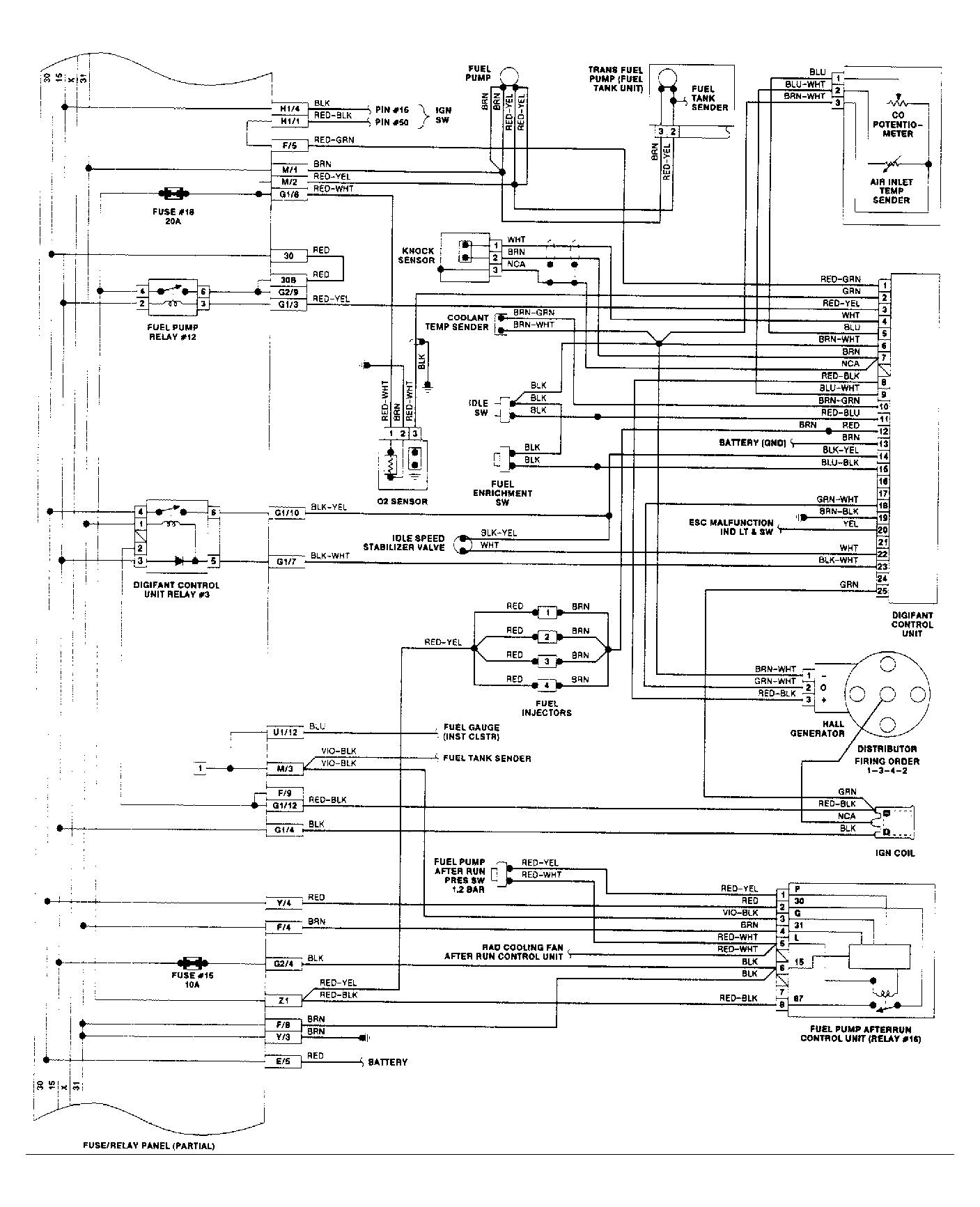

Fig 2: Corrado 1.8L Wiring Diagram

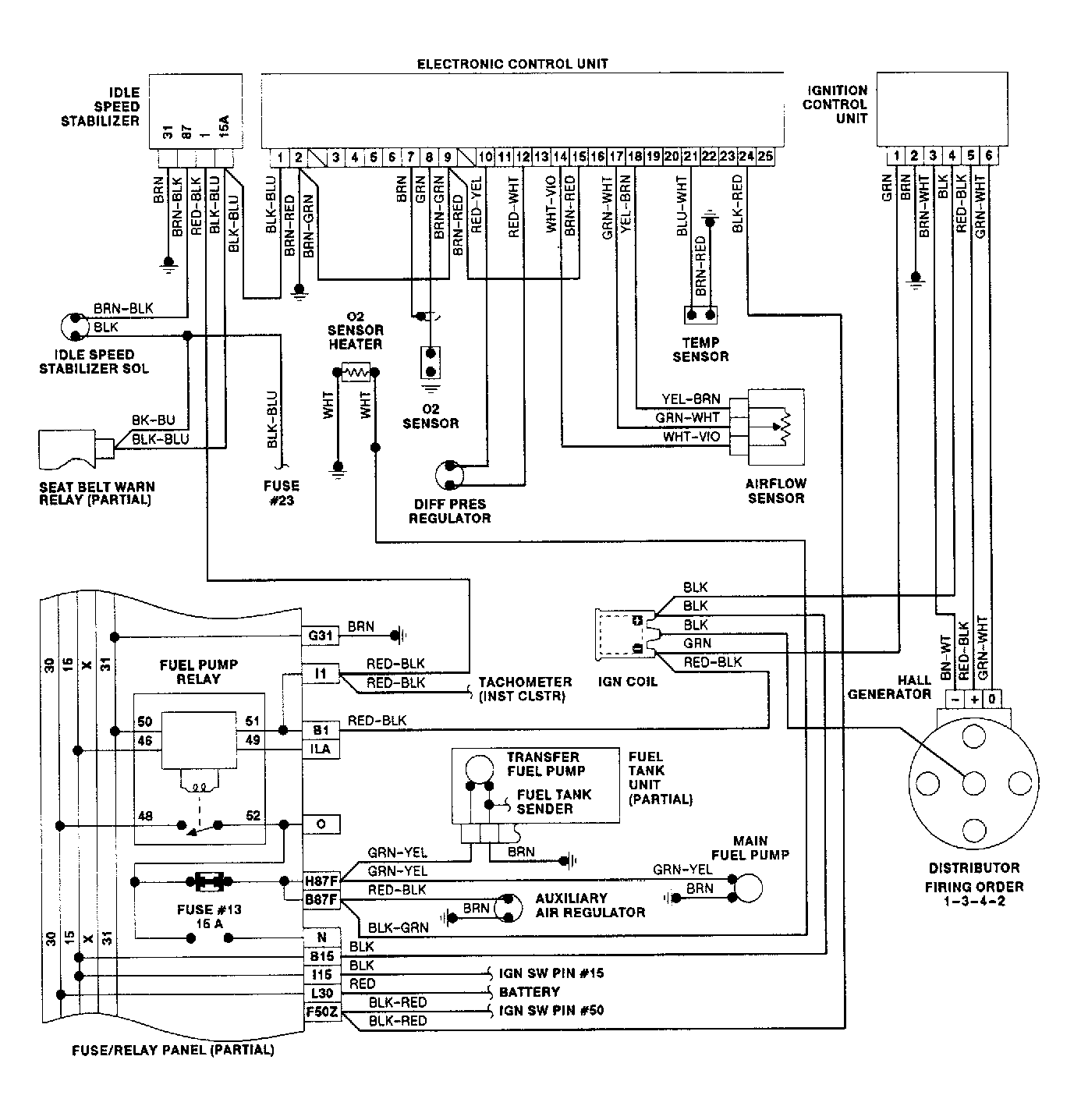

Fig 3: Fox 1.8L Wiring Diagram

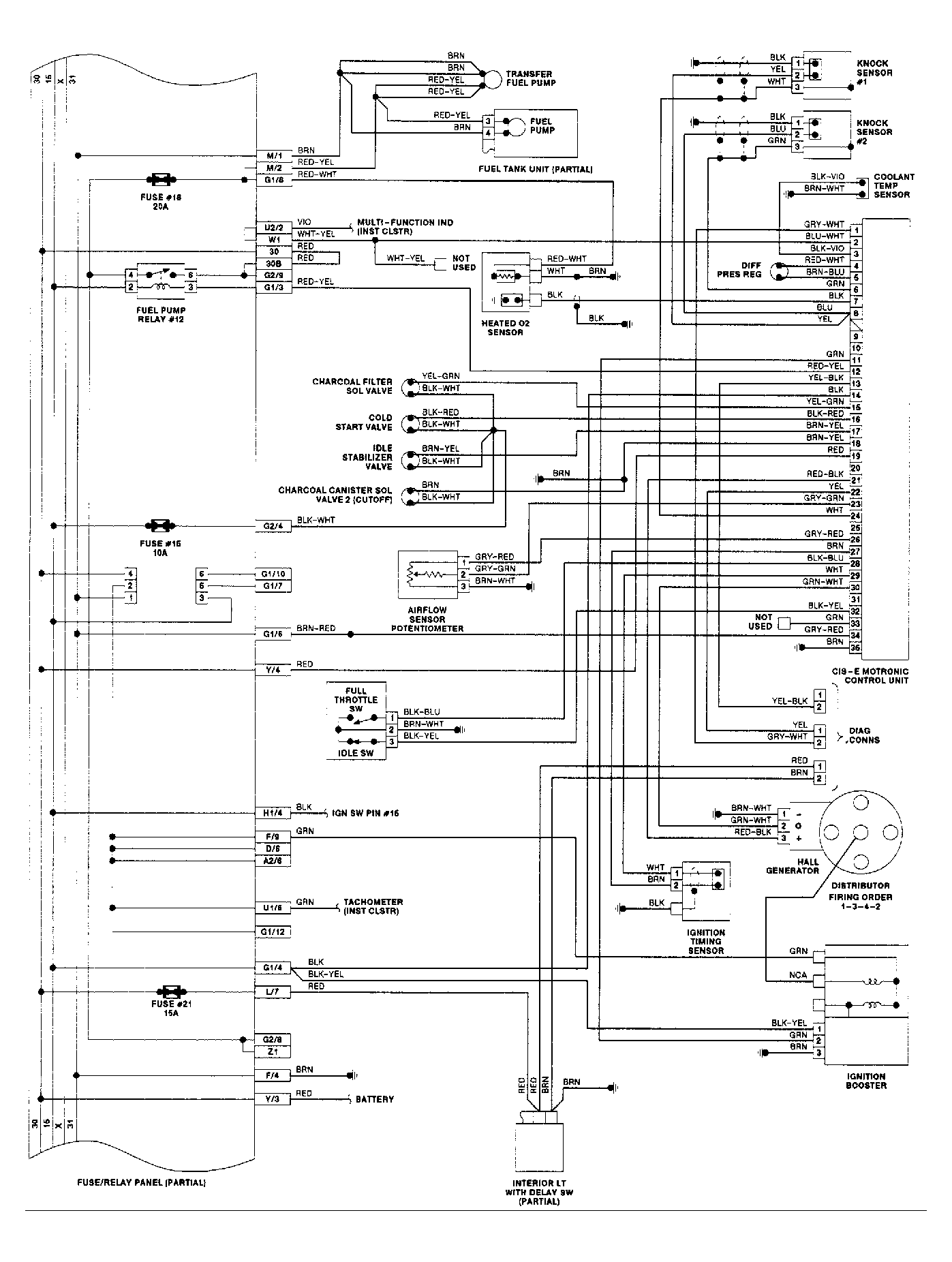

Fig 4: Golf GL, Golf GTI & Jetta 8-Valve 1.8L Wiring Diagram

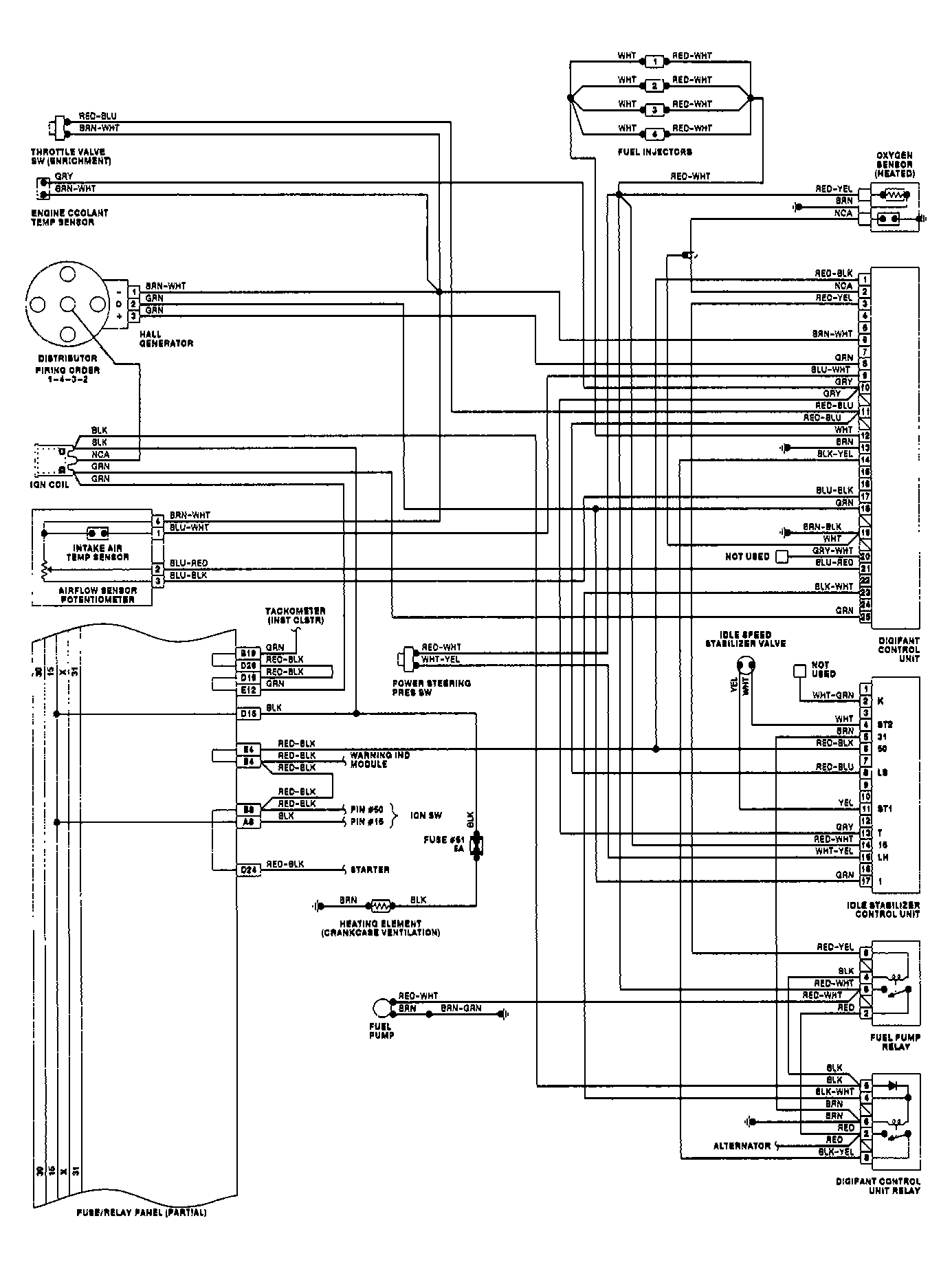

Fig 5: Jetta GLI 2.0L 16-Valve Wiring Diagram

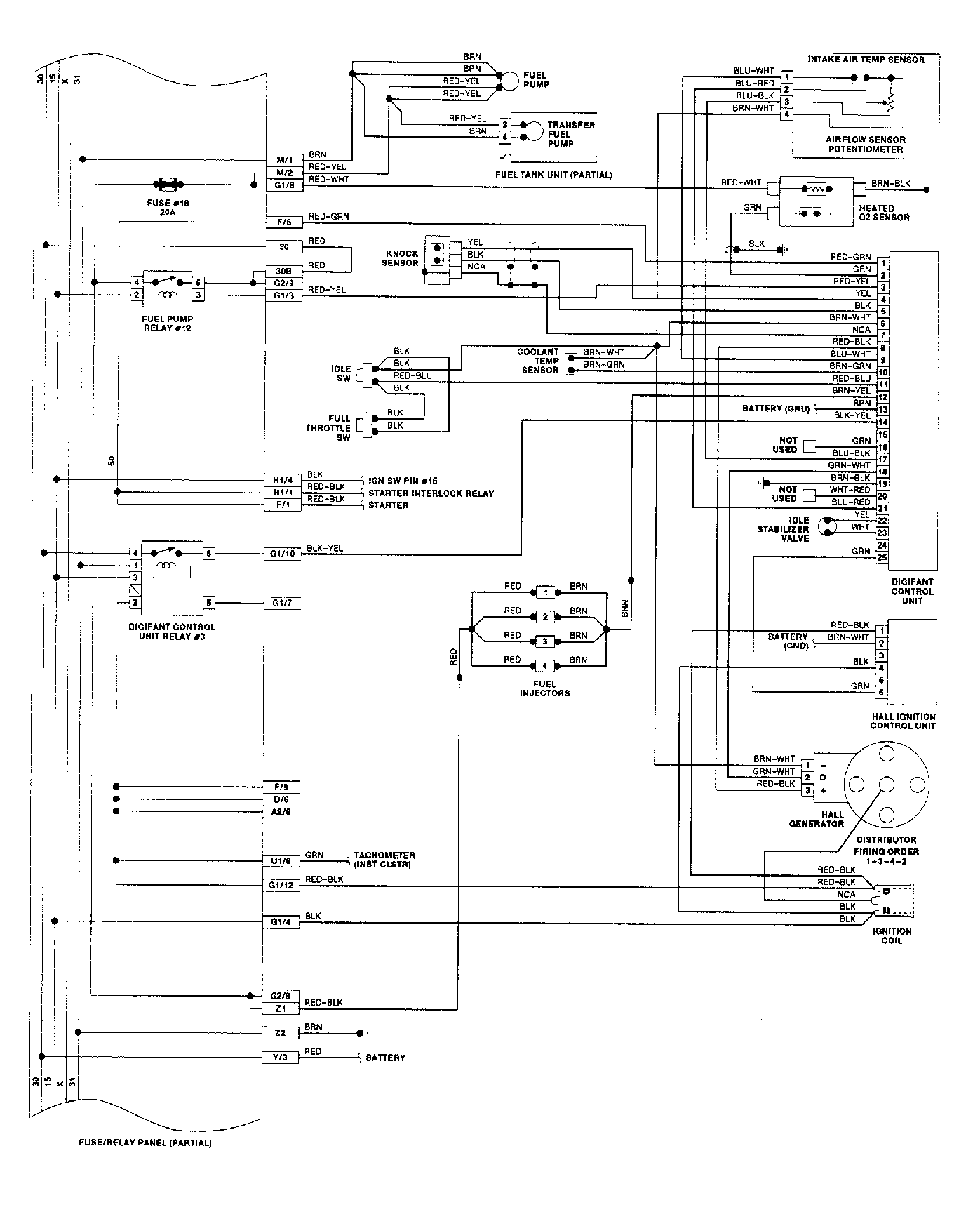

Fig 6: Vanagon 2.1L Wiring Diagram
