Identifying UNDERDASH Fuse & Relay Panel Components

Use following illustrations to identify underdash fuse and relay panel components, see Fig 1 -Fig 5 .

NOTE: Fuse and relay panel is located under dash, behind knee bolster.

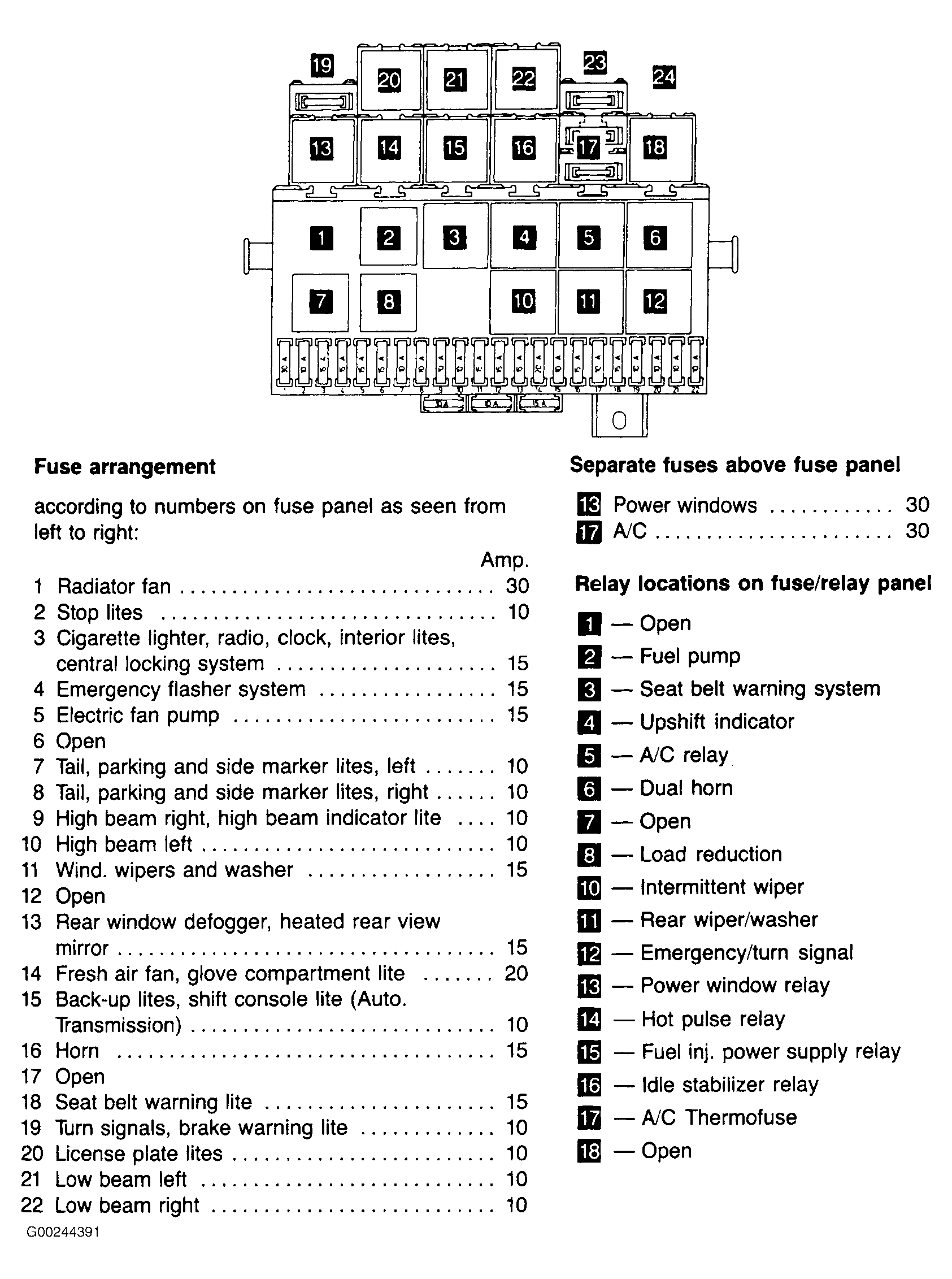

Fig 1: Identifying Underdash Fuse & Relay Panel Components For Cabrio & Jetta (1987-89)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: Fuse and relay panel is located under dash, behind knee bolster.

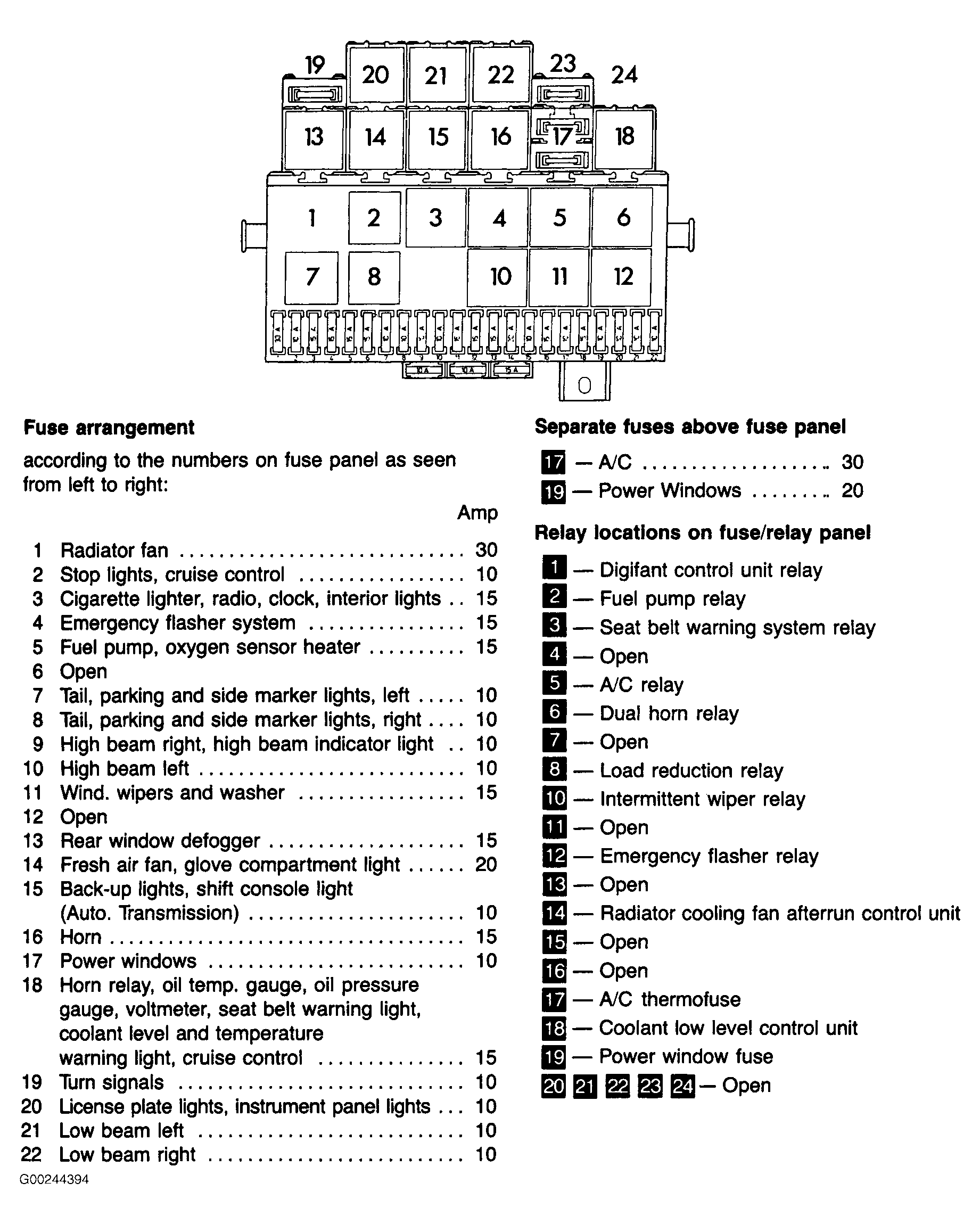

Fig 2: Identifying Underdash Fuse & Relay Panel Components For Golf & GTI (1987-89 8 & 16 Valve Models - 1 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: Fuse and relay panel is located under dash, behind knee bolster.

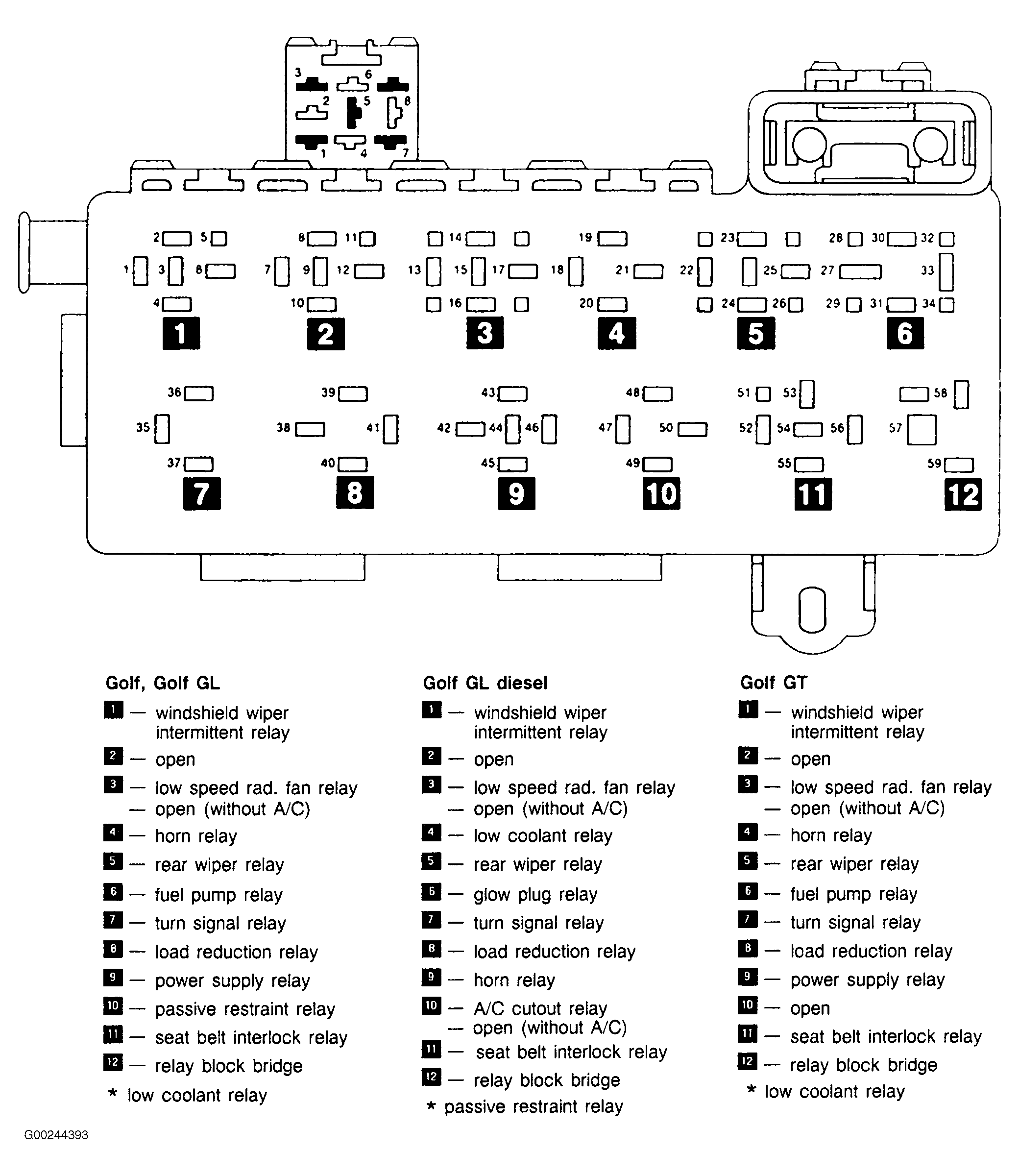

Fig 3: Identifying Underdash Fuse & Relay Panel Components For Golf & GTI (1987-89 8 & 16 Valve Models - 2 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: Fuse and relay panel is located under dash, behind knee bolster.

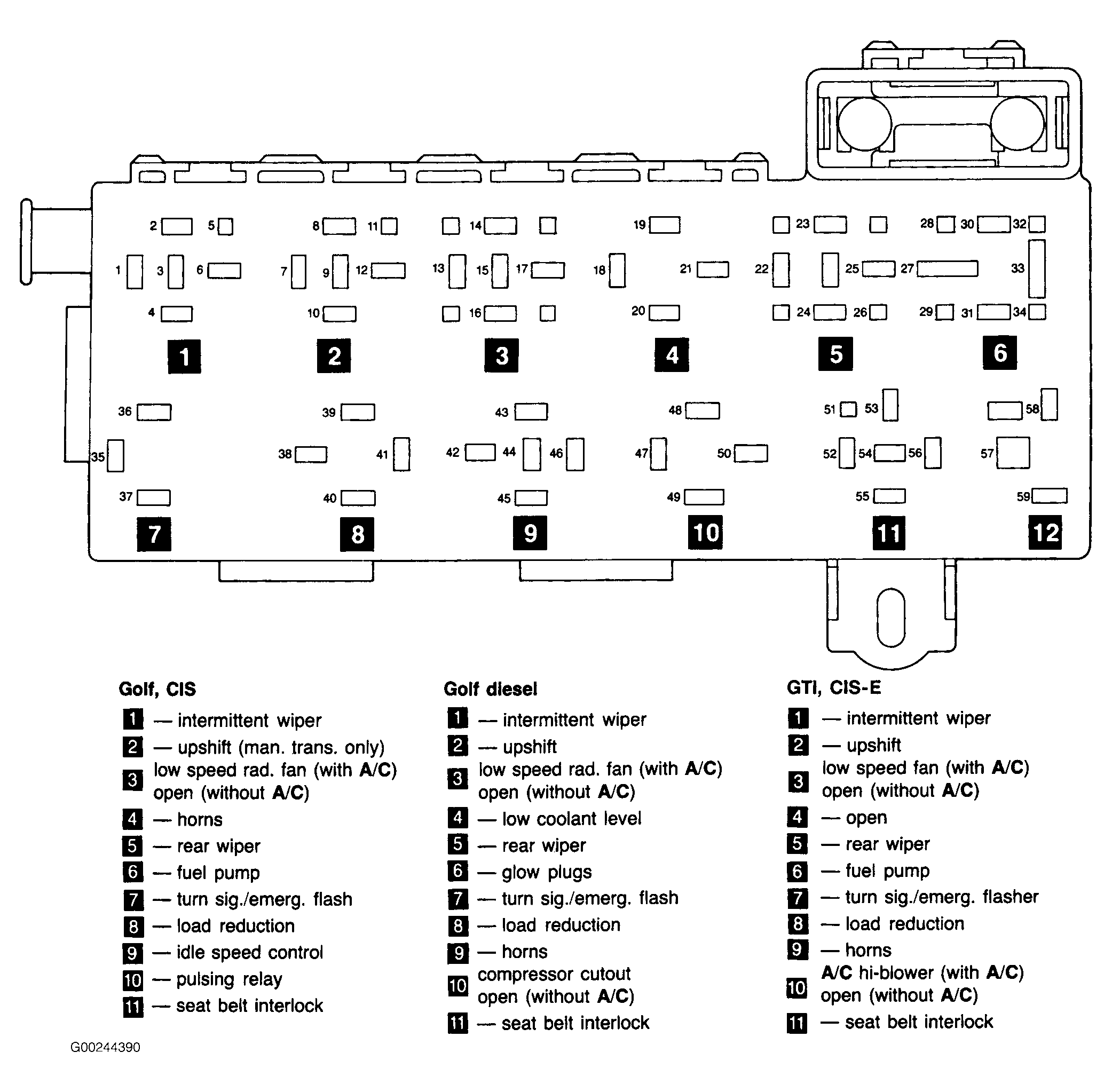

Fig 4: Identifying Underdash Fuse & Relay Panel Components For Cabrio (1990-91)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: Fuse and relay panel is located under dash, behind knee bolster.

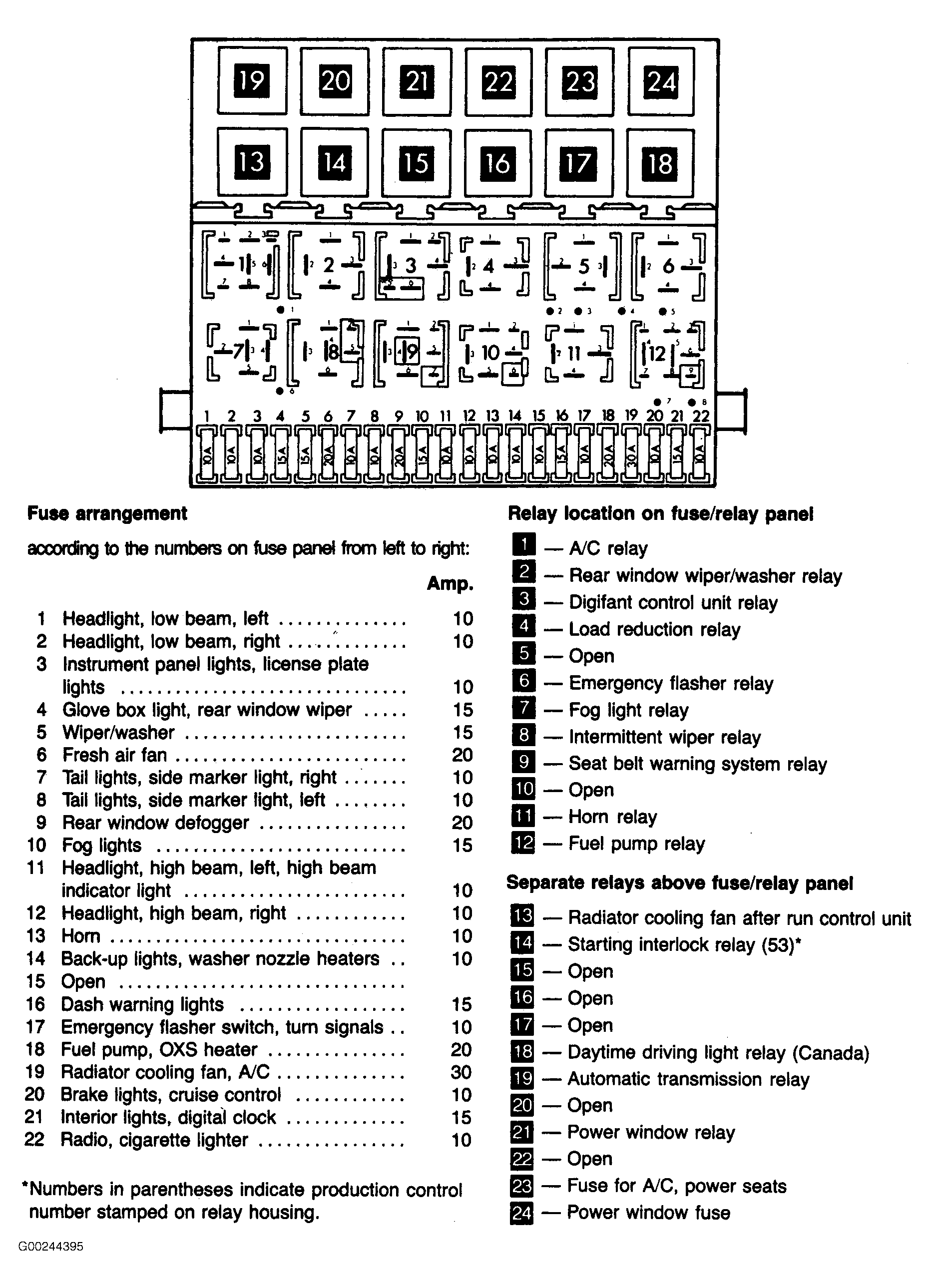

Fig 5: Identifying Underdash Fuse & Relay Panel Components For Golf, GTI & Jetta (1990-96) & Cabrio (1995-96)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
