Camshaft Timing Belt Service

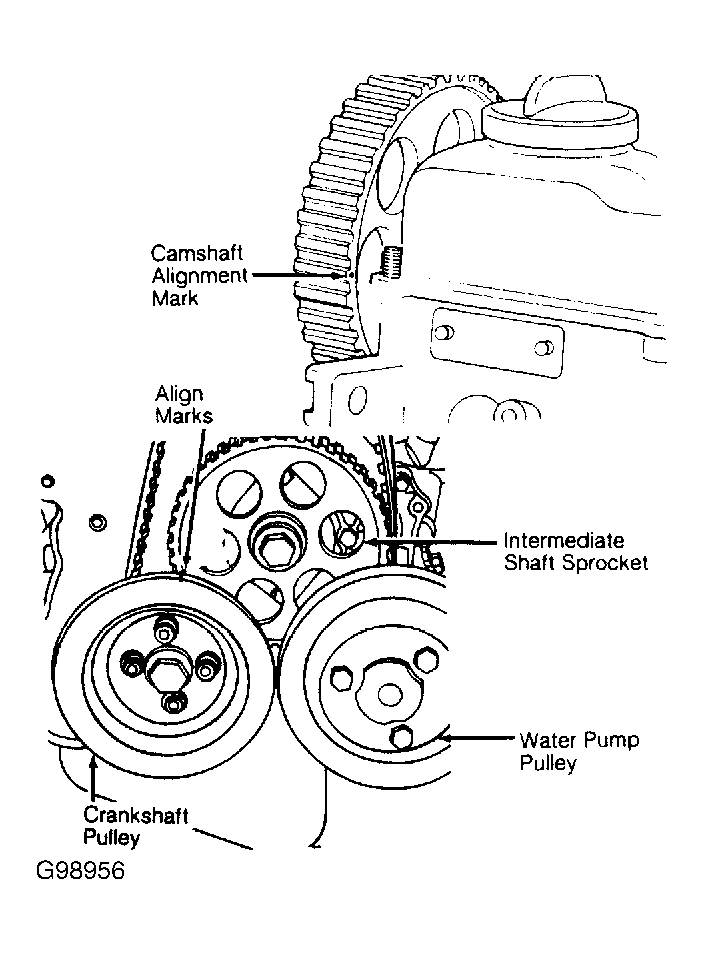

Fig 1: Aligning 1.8L Timing Marks (8-Valve)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: For more information on camshaft timing belt service refer to the 1.8L 4-CYL 8-VALVE & 2.0L 4-CYL 8-VALVE & 16-VALVE article in the ENGINE MECHANICAL section.
