Identification - Connector

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 1991 Oldsmobile Toronado, 1991 Cadillac Seville, 1991 Cadillac Eldorado, 1991 Buick Riviera, and 1991 Buick Reatta. However, it is still accessible from the selected car via links, so may be relevant.

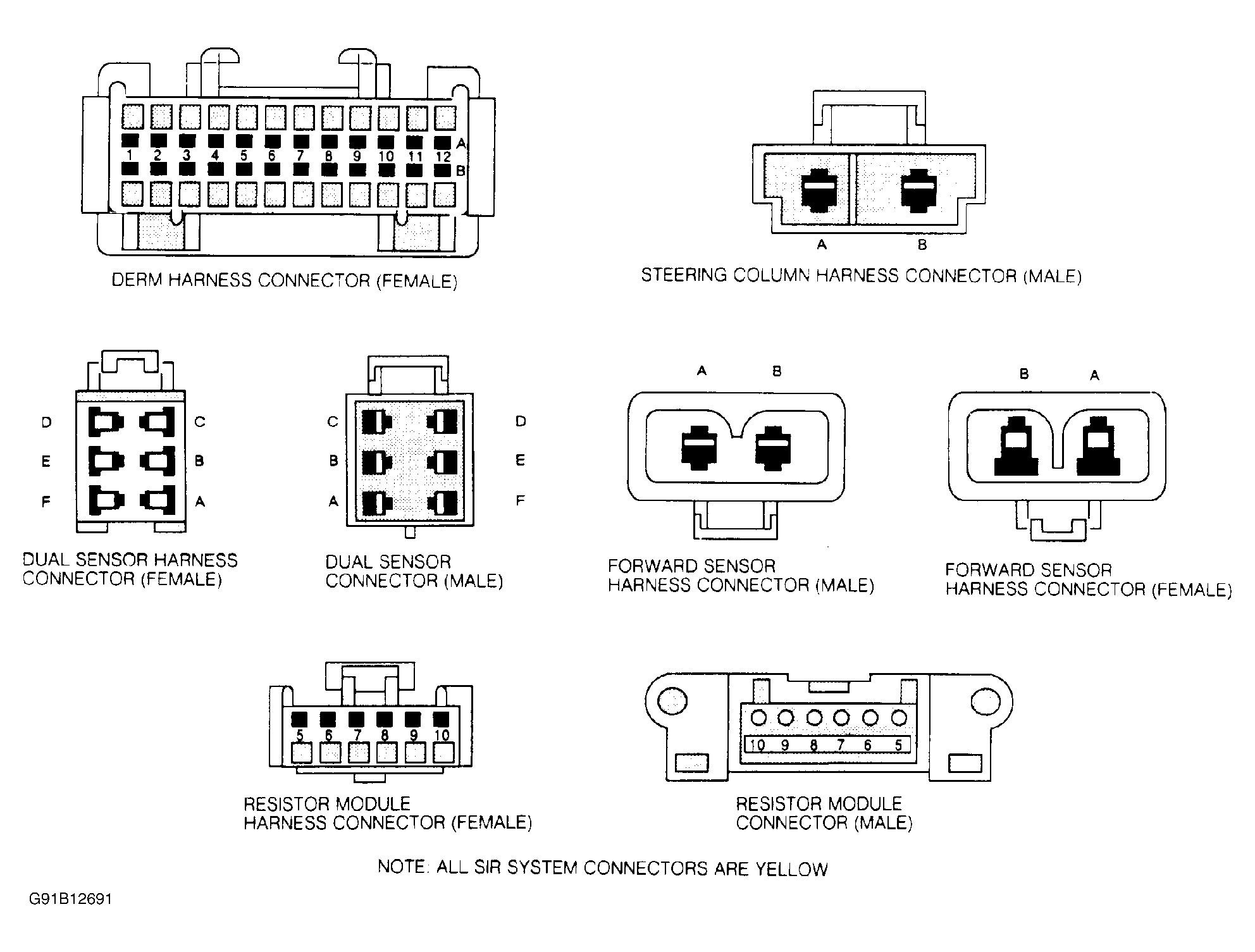

Fig 1: SIR Wiring Connectors Face Views
G91B12691Courtesy of GENERAL MOTORS CORP.
