Emission Control Systems: Diagrams

DIGIFANT II




Vacuum Hose Layout Manual Transmission

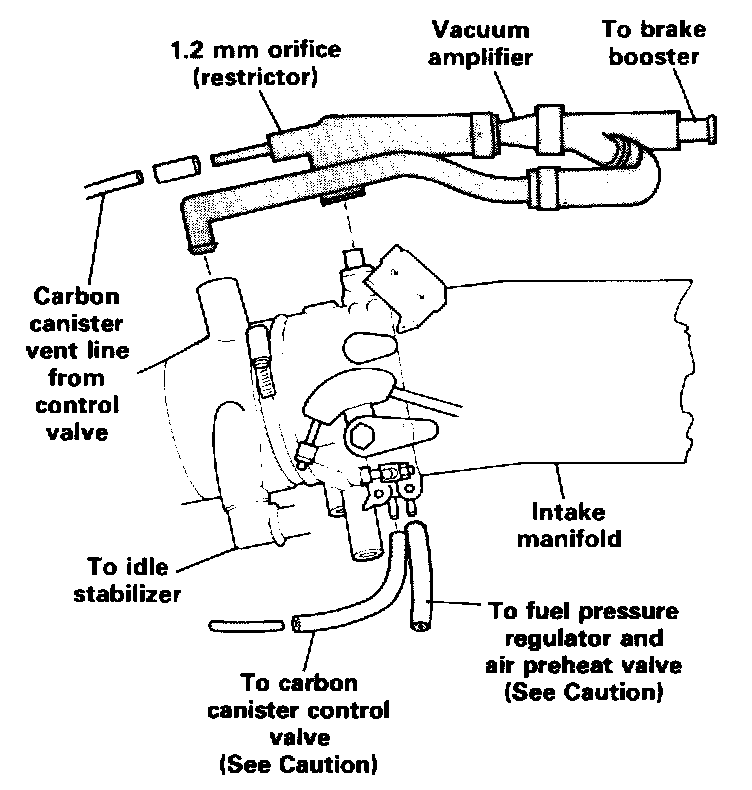

Vacuum Hose Layout Automatic Transmission

Caution: It is important that these two vacuum hoses are not reversed.

Vehicles with the Digifant II fuel system equipped with an automatic transmission use a vacuum amplifier. The purpose of the amplifier is to increase vacuum to the brake booster at. idle.

On both automatic and manual transmission equipped vehicles, the carbon canister vent line is not disconnected when checking or adjusting CO content.
