Engine Control Module: Locations

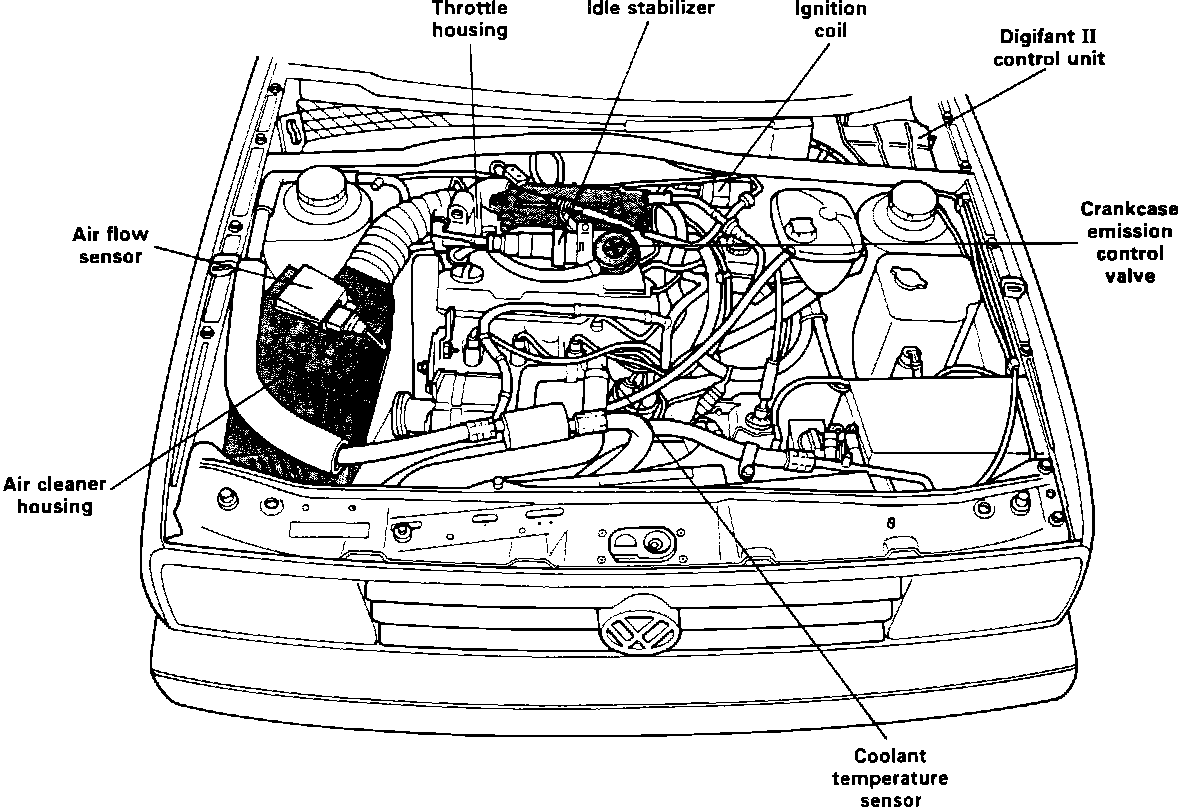

Component Locations:





The Digifant II control unit is located at the left rear of the engine compartment under the drip tray.
