Computers and Control Systems: Description and Operation

DIGIFANT II

General system schematic

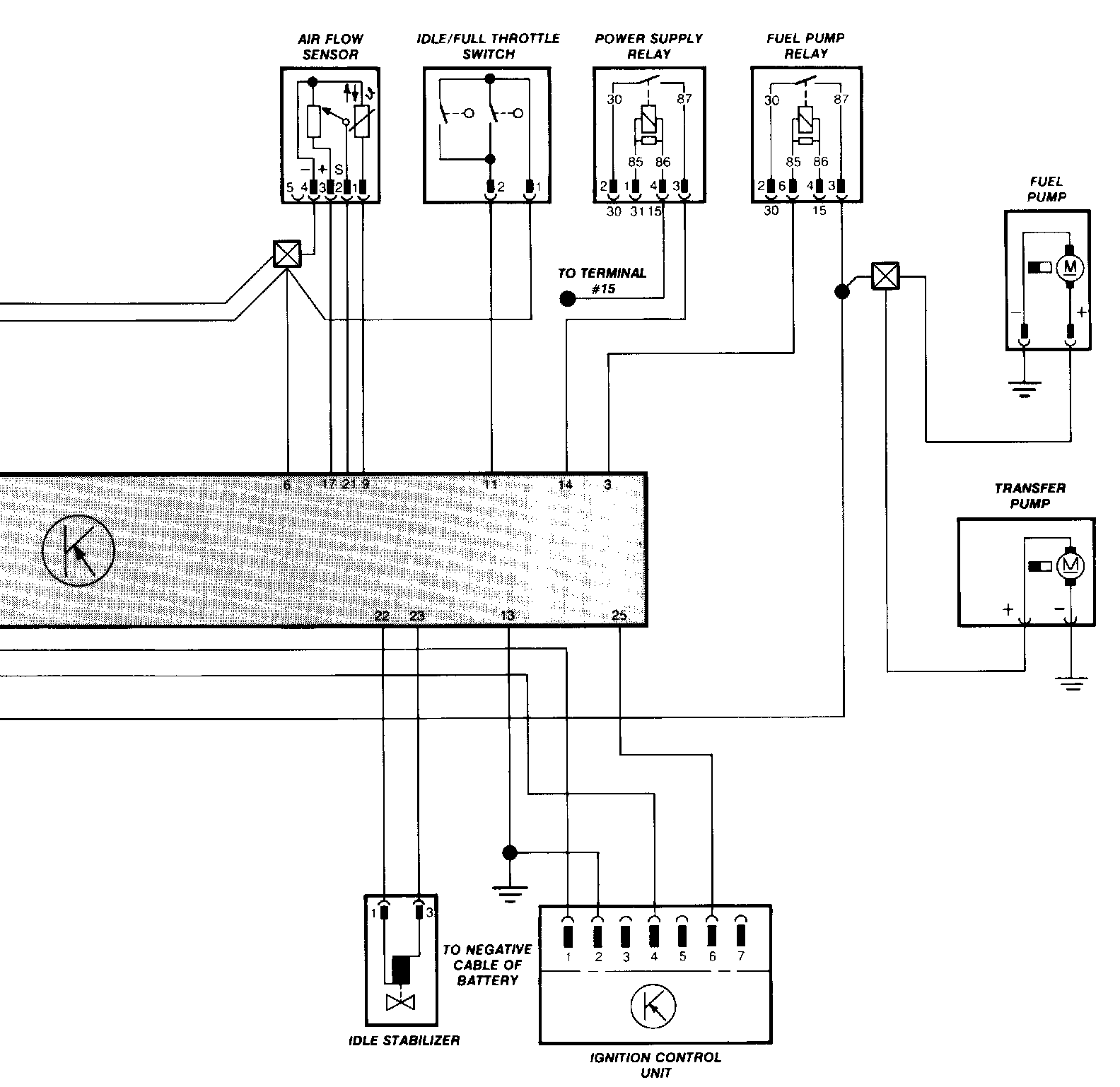

Golf Wiring 1 Of 2:




Golf 1 of 2

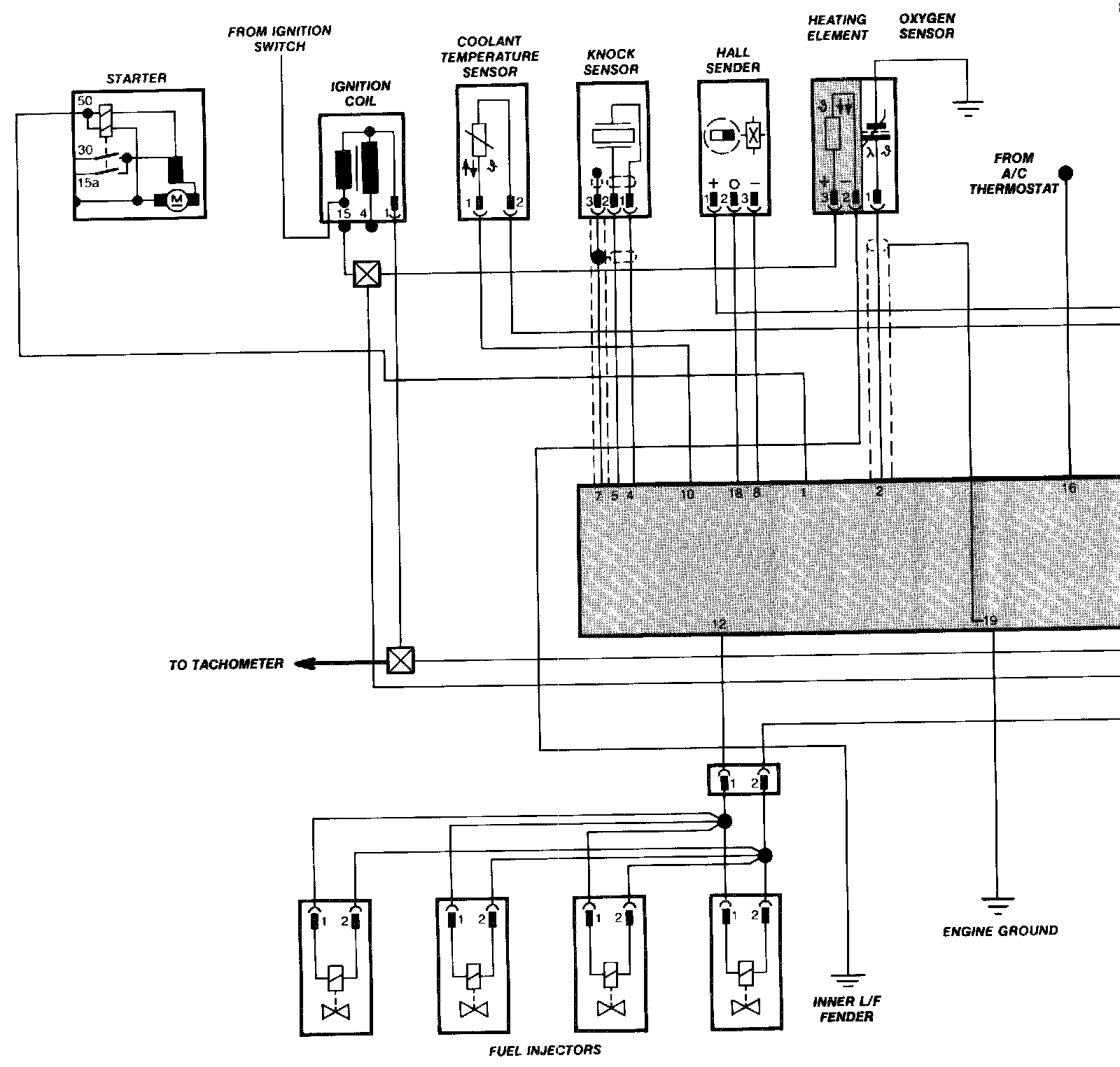

Golf Wiring 2 Of 2:




Golf 2 of 2
