Front Suspension: Description

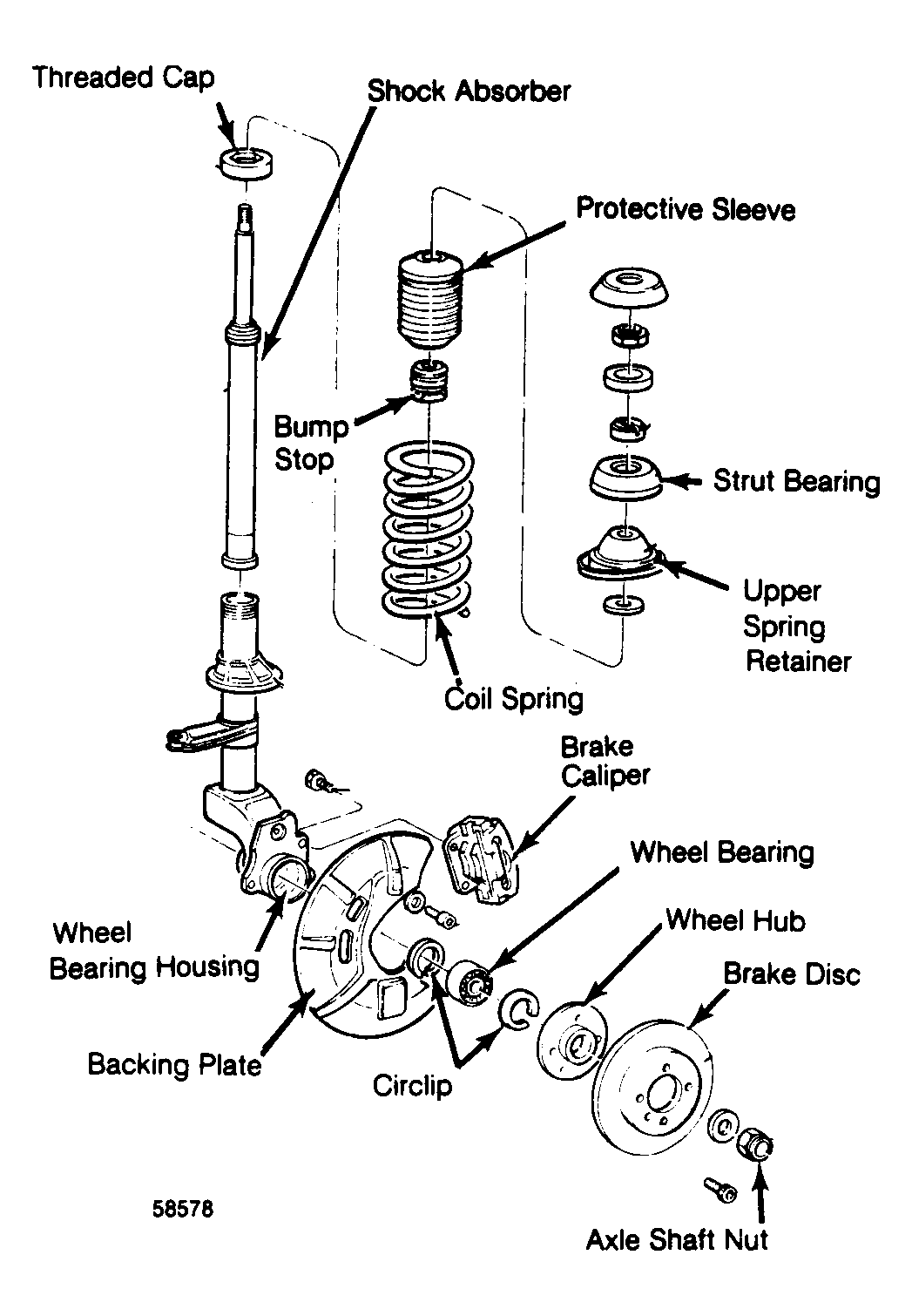

Vehicles are equipped with front wheel drive and MacPherson strut independent front suspension. Wheel bearing housings and lower strut tubes are a one piece unit, and are supported by lower control arms. Tie rods are connected to lower strut tube, and stabilizer bar are connected to lower control arm. See Figure .
