Engine Assembly



ENGINE ASSEMBLY

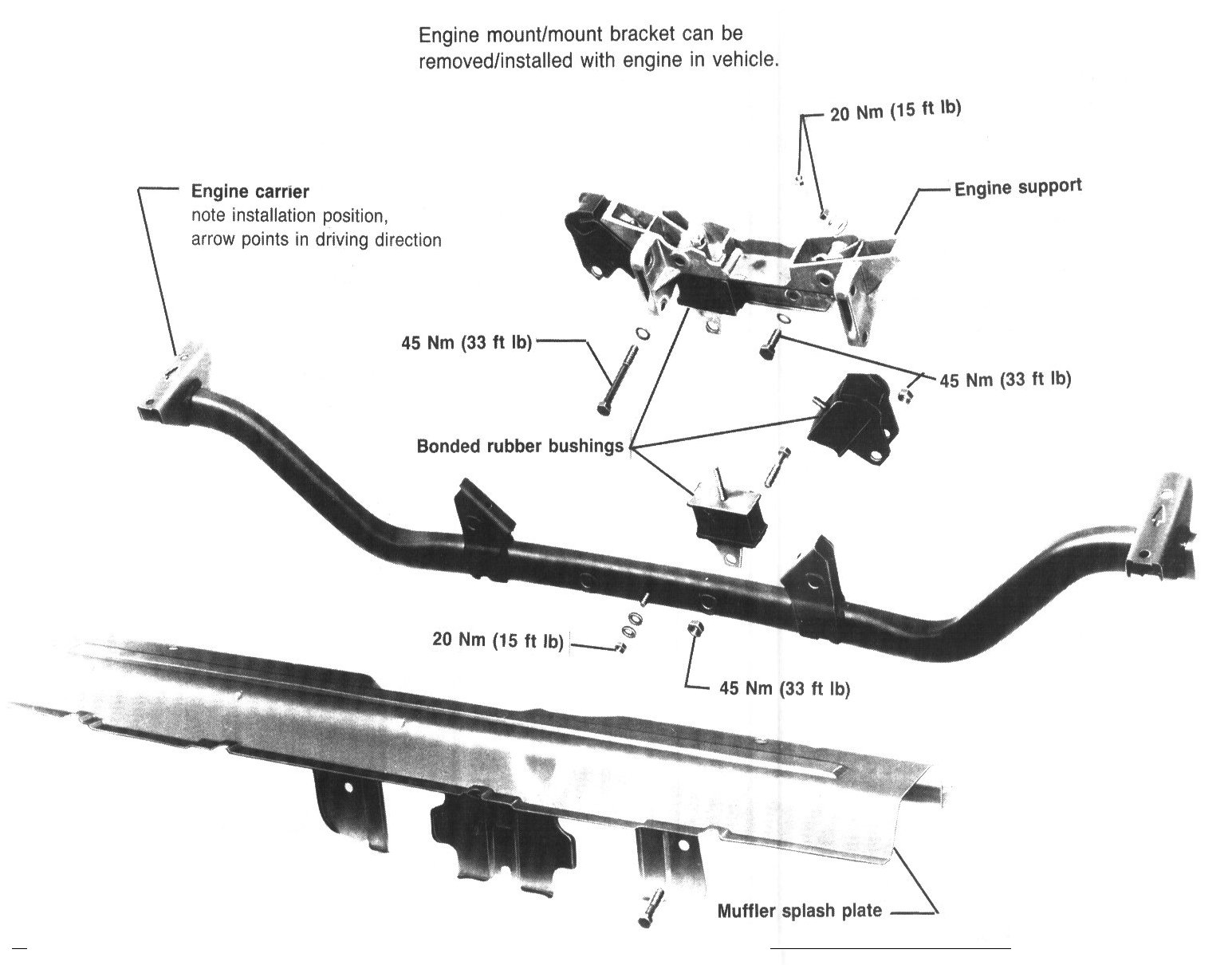

NOTE: Arrows on carrier must point to front of vehicle when reinstalling. Remove carrier as complete assembly





Water-cooled-from 1986













Engine, Carrier/support
