Manual Transmission/Transaxle
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

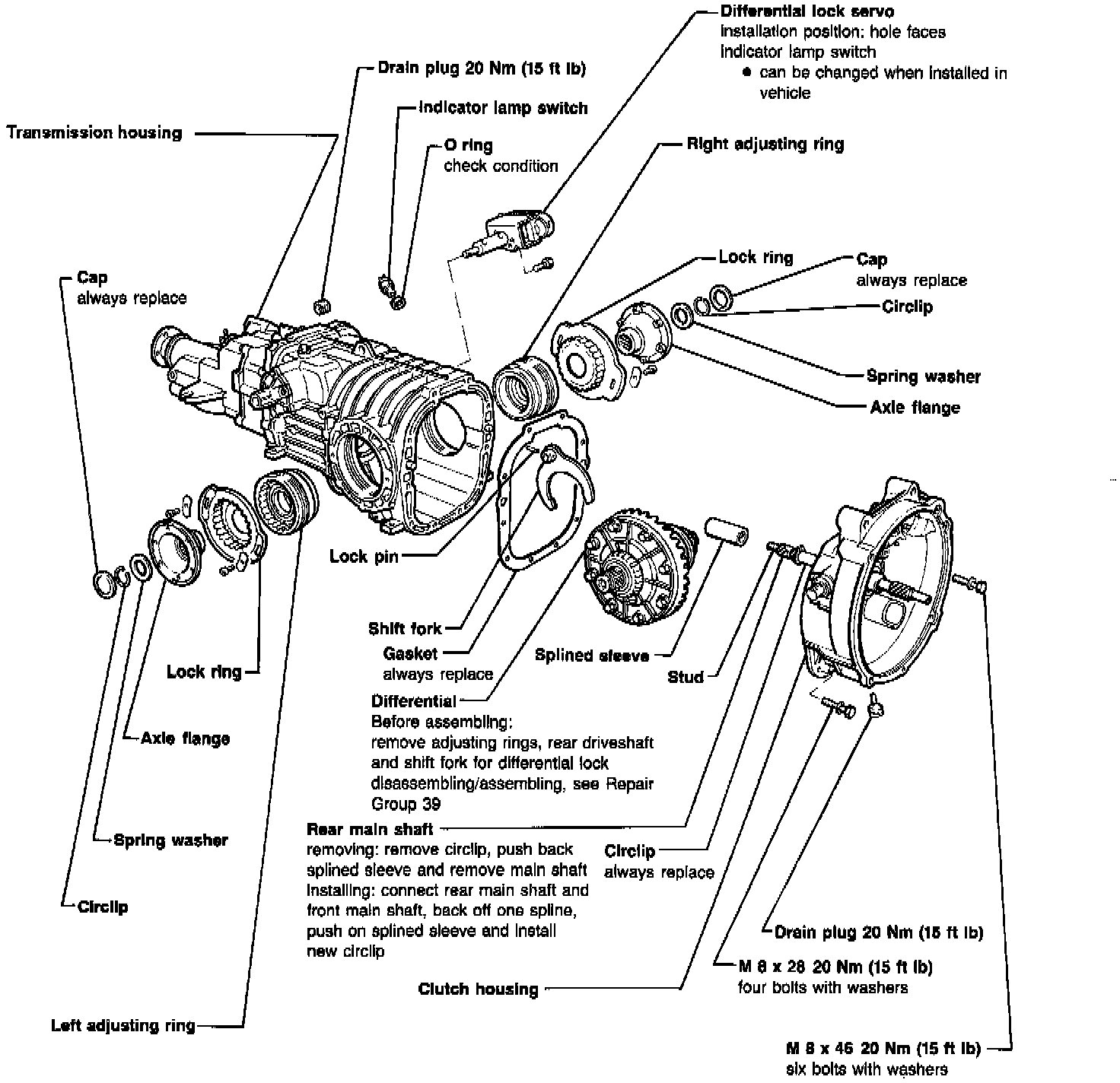

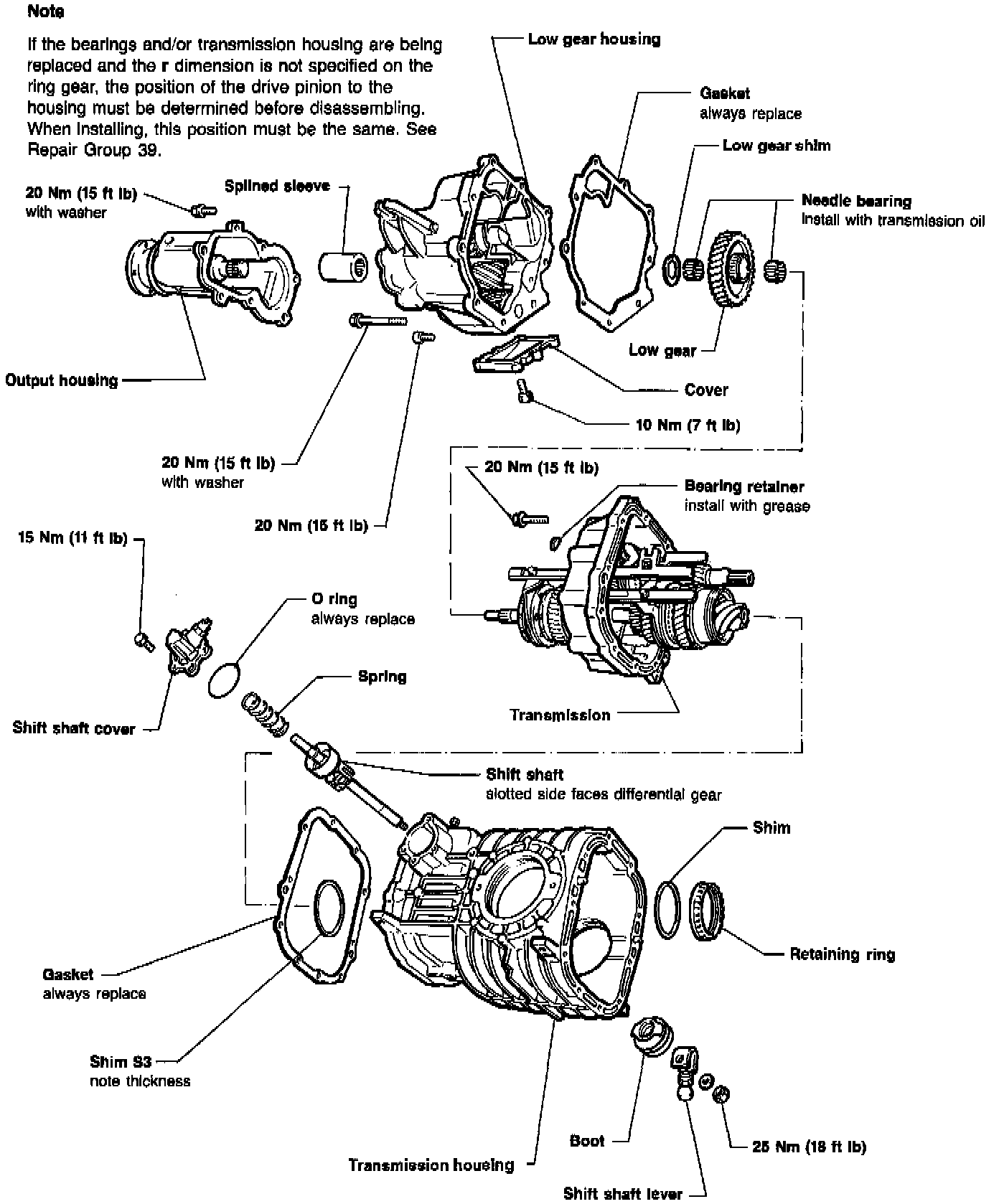

System Diagram
