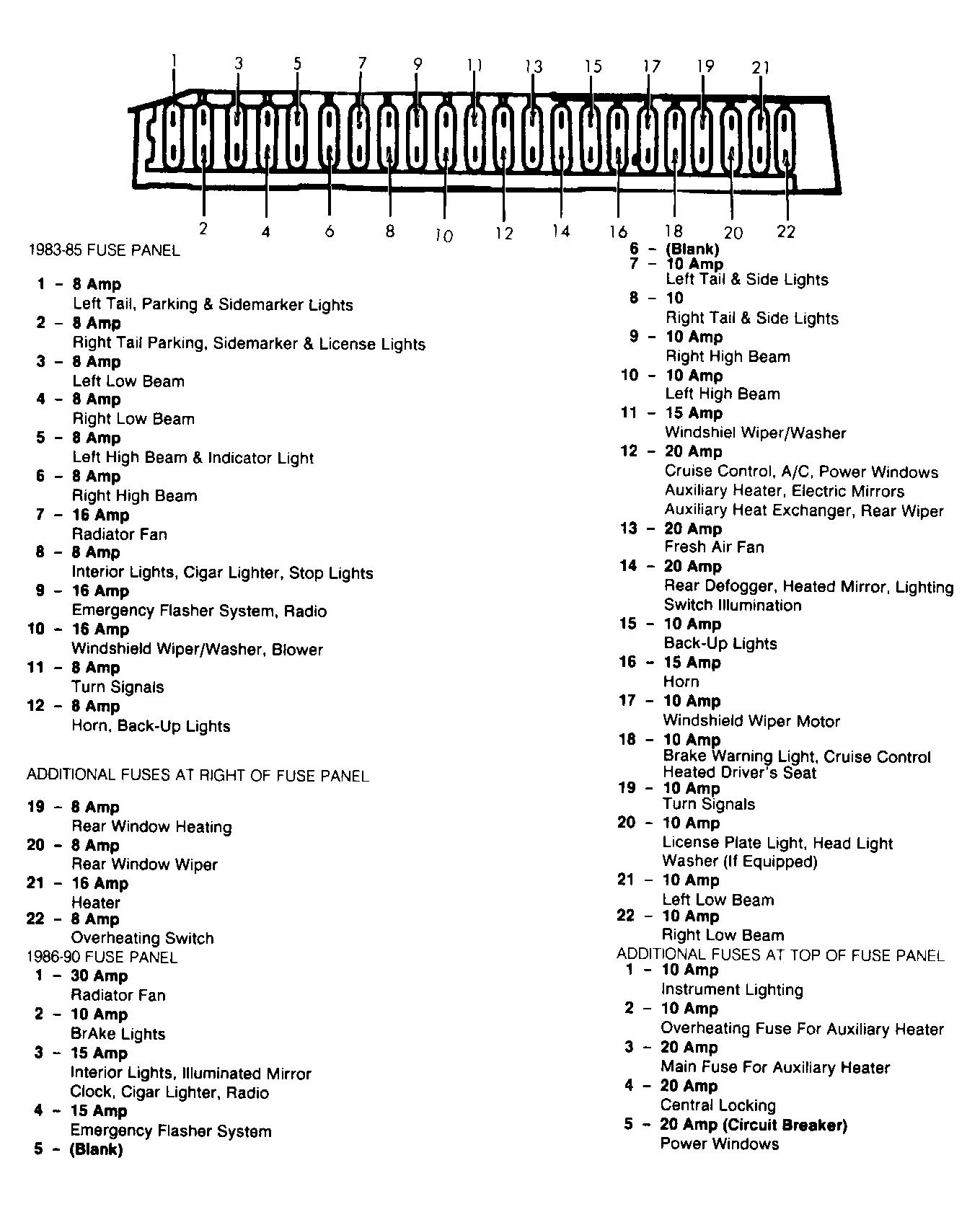

Fuse Panel Identification
The fuse panel is located on the left side under the dash board behind a cover. On 1983-85 vehicles, additional fuses are located at the right side of the panel. On 1986-90 vehicles there are additional fuses in separate holders above the fuse box. On camper equipped vans there is a small fuse box located on the door post behind the driver's seat just below the seatbelt retractor reel housing.
