Fuse Block: Locations

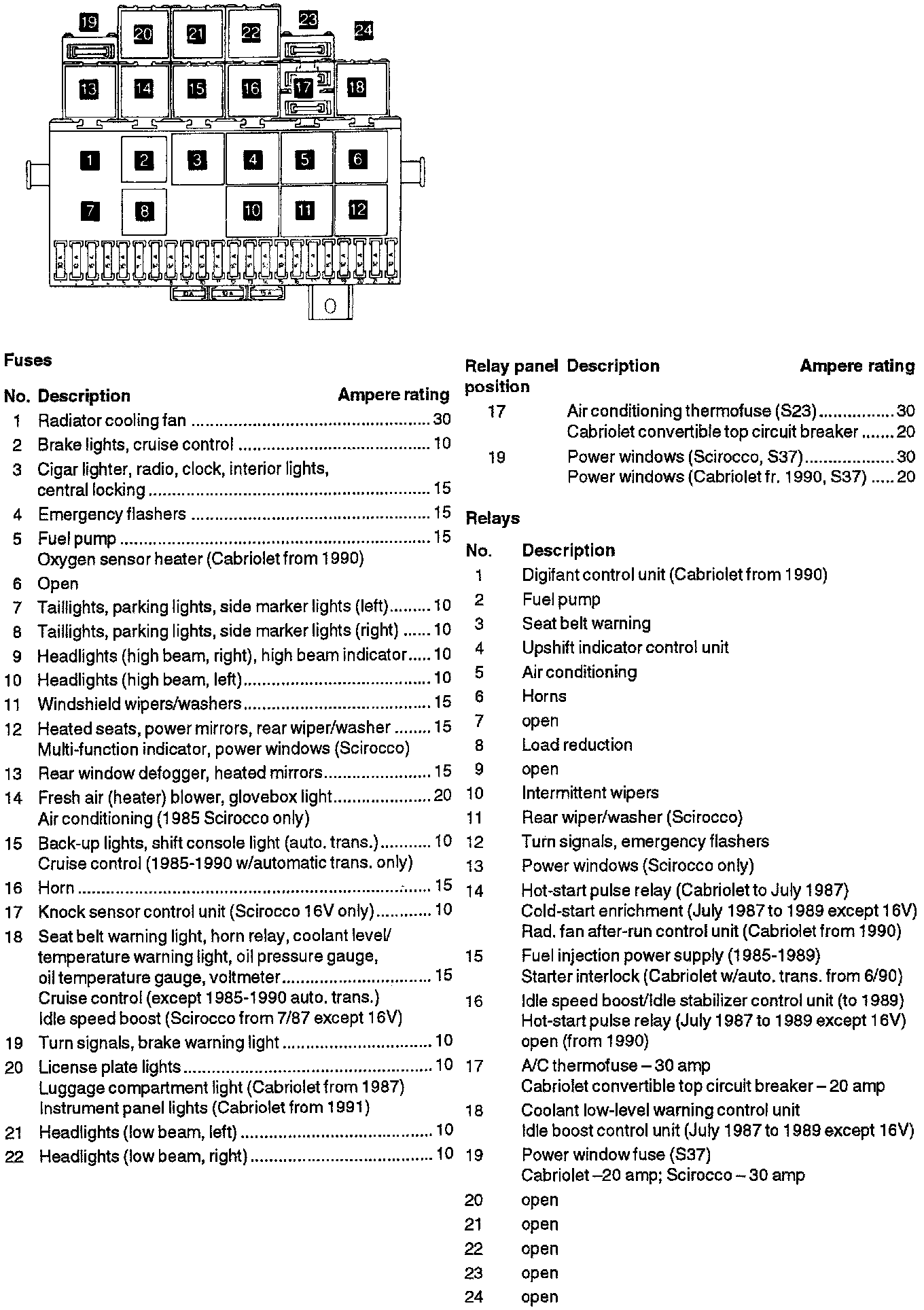

Fuse and Relay Panel:




The fuse/relay panel is located under the left side of the instrument panel behind the kneebar.
