Gearshift Linkage: Scirocco

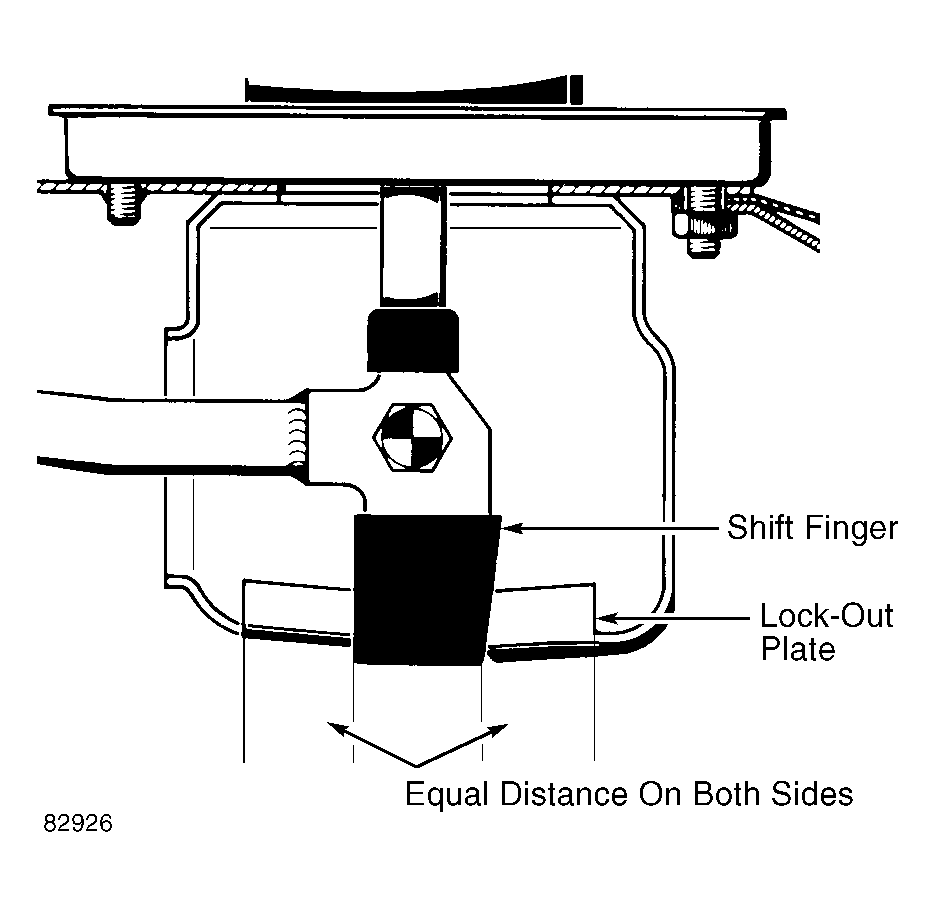

- Pull boot off housing. Loosen shift rod clamp bolt so lever moves freely on shift rod. Adjust shift finger in center of lock-out plate so that an equal distance is obtained on both sides of shift finger. See Fig 1
.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
- Adjust shift rod end so distance "A" is 9/16" (15 mm). See Fig 2
. Tighten shift rod clamp to 14 ft. lbs. (20 N.m). If shift linkage is spongy or jamming after adjustment, change distance "A" to 1/2" (13 mm). If shift linkage will not stay adjusted, install a new clamp bolt and lock nut.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
