Engine Oiling System

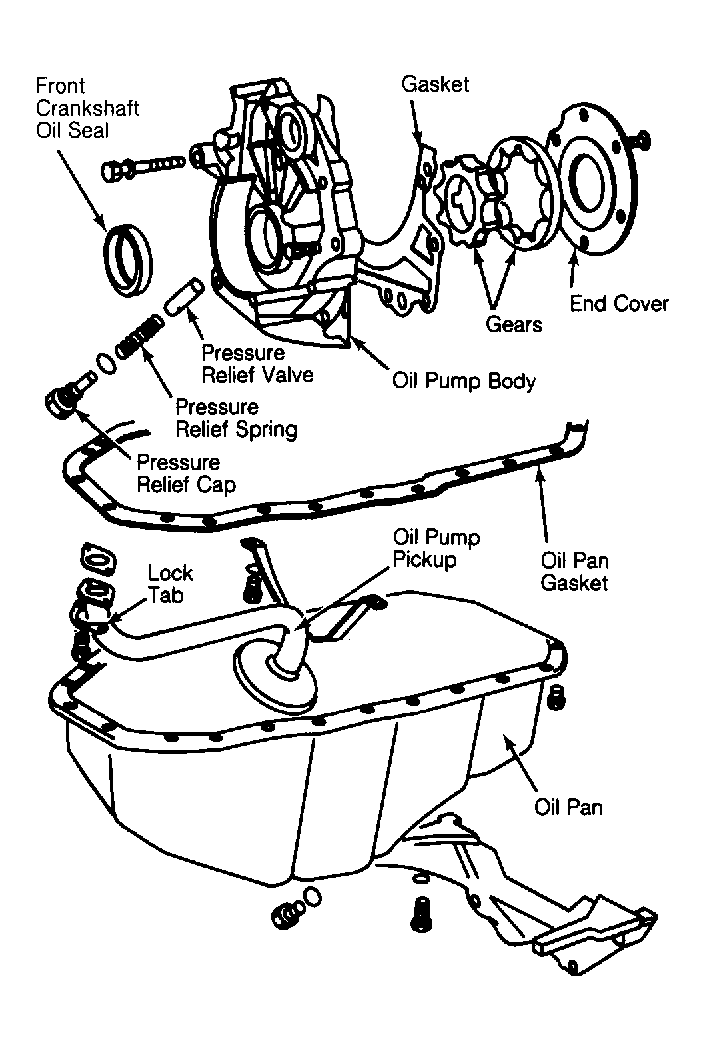

Slipper gear-type pump is used. Oil pump is mounted at front of engine and driven by crankshaft. See Figure. Oil is lifted from pan by oil suction tube, which extends from oil pump. Oil is then fed to internal engine moving parts. Lubrication is either by pressure feed or drainage method.
