Bench Testing: Stator
- Check stator for short circuits. If one or more coils are burned, stator may be shorted.

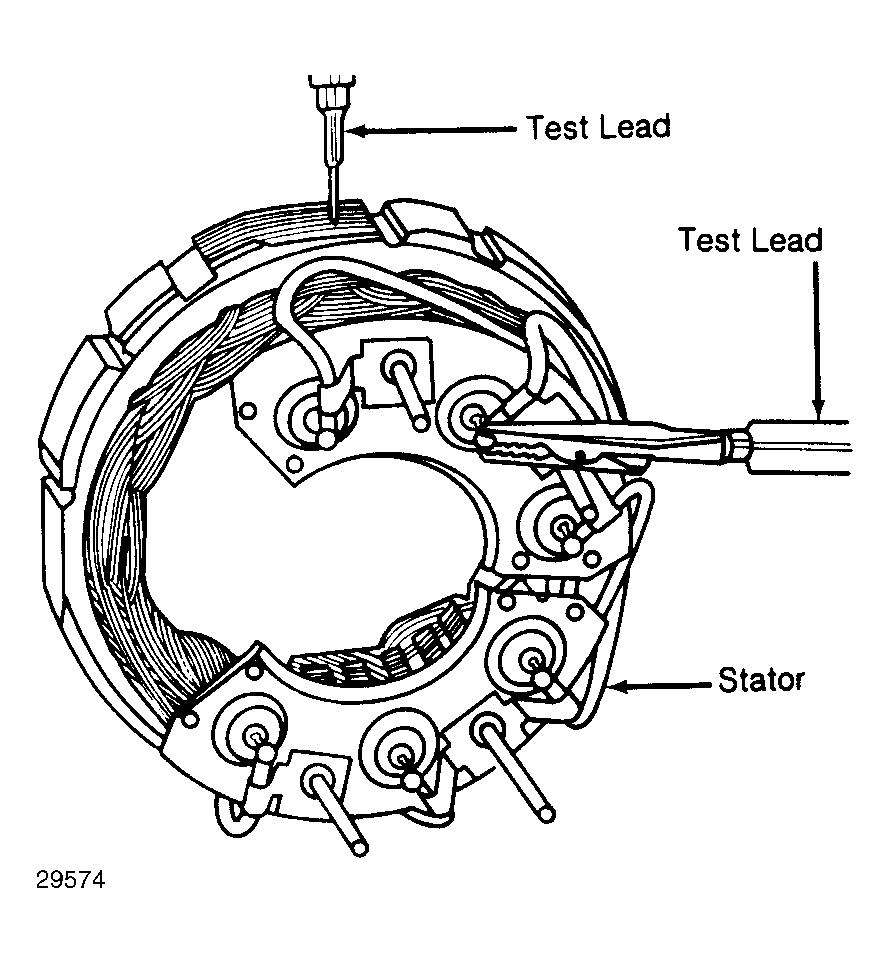

- Connect a self-powered low voltage test light between stator plates and stator terminal. If light illuminates, insulation between stator winding and stator plates is defective and stator should be replaced.
CAUTION:
Use only specified test light. Do not use 110 or 220-volt test light on this or any other alternator test procedure.
