Hall Effect Sensor: Service and Repair

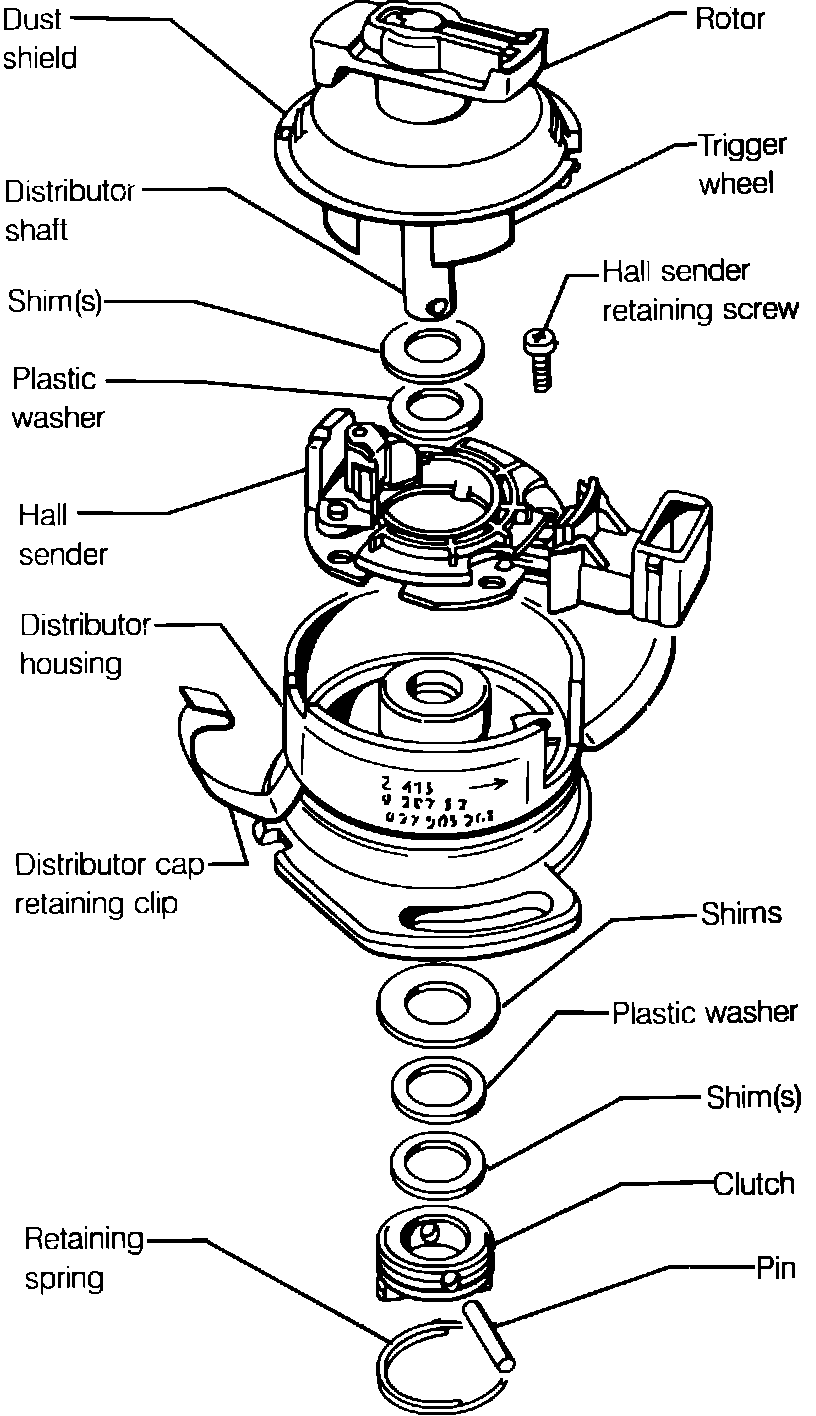

Fig. 4 Exploded View Of 16V Distributor:

1. Use a thin drift or punch to drive out the retaining pin in the drive clutch.
2. Pull the shaft, rotor, trigger wheel assembly out through the top of the distributor.
