Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

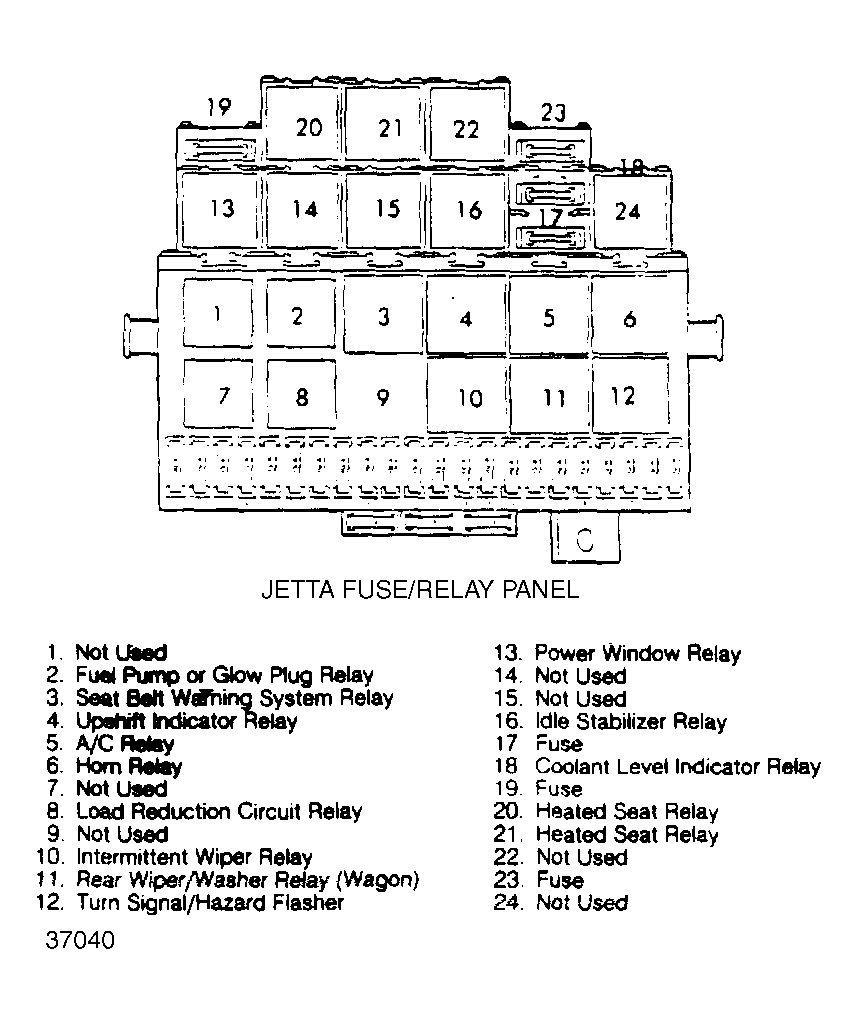

A/C Fuse On fuse/relay panel. See Figure .
Fuse/Relay Panel Under left side of dash.
Power Window Fuse On fuse/relay panel. See Figure .
