Mixture Control Unit

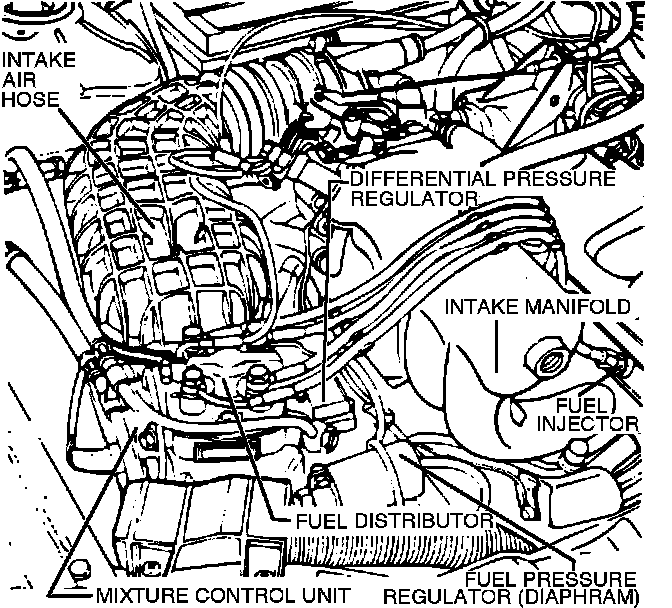

Fuel Component Location:




Mixture Control Unit:





The Mixture Control Unit is located on the right side of the engine compartment forward of the shock tower. The Mixture Control Unit consists of the air flow sensor, air flow sensor housing and the fuel distributor.
