Fuse Block: Locations

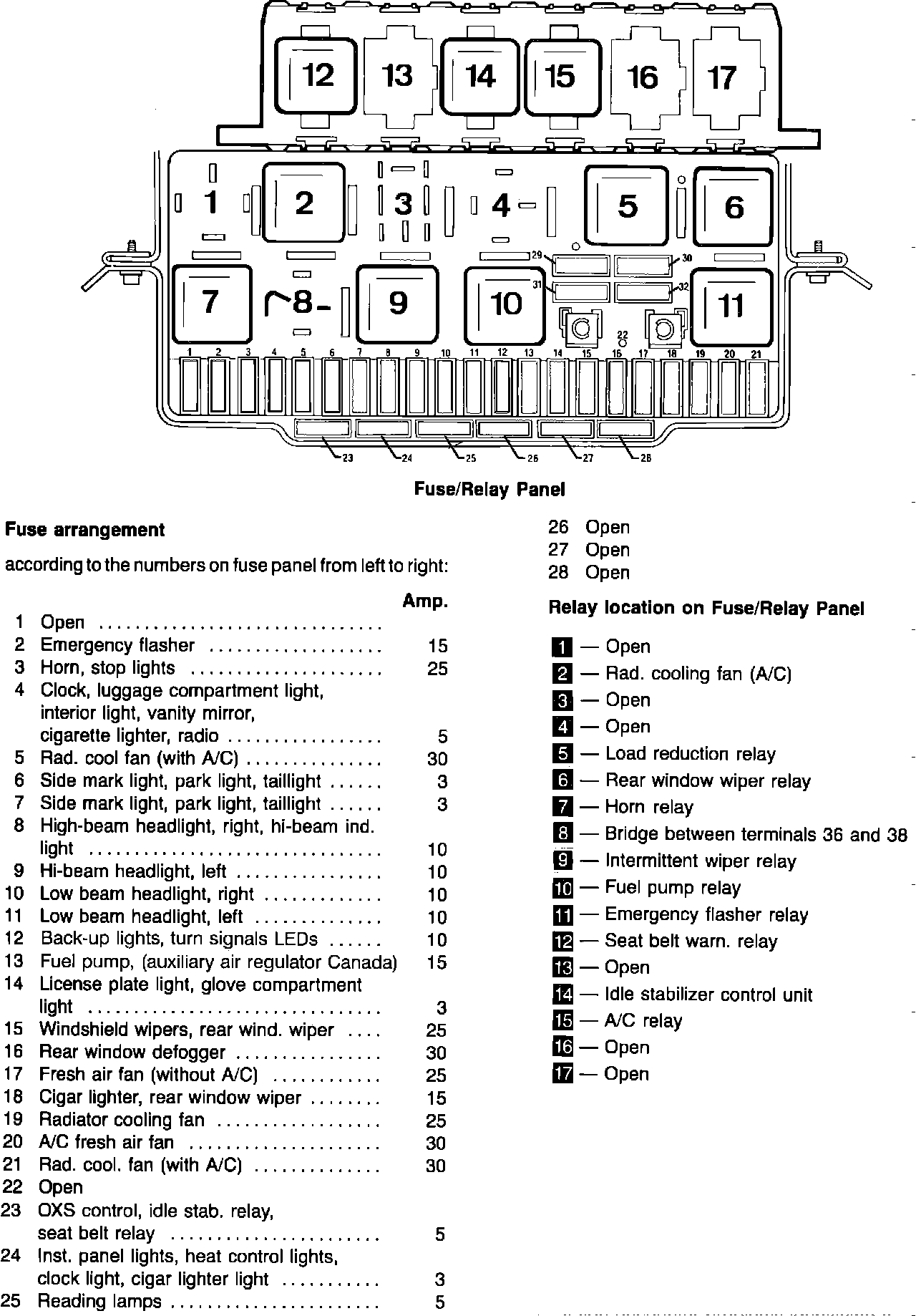

Fig. 8 Fuse/Relay Panel, Fox:





Below Left Side Of The Instrument Panel, In Storage Bin.
