Compressor Clutch: Locations

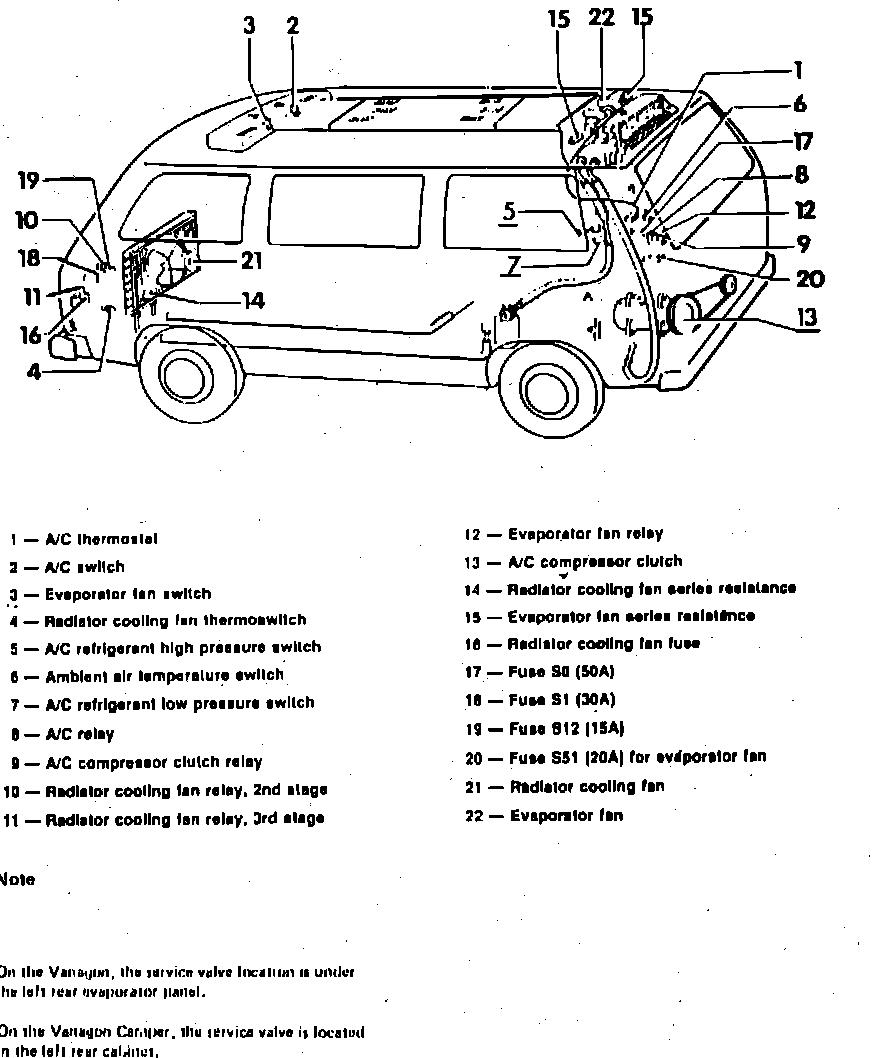

Air Conditioning Components.:

At A/C Compressor In Engine Compartment

Applicable to: 1986 Vanagon
